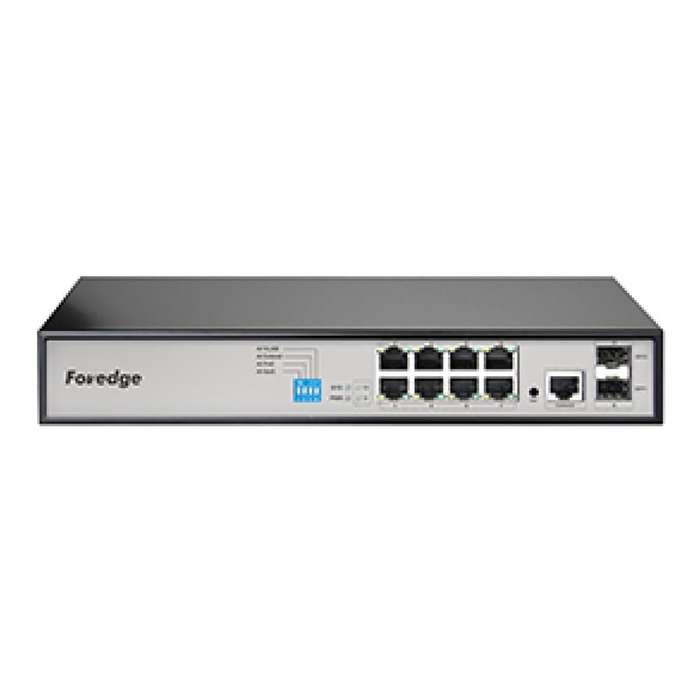

Foredge PS2010G 8-Port Gigabit Ethernet PoE Managed Switch
It is suitable for campus, hotel, and enterprise campus network access, aggregation, and core multiple application scenarios.
Features:
- 8 10/100/1000Mbps RJ45 ports (POE), 2 Gigabit SFP fiber optic ports
- Supports SNMP, RMON, Syslog, USB features, as well as multiple management methods such as CLI, web management, and Telnet, making it easy to maintain
- Hardware level multiple protection ensures continuous operation of equipment and stable network without disconnection
- Supports one-stop management on the Apollo cloud platform
- Support cloud platform for resource visualization management of switches and attached PD devices, making operation and maintenance management simpler
Technical Specifications:
Networking Interface
8 × 10/100/1000 Mbps RJ45 Ports (PoE)
2 × SFP Ports
1 × Console Port
Network Protocols
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
Performance
Bandwidth: 20 Gbps
Packet Forwarding Rate: 14.88 Mpps
MAC Table Size: 8K
Forwarding Type: Store and Forward
LED Indicators
10 × Link/Act Indicators
8 × PoE Indicators
1 × Power Indicator
1 × SYS Indicator
PoE Pin Assignment
1/2 (+), 3/6 (—)
Power Supply
Input: AC 100—240 V, 50/60 Hz
Single Port Maximum Power: 30 W
PoE Power Budget: 150 W
Dimensions
250 × 180 × 44 mm (W × D × H)
Environment
Operating Temperature: 0 °C ~ 40 °C
Storage Temperature: —40 °C ~ 70 °C
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 90% RH (non-condensing)
Safety Compliance
CE, RoHS, FCC
Software Specifications
Protocol Standards
IEEE 802.3: Ethernet MAC
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ad: Link Aggregation
IEEE 802.3x: Flow Control
IEEE 802.1p: Layer 2 QoS/COS, traffic priority, multicast filtering
IEEE 802.1q: VLAN Bridge
IEEE 802.1d: STP Spanning Tree
IEEE 802.1s: MSTP Spanning Tree
IEEE 802.1w: RSTP Spanning Tree
IEEE 802.3af: PoE
IEEE 802.3at: PoE+
One-Click Functions
AI VLAN
AI Extend
AI PoE
AI QoS
DHCP
DHCP Snooping Supported
VLAN
4K VLANs Supported
Supports 802.1Q VLAN, MAC VLAN, IP VLAN, Voice VLAN
MAC Table
IEEE 802.1d Support
Automatic Learning and Aging
Supports Static, Dynamic, and Filtered MAC Tables
Security Features
Password Guard
Access Control by Port, IP, MAC
HTTPS, SSL v3, TLS v1, SSH v1/v2
IP-MAC-Port Binding
ARP Protection, IP Source Protection, DoS Protection
DHCP Snooping, DHCP Attack Protection
802.1X Authentication, AAA
Port Security, Port Isolation, CPU Protection
PoE Management
PoE Power Limit
PoE Chip Status Check
Port Priority Setting
PoE Power Supply Scheduling
ACL
Layer 2—Layer 4 Packet Filtering
Port Mirroring
Flow Rate Limiting
QoS Remarking
QoS
8 Port Queues Supported
Priority Modes: Port, 802.1P, DSCP
Scheduling: SP, WRR, SP+WRR, WFQ
Spanning Tree
STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
Loop Protection, Root Bridge Protection, TC Protection
BPDU Protection, BPDU Filtering
Multicast
IGMP v1/v2 Snooping
Multicast VLAN Support
Fast Leave Mechanism
Layer 2 Multicast Querier
Multicast Filtering, Packet Statistics, Unknown Multicast Discarding
Storm Suppression
Multicast Suppression
Broadcast Suppression
Unknown Unicast Suppression
LACP
Static Aggregation
Dynamic Aggregation
Load Balancing (IP, MAC, Mixed Modes)
Supports up to 32 Aggregation Groups
IPv6
IPv6 Ping, IPv6 Traceroute, IPv6 Telnet
IPv6 SSH, IPv6 SSL
Management & Maintenance
Web Management (HTTP, HTTPS, SSL v3)
CLI (Telnet, SSH v1/v2)
SNMP v1/v2/v3
LLDP, RMON Support
ARP Protection, IP Source Guard, DoS Guard
CPU & Memory Monitoring
Syslog, Alarm Levels
Ping, Traceroute, Cable Detection
