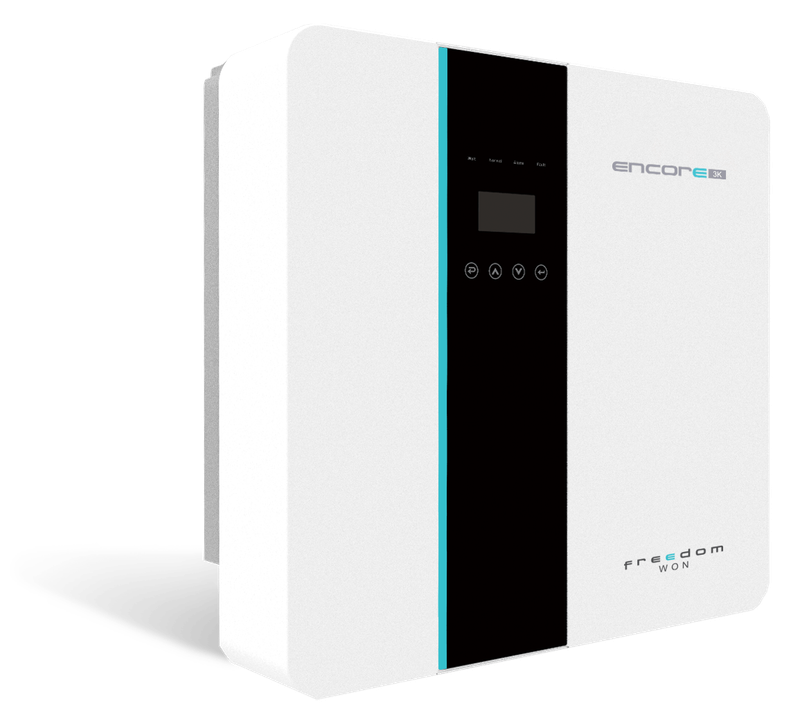

Freedom Won Encore 3k Single Phase Inverter
Introducing the Freedom Won Encore Hybrid Inverter, a game-changer in energy management. This inverter solution seamlessly bridges the gap between renewable energy and power distribution for both residential and commercial applications. With our diverse range of models, ranging from 3kVA to 15kVA, you can tailor your energy solution to meet the unique demands of your home or business.
The Freedom Won Encore inverter excels in seamlessly integrating PV input, battery storage, diesel generators, grid power, and electrical loads concurrently. It offers a versatile array of application modes, including self-consumption, peak shaving, valley filling, and backup power supply. Not only does it support parallel connections of multiple units, but it also finds its suitability across a wide spectrum of energy storage applications.
Experience the power of the Freedom Won Encore Hybrid Inverter, the perfect companion to our eTower and LiTE Home and Business Ranges, ensuring optimal power output for your energy needs.
Input (PV)
Max. Power [kW] 4.6
Max. DC Voltage [V] 550
MPPT Voltage Range [V] 125~500
Max. Input Current of Single MPPT [A] 14/14
MPPT Tracker/Strings 2/1
AC Output
Rated Output Power [kVA] 3
Max. Output Current [A] 13
Grid Voltage/Range [V] 230/176~270
Frequency [Hz] 50/60
Displacement Power Factor 0.99lagging-0.99leading
THDi [%] <2
Battery
Battery Voltage Range [V] 40~58
Max. Charging Voltage [V] 58
Max. Charge/Discharge Current [A] 95/62.2
Battery Type Lithium/Lead-acid
Communication Interface CAN/RS485/WiFi/LAN/DRM
EPS Output
Rated Power [kVA] 3
Rated Output Voltage [V] 230
Rated Output Current [A] 13
Rated Frequency [Hz] 50/60
Automatic Switching Time [ms] <20
THDv [%] <2
General Data
Battery Charge/Discharge Efficiency [%] 95.0
DC Max. Efficiency [%] 97.6
Europe Efficiency [%] 97.0
MPPT Efficiency [%] 99.9
Ingress Protection IP65
Noise Level [dB] <35
Operating Temperature [°C] -25 to +60°C (derating at 45°C)
Cooling Natural
Storage/Operation Relative Humidity 0~95% (non-condensing)
Altitude [m] <2 000
Dimensions - H x W x D [mm] 515x550x200
Crated Dimensions - H x W x D [mm] TBC
Weight [kg] 25
Crated Weight [kg] TBC
Night-time Consumption [W] 15~25
Safety Compliance
Safety Standard IEC/EN 62109-1/-2, IEC/EN 62477-1
EMC IEC/EN 61000-6-1, IEC/EN 61000-6-3
Certificates South Africa NRS097-2-1:2017, UK G98, G99, EN 50549-1
