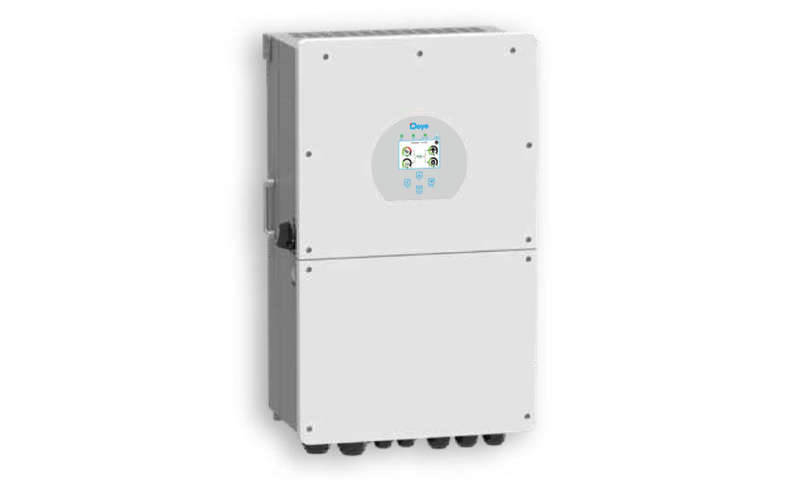

Deye 16Kw single Phase Hybrid Inverter Inverter

General Data
Maximum Efficiency: 97.60%
MPPT Efficiency: 99.90%
Supports Paralleling (16 Units)
Generator Compatible
Mounting: Wall Mount

Battery Data
Battery Type: Lead-Acid or Li-Ion
Battery Voltage Range: 40VDC~60VDC
Maximum Charging Current: 290A
Maximum Discharging Current: 290A
UPS Power: 12000W
External Temperature Sensor: Yes
Charging Curve: 3 Stages / Equalization
Charging Strategy for Li-Ion Battery: Self adaption to BMS

PV String Input Data
Maximum DC Input Power: 20800W
Maximum DC Input Voltage: 500VDC
Startup Voltage: 125VDC
MPPT Voltage Range: 150VDC-425VDC
Rated DC Input Voltage: 370VDC
PV Input Current: 26A + 26A + 26A
Maximum PV (Isc): 44A + 44A + 44A
No of MPP Trackers: 3
Strings per MPP Tracker: 2

AC Output Data
Rated AC Output Power: 16000W
AC Output Rated Current: 69.6A
Maximum Continuous AC Passthrough: 100A
Peak Power (Off Grid): 2 time of rated Power, 5 S
Power Factor: 0.8 Leading to 0.8 Lagging
Output Frequency and Voltage: 50/60Hz; L/N/PE 220/230VAC (Single Phase)
Grid Type: Single Phase

Environment Limit
Operating Temperature Range: -45°C to 60°C
Cooling: Smart Cooling (<30 dB)
Communication: RS485 / CAN
Ingress Protection: IP65
Safety Certification: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
