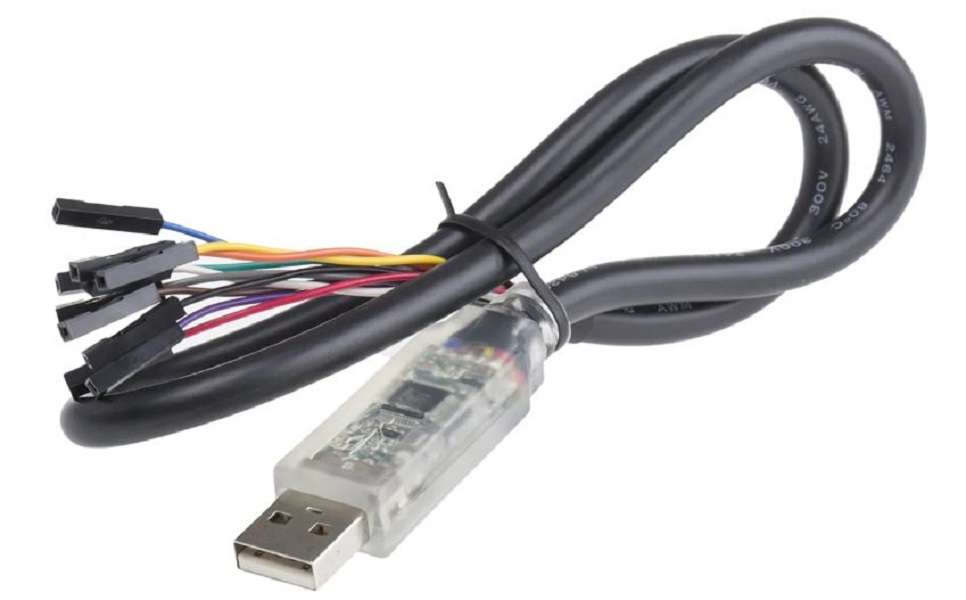

Ftdi (C232HM-DDHSL-0) Cable, USB to MPSSE, 0.25A/3.3V Output, 500mm

Product InformationConversion Type: USB to MPSSE ConverterBaud Rate: 30MbaudConverter Connector Type: Free / Stripped EndChip Type: FT232HCable Length - Metric: 500mmCable Length - Imperial: 1.6ftProduct Range: FTDI FT232HProduct OverviewThe C232HM-DDHSL-0 is a USB 2.0 high speed to MPSSE cable. This cable contains asmall internal electronic circuit board, utilising the FT232H, which isencapsulated into the USB connector end of the cable, this handles all the USBsignalling and protocols. The FT232H is a single channel USB 2.0 high speed(480Mb/s) to UART/FIFO IC. It can be configured in a variety of industrystandard serial or parallel interfaces, such as MPSSE - JTAG, SPI, I2C. Theintegrated FT232H device incorporates a command processor called the multiprotocol synchronous serial engine (MPSSE). The purpose of the MPSSE commandprocessor is to communicate with devices which use synchronous protocols (suchas JTAG, SPI or I2C) in an efficient manner. The cable is terminated by tenindividual wires with single pole connectors which can be interfaced to a maleheader. Cable signals are compliant with CMOS logic at 3.3V. The cable is 0.5mlong and supports a data transfer up to 30Mbps in MPSSE mode.Maximum output of 450mA at 5.0Vdc on VCCLow USB bandwidth consumptionUHCI/OHCI/EHCI host controller compatibleUSB 2.0 high speed (480Mbits/Second) and full speed (12Mbits/Second) compatibleEntire USB protocol handled on the chip, no USB specific firmware programmingrequiredUSB type A connector for direct connection to a host or hubLow operating and USB suspend currentSupport for USB suspend and resumeAdjustable receive buffer timeout1KB receive and transmit buffers for high data throughput
