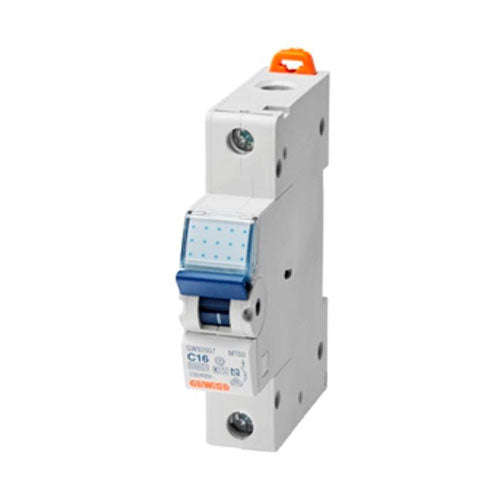

Gewiss DIN Mini Circuit Breakers 1P 16A C 4.5/6kA 1M
New
Shipping
Standard courier shipping from R60
R60 Standard shipping applies to orders under R100, in most areas in South Africa. R30 Standard shipping applies to orders over R100. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 5 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code
GW92108
Bob Shop ID
603923353
Product Features
- Miniature circuit breaker MT45 range
- The position of the releases on the front, with magnetic turns and opposing arc chute chambers, allows a notable reduction in arc time and short-circuit strain on the mechanism
- It has therefore been possible to halve the system and lighten the mechanism, which has short pre-arc times thanks to the reduced energy
- The new mechanism has been sized and optimised by means of a sophisticated planning, engineering and testing programme
- Manual control lever with a position coherent with the contacts, allowing the circuit breaker to be used as a switch disconnector (in compliance with Standard CEI 64-8)
- Toggle joint tripping mechanism with tripping accelerator for short-circuit condition
- Electromagnets for instantaneous short-circuit tripping
- Silver-graphite contacts to maintain electrical characteristics over time
- Magnetic turns in the arc chute chambers
- Arc chute chambers with 12 reeds in a ferromagnetic material
- Shell-type terminals with anti-loosening tightening system
Technical Specifications
| Colour: | White |
| Material: | Plastic |
| Handle Colour: | Blue |
| Poles: | 1 |
| Current: | 16A |
| Voltage: | 230/400V |
| IP Rating: | IP20 - terminals and IP40 - front |
