GEYSERWISE Max 12V Solar Kit for Pumped Solar Geyser, Includes Max Geyser Controller Kit, 12V Bra...

GEYSERWISE Max 12V Solar Kit for Pumped Solar Geyser can be fitted on a pumped solar geyser to provide solar-powered hot water circulation (12V all brass pump, 10W solar panel, 12V 4AH battery) coupled with an intelligent temperature and power consumption optimization system (Geyserwise Max kit).

• Provides clear readings of water temperature, time, day, heating mode & malfunction conditions
• Water can be heated automatically or manually
• Simply set up to 4 different temperature settings between 30C & 65C (factory setting of 55C)
• Programmable timer with 4 x time setting that can be set daily
• Equipped with a mechanical thermal cut out at 90C & notifies you of error conditions
• Hot Water is circulated by the 12V pump with full brass housing, powered by the 10W solar panel with battery backup

Geyserwise, based in Cape Town since 2004, designs & distributes electronic thermostats, PV water heating systems, solar water heating pumps & accessories, with the aim to minimise the electrical consumption of the everyday residential electric geyser. Geyserwise products can also optimise the operation of solar geysers.

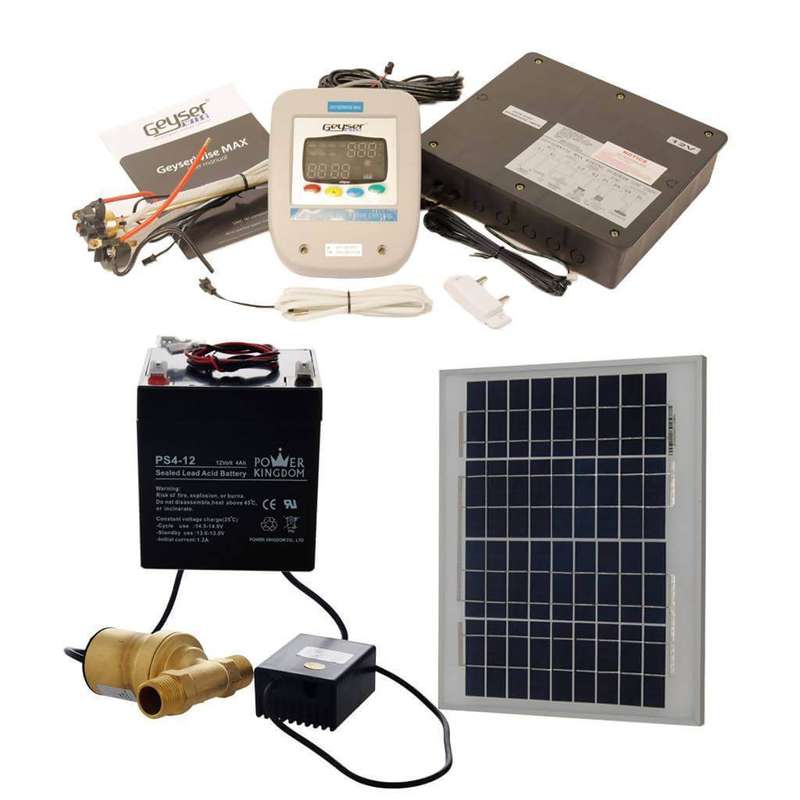

What's in the box:

• 1 x Geyserwise Max Geyser Control Box
• 1 x Geyserwise Max Geyser Programmable Timer
• 1 x Geyserwise Max Geyser Electronic Thermostat
• 1 x 12V DC Brass/Brass Circulation Pump
• 1 x 10W PV Solar Panel
• 1 x 12V 4AH Battery
• 1x Battery Connecting Cable

Technical specifications, Geyserwise Max Geyser Controller Kit:

• Operating voltage: 230VAC/ 50Hz
• Main relay contact rating: 30AMP (max 4kW)
• Secondary relays pump and solenoid: 5Amp
• Operating voltage range: 160V - 250V AC
• Earth leakage protection: 25MA action time = 0.1 sec
• Temperature display range: 0 - 99C
• High-temperature warning: 84C
• Temperature setting range: 30 - 65C
• Dry heat detection: Empty cylinder
• Temperature differential setting: 1C

Technical specifications, 12V Geyserwise Brass/Brass Circulation Pump:

• Rating: 12V DC,Max 8Lpm, Max 2M, 7.5W
• Soft start: 2W required
• Required Voltage scope :  7~17.7V, rated 12VDC
• System pressure: Operating = 600kpa,  Tested = 3500kpa
• Max continuous working liquid temperature: 90c
• Max temperature/minimum period: 100c
• Flow rate: 2L/min to 10L/min
• Noise: 35 DB (10%)
• Size: 91mm x 47mm x 96mm

Technical specifications, 10W Solar Panel:

• Model: SD Eco plus 10W
• Peak Power (PMax) : 10 Wp
• PMax Tolerance:  +/- 2.5Wp with tolerance 1%
• Voltage: 18V
• Current: 0.56 A
• Open Circuit Voltage: 21.1V
• Short Circuit Current: 0.73A
• Certification: IEC 61730-1, IEC 61730-2 and IEC61215 ed 2 certified
