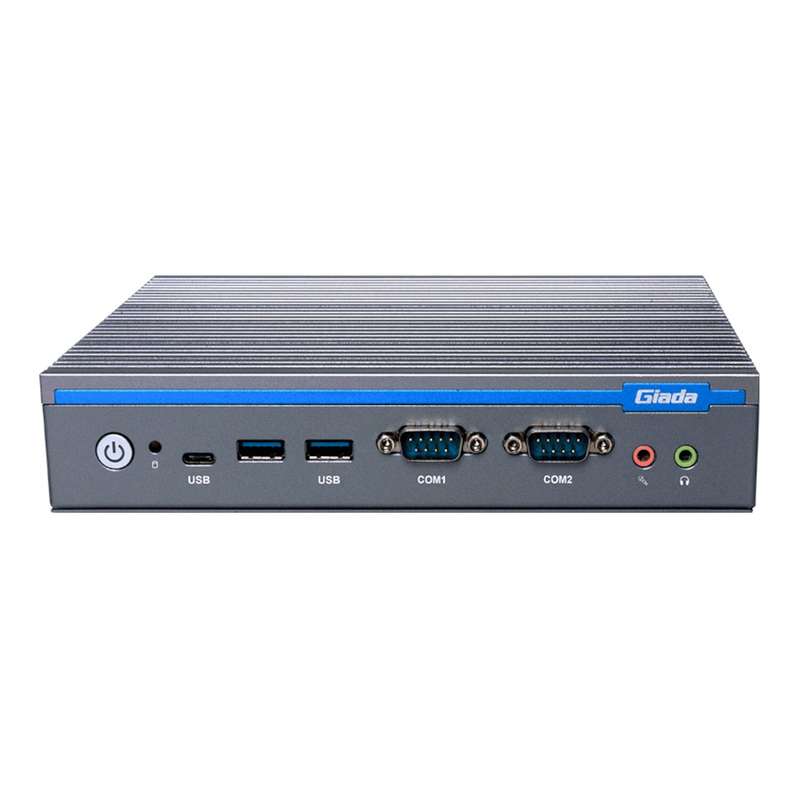

The Giada DF613 Fanless High-Performance PC is a compact, industrial-grade computing solution engineered for demanding digital signage and edge computing environments. Powered by Intel's 13th Gen processors, this robust system delivers high-efficiency performance with ultra-low power consumption. It is ideal for mission-critical deployments in retail, transportation, and smart city infrastructures.
Designed to operate silently, the Giada DF613 Fanless High-Performance system features a fanless thermal architecture that ensures consistent and reliable performance in noise-sensitive or dust-prone environments. Support for 8K resolution and quad display output enables vivid, immersive visual experiences for content-driven applications, including multi-screen digital signage and real-time analytics.
Connectivity is optimised with dual LAN ports, multiple USB and COM interfaces, and a high-speed M.2 slot for flexible expansion. TPM 2.0 support and industrial-grade stability ensure the Giada DF613 Fanless High-Performance PC meets enterprise-level security and reliability standards.
Whether deployed in harsh industrial settings or modern commercial spaces, the Giada DF613 Fanless High-Performance system is purpose-built for uninterrupted 24/7 operation, offering superior longevity, energy efficiency, and deployment versatility.
FEATURES:
- Fanless, ultra-silent design
- Intel® 13th gen CPU support
- Supports up to 8K display ultra-high-definition visuals
- Quad display output for enhanced content delivery and multi-screen setup
- Dual LAN with teaming ensures stable, high-throughput networking
- Rich I/O interface: HDMI, DisplayPort, USB, COM ports, and M.2 expansion
- TPM 2.0 security module enables enterprise-grade data security and hardware-based encryption
- Industrial-grade reliability built for 24/7 operation in commercial, industrial, and embedded system environments
- Compact, slimline form factor space-saving chassis facilitates easy integration into space-constrained installations
SPECIFICATIONS:
- CPU
- CPU: Intel® CoreTM i3-1315U processor
- E-Core Frequency: 3.30 GHz
- P-Core Frequency: 4.50 GHz
- Chipset: SoC
- Processing Units: 6 Cores
- Base Power: 15 W /15 W
- Network
- Network Controller:
- 1 x Intel i219-LM Gigabit Ethernet
- 1 x Realtek RTL8111H Gigabit Ethernet
- Ethernet Interface: 2 x RJ45
- Wi-Fi/BT:
- 1 x E-Key M.2 (2230) for Wi-Fi/BT
- Support Wi-Fi 5/6/6E (CNVi)
- Mobile Network:
- 1 x B-Key M.2 (3042) for 3G/4G,
- 1 x SIM Slot
- System
- System Memory: Up to 64 GB, 2 x SO-DIMM DDR4-3200 MHz
- Storage: 1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
- Watchdog Timer :Yes
- Auto Power On: Yes
- RTC: Set up independently every day, a week as a cycle
- Power Requirement: DC-IN, 19 V/4.74 A
- Dimensions: 20 x 15 x 4 cm
- Construction: Metal, Grey
- Operating System: Windows 11 (64bit) /Linux Ubuntu (64bit)
- Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
- Certifications: CE, FCC Class B, UKCA
- Humidity: 95% @ 45°C (non-condensing)
- Display
- GPU: Intel® UHD Graphics (Core i3)
- Graphic Engine:
- DirectX 12.1, OpenGL 4.6, Opencl 3.0,
- 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
- Display Interface:
- 1 x DP (Max.7680 x 4320 @60 Hz)
- 2 x HDMI (Max.4096 x 2304 @60 Hz)
- # of Displays Supported: 3
- I/O interface
- USB
- 1 x USB Type-C,
- 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
- Serial Port:1 x RS232, 1 x RS232/422/485
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Button: 1 x Power on, 1 x CLR-CMOS
- Antenna
- 2 x Connector for Wi-Fi/BT
- 2 x Connector for 3G/4G (Reserved)
- Dimension: 20 x 15 x 4 cm
WHAT'S IN THE BOX:
- Giada D613-I i3-1315U Raptor Lake Fanless signage Player x1
