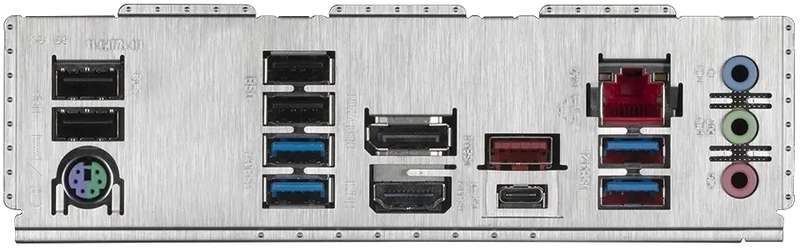

Gigabyte Intel Z790 UD Intel 12th / 13th Gen Socket LGA 1700 ATX Motherboard, Intel Z690 Express Chipset, 4x DDR5 DIMM Memory slots, 1x HDMI Port, 1x DisplayPort supporting a Maximum Resolution of 4096X2304@60 Hz, High Definition audio, Realtek 2.5GbE LAN Chip, 1x PCI Express x16 slot running at x1, 1x PCI Express x16 slot running at x4, 1x PCI Express x16 slot running at x1, 2x PCI Express x1 slots, 3x M.2 connector, USB Type-C Port with USB 3.2 Gen 2x2 support, USB Type-C Port with USB 3.2 Gen 1 support, USB 3.2 Gen 2 Type-A Ports, USB 3.2 Gen 1 Ports, USB 2.0 Ports, 1x PS/2 Keyboard/Mouse Port, 1x Q-Flash Plus button, 3x audio jacksOverview:Intel Z690 Motherboard with Direct 16+1+2 Phases Digital VRM Design, DDR5 MEMORY, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN,Rear USB 3.2 Gen 2x2 Type-C, Q-Flash PlusSupports 12th Gen Intel Core Series ProcessorsDual Channel Non-ECC Unbuffered DDR5, 4 DIMMsDDR5 MEMORY DesignDirect 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer CapacitorUltra Performance VRM HeatsinksFast 2.5GbE LAN with Bandwidth Management3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal GuardsSuperSpeed USB 3.2 Gen 2x2 TYPE-C delivers up to 20Gb/s transfer speedsRGB FUSION 2.0, supports Addressable LED & RGB LED StripsSmart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card*Power Stage maximum current capacity is based on VCORE Phase.Features:UNPARALLELED PERFORMANCEWith technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.DDR5XMP 6000+Unlock DDR5 VoltageShielded Memory RoutingXMP3.0XTREME MEMORYGIGABYTE Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.DDR5 Comes with 50% Performance IncreaseDDR5 delivers 50% improvement compared to last generation. DDR5 massively elevates the system level performance. DDR5 provides more bandwidth to keep up with the higher CPU core count bandwidth requirement. The new memory architecture also reduces the power consumption.THERMALThermal DesignFully Covered MOSFET HeatsinkM.2 Thermal Guard2X Copper PCBSmart Fan 6ADVANCED THERMAL SOLUTIONZ690 UD uses high performance Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.CONNECTIVITY2.5 GbE LANUSB 3.2 Gen2X2 Type-CHi-Fi AudioNEXT GENERATION CONNECTIVITYGIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.LIGHTINGRGB FUSIONBIOSEASY TUNESystem Information ViewerULTRA DURABLEGIGABYTE Ultra Durable features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.Specifications:CPU 1. LGA1700 socket: Support for 13th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors2. L3 cache varies with CPUChipset 1. Intel Z690 Express ChipsetMemory 1. Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory3. Dual channel memory architecture4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules6. Support for Extreme Memory Profile (XMP) memory modules(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support:1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)Audio 1. Realtek Audio CODEC2. High Definition Audio3. 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.4. Support for S/PDIF OutLAN 1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Expansion Slots 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 5.0 standard.)2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)3. 1 x PCI Express x16 slot, running at x1 (PCIEX1_4)4. 2 x PCI Express x1 slots(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)Multi-Graphics Technology 1. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesStorage Interface CPU:1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)2. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)3. 6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10Intel Optane Memory Ready* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.USB Chipset:1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support2. 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header3. 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)Internal I/O Connectors 1. 1 x 24-pin ATX main power connector2. 1 x 8-pin ATX 12V power connector3. 1 x 4-pin ATX 12V power connector4. 1 x CPU fan header5. 1 x water cooling CPU fan header6. 3 x system fan headers7. 1 x system fan/water cooling pump header8. 2 x addressable LED strip headers9. 2 x RGB LED strip headers10. 3 x M.2 Socket 3 connectors11. 6 x SATA 6Gb/s connectors12. 1 x front panel header13. 1 x front panel audio header14. 1 x S/PDIF Out header15. 1 x USB Type-C header, with USB 3.2 Gen 1 support16. 1 x USB 3.2 Gen 1 header17. 2 x USB 2.0/1.1 headers18. 1 x
