Description: ArduinoUNO is the most popular ARDUIN0 board so far, however, it is sometimes frustrating when your project requires a lot of sensors or Leds and your jumper wires are in a mess. Base Shield provides a simple way to connect with ARDUIN0boards and help you get rid of breadboard and jumper wires. With the 16 on-board Grove Connectors, you can easily connect with over 300 Grove modules! The pinout of Base Shield V2 is the same as ArduinoUNO R3.

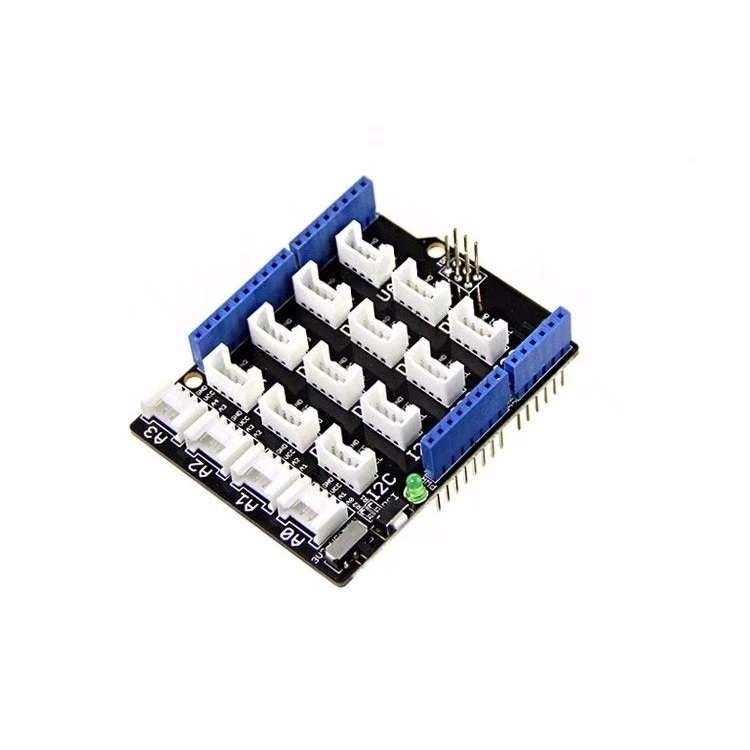

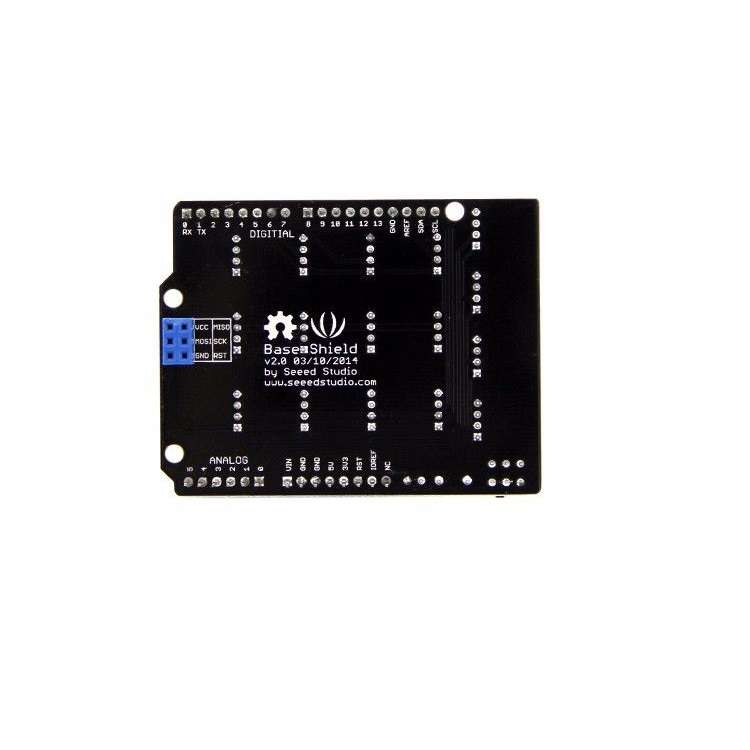

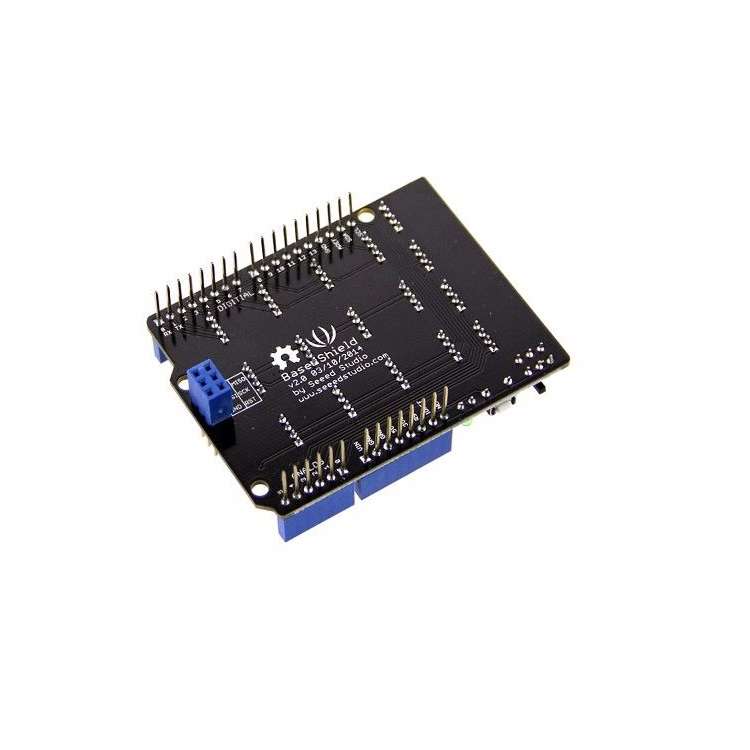

Features: There are 16 on-board Grove connectors including 4 x Analog, 7 x Digital, 1 x UART, 4 x I2C. Apart from the rich Grove connectors, on the board you can also see an RST button, a green LED to indicating power status, ICSP pin, a toggle switch and four row of pinouts. There is no need to explain the RST button and LED, but you really need to know below two features that are very important for your projects.

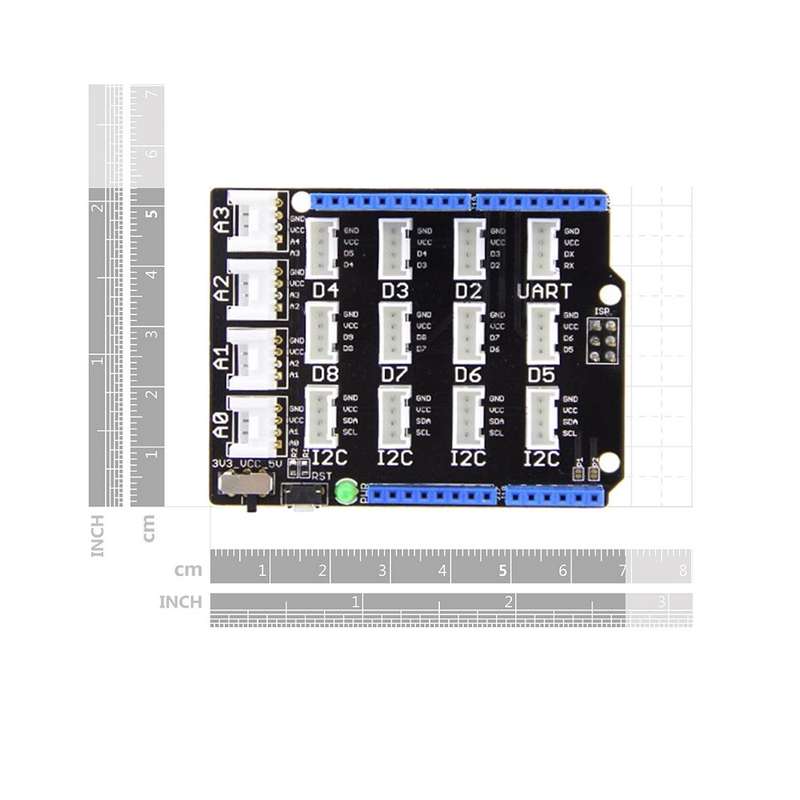

Technical parameters: Dimensions: 69mm x53mm x23mm Gross Weight: 40g Battery: Exclude
Package included: 1 x Base Shield V2
Power Compatible: Every Grove connector has four wires, one of which is the VCC. However, not every micro-controller main board needs a supply voltage of 5V, some boards only need 3.3V. That`s why we add a power toggle switch to Base Shield V2 so that you can select the suitable voltage of the micro-controller main board you are using via this switch.
For example, if you are using ArduinoUNOwith Base Shield V2, please turn the switch to 5V position; while using Arch with Base Shield V2, please turn the switch to 3.3V.
What is Grove Grove makes it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering required. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. Not only are these open hardware, but we also have open source software.

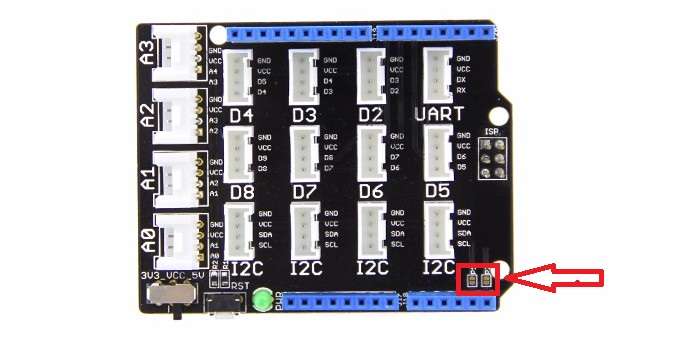

Note: For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through and before your using of the product. If using Base Shield v2 with Seeeduino V3, please solder the pads, P1 and P2.
