M5Stack SERVO Hat Motor Module with ES9251II Digital Servo for M5StickC ESP32 IoT Development Boar

Description:

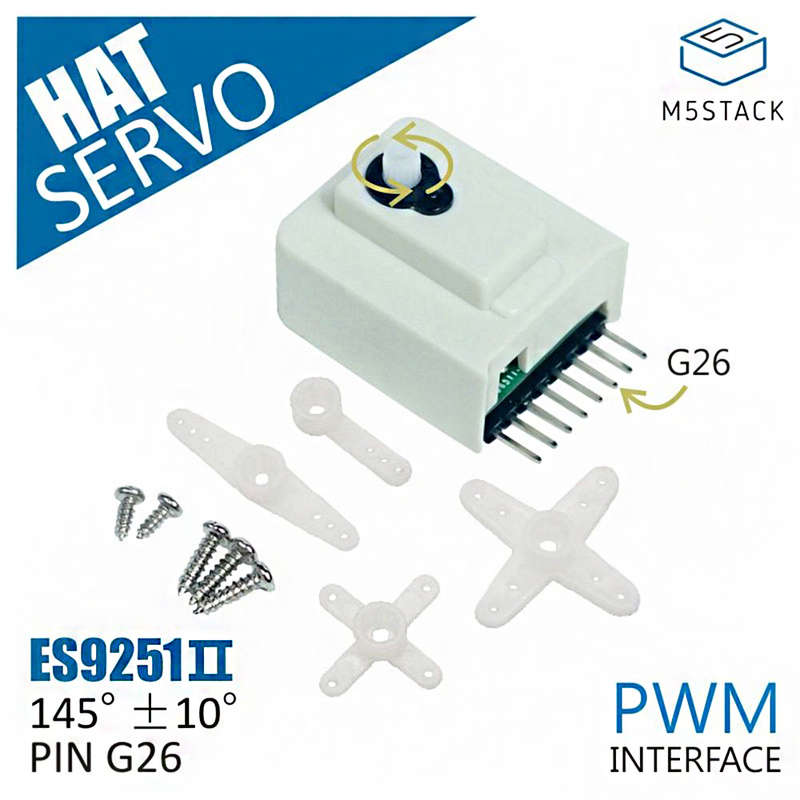

SERVO HATas the name suggests, is a servo motor module with the new and upgraded ES9251II digital servo,This comes with 145ﾣ±10ﾣ range of motion and can be controlled by PWM signals. The signal pin of the hat is connected to G26 on M5StickC.

Product Features:

• Servo Type: a Digital
• Spinning speed:a 0.09sec/60ﾣ
• Gear material:a Plastic
• Weight: a 2.5g
• Torque: a 0.25Kgf.cm(at 4.8v)
• Voltage: a 5.0V±0.2V

Weight and Size:

• Size: 24mm * 29mm * 23mm
• weight: 9g

Included:

• 1x Servo HAT

Applications:

• Analog indication
• Angle and direction control
• Door lock controller

Schematic:

1.EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. This can be burned to the M5 device through simple steps, and a series of function verifications can be performed.
2.After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, clickBurnto burn the program (For M5StickC, set the baud rate to 115200 or 750000)

Example:
