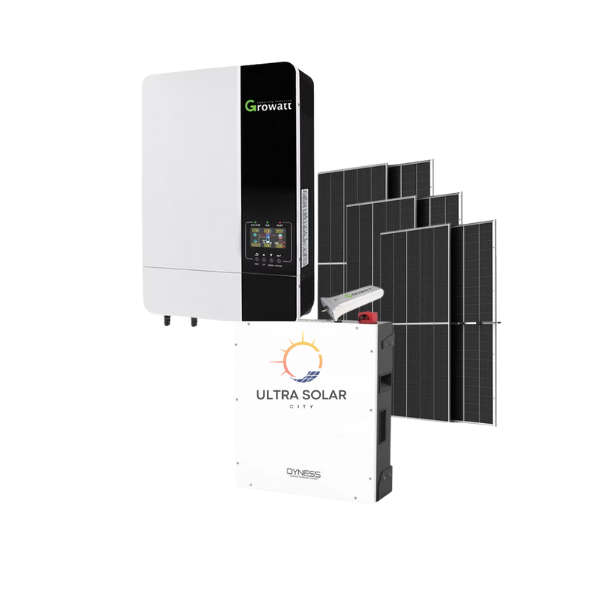

Growatt 5000w and Dyness 5.12 Lithium Battery Combo Power with 6x Solar 445w Solar Panels Mono

Growatt 5000w and Dyness 5.12 Lithium Battery Combo Power Kit 6x Solar 445w JA bifical Solar Panels Mono

Inverter Specifications

Functions

• Integrated MPPT charger controller.
• Equalization charging function.
• Max PV input up to 450vDC.
• Choose grid or solar input priority.
• WIFI/GPRS remote monitoring.
• Parallel up to 6 inverters.
• PV & Grid Power combine if PV energy is insufficient for load.
• Flexible schedule for charging and discharging the batteries.
• Warranty: 2 years

General Specifications

• Module: SPF 5000 ES.
• Battery voltage: 48vDC.
• Battery type: Lithium/Lead-acid.

Inverter Output [AC]

• Rated Power: 5000W.
• AC Voltage Regulation (Battery): 230VAC ± 5%.
• Surge Power: 10000VA for 5 sec.
• Efficiency (Peak): 93%.
• Waveform: Pure sine wave.
• Transfer Time: 10ms 20ms.

Solar Charger

• Maximum PV Array Power: 6000W.
• MPPT Range @ Operating Voltage: 120VDC 430VDC.
• Maximum PV Array Open Circuit Voltage: 450vDC.
• Maximum Solar Charge Current: 100 A.

AC Charger

• AC Charge Current: 80A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 230 VAC.
• Frequency Range : 50 Hz/60 Hz (Auto sensing).

Battery Specifications

• Nominal Voltage (V): 51.2
• Nominal Capacity (Ah): 100
• Total Power (kWh): 5.12
• Best Operating Voltage Range (V): 43-54.5
• Short Circuit Protection: Yes
• Power-on Reverse Connection Protection: Optional
• Maximum Charging Voltage (V): 57.6
• Best Charging Voltage (V): 56.4 (Recommended)
• Maximum Continuous Output Power (W): 5500
• Maximum Momentary Output Power (W): 7500
• Local Parameter Configuration: Supported
• Max Installation Dimension (mm): 480170500
• Package Size (mm): 590290615
• Weight (kg): 49
• IP Class: IP 54
• Communication: RS485, RS232, CAN
• Design Life: 15 years

 Combo includes:

• 1x Growatt Off-Grid Solar Inverter 5kW
• Growatt Wifi Dongle
• 1x Dyness BX51100 Lithium Battery (51.2V100AH 5.12 KWH) 10 Year Warranty
• Battery cables included
• 6 X Solar Panels 445w JA bifical Mono Solar Panel
