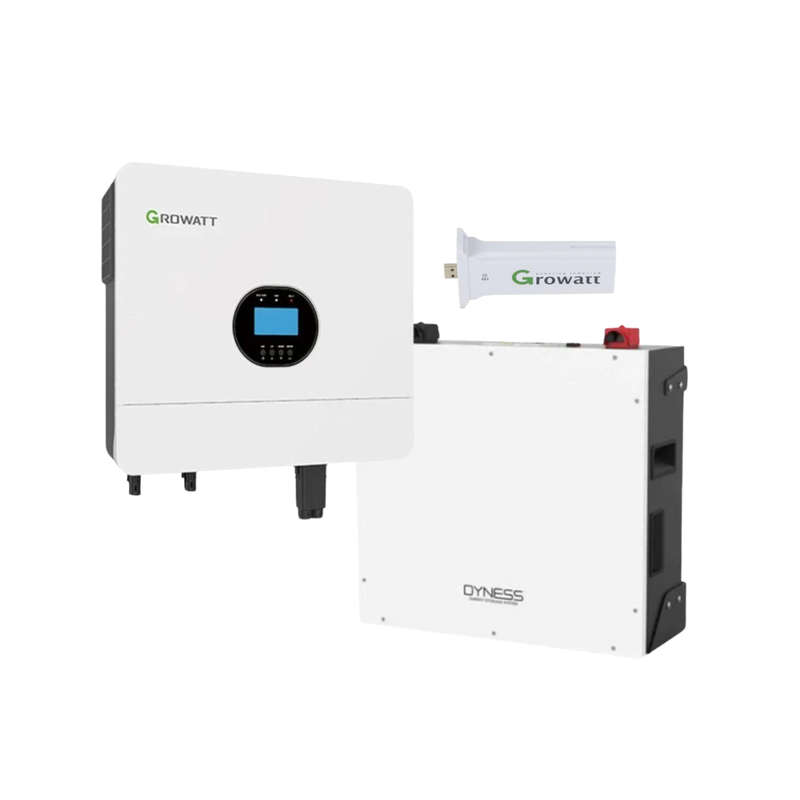

6KW MPPT 100A Growatt Hybrid Inverter + 5.12kWh Dyness Lithium Battery Solar Combo Kit

Description:

Reliable Hybrid Power Solution for Off-Grid & Backup Energy Needs

The Growatt SPF 6000-ES-PLUS 6KVA Hybrid Inverter is a high-performance solution tailored for industrial, commercial, and large-scale backup power applications. This advanced inverter seamlessly integrates solar, battery, and grid power for uninterrupted energy supply, while its parallel scalability supports up to 6 units, making it an ideal choice for businesses requiring reliable energy autonomy.

Paired with the Dyness DL51100 5.12kWh LiFePO4 Battery, this system ensures efficient energy storage and long-lasting performance. Engineered with high-power handling and smart system management, this inverter-battery combo is built for optimal efficiency, durability, and expandability.

Key Features:

• 6KVA / 6000W Pure Sine Wave Output Delivers clean, stable power for sensitive equipment.
• 8000W Maximum PV Input Power Optimized for high solar energy conversion.
• MPPT Operating Voltage Range: 120V 450V DC.
• Scalable System Expansion Supports up to 6 inverters in parallel for increased power.
• Seamless Backup Power Fast 10ms transfer time ensures uninterrupted energy supply.
• High Surge Power: 12,000VA for startup loads.
• Multi-Battery Compatibility Works with Lithium, Lead-Acid, and Gel batteries.
• Integrated Smart Monitoring CAN & RS485 protocols for advanced real-time system tracking.

Dyness DL51100 Battery Features:

• 5.12kWh Capacity Reliable energy storage for extended backup power.
• Advanced LiFePO4 Technology High efficiency, superior safety, and long lifespan.
• Parallel Scalability Expand up to 40 batteries for increased capacity.
• Smart Battery Protection Overcharge/discharge protection with thermal management.
• Flexible Installation Wall-mounted & rack-mounted options.
• 10-Year Warranty Backed for long-term performance and durability.

Technical Specifications:

• Battery Voltage: 48VDC | Rated Power: 6000VA/6000W | Surge Power: 12000VA
• MPPT Solar Input: 120V 450V DC | Max PV Power: 8000W
• AC Charger: 80A | Input Voltage: 230VAC
• Battery Charge Voltage: 56.5V | Max Parallel Batteries: 40
• Enclosure Protection: IP20

What's Included?

1 x Growatt SPF 6000-ES-PLUS 6KVA Hybrid Inverter

1 x Dyness DL51100 5.12kWh Lithium Iron Phosphate (LiFePO4) Battery
Battery Cables & User Manual

1x GROWATT WIFI DONGLE

Warranty & Installation Requirements:

-10-Year Warranty on Battery | 2-Year Warranty on Inverter
-Certified installation required under SANS 10142 compliance.
-COC (Certificate of Compliance) must be issued post-installation.
