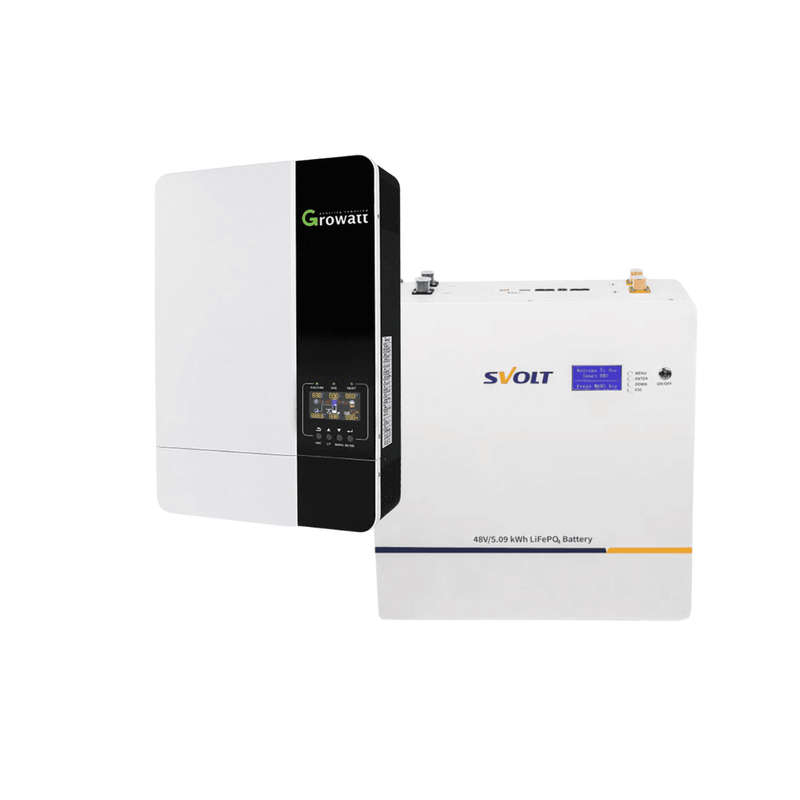

Growatt 5KVA / 5000W MPPT Hybrid Inverter + 5.43kWh SVOLT Lithium Battery / Off-Grid & Backup Power Solution Combo
Product Overview
The Growatt SPF 5000 ES 5KVA Hybrid Inverter, combined with the SVOLT 5.43kWh Lithium Battery, offers a high-efficiency, off-grid, and hybrid power solution designed for residential and commercial applications. This advanced solar backup system ensures reliable energy storage, uninterrupted power supply, and reduced electricity costs.
With integrated MPPT technology, dual AC/PV power input, and intelligent battery management, this system is an ideal choice for load shedding protection, solar energy storage, and off-grid living.
Key Features
Growatt 5KVA / 5000W Hybrid Inverter (SPF 5000 ES)
-Integrated MPPT Charge Controller Optimizes solar energy capture and efficiency.
-Battery-Optional Operation Works with or without a battery for maximum flexibility.
-Parallel Scalability Expandable up to 6 inverters for increased power output.
-Hybrid Power Support Combines solar and grid power when PV energy is insufficient.
-Advanced Monitoring & Connectivity WiFi/GPRS remote monitoring included.
-Flexible Charging & Discharging Schedule Intelligent energy management for solar self-consumption or grid feed-in.
-Pure Sine Wave Output Stable and clean power suitable for sensitive electronics.
-Overload, Short Circuit, and Overcharge Protection Built-in safety mechanisms.
Technical Specifications
Growatt 5KVA / 5000W Hybrid Inverter
- Inverter Type: Hybrid Off-Grid
- Rated Power: 5,000W / 5KVA
- Surge Power: 10,000VA (for 5 sec.)
- Efficiency (Peak): >97%
- Waveform: Pure Sine Wave
- Battery Compatibility: Lithium-Ion & Lead-Acid
- AC Voltage Regulation: 230V ±5%
- Transfer Time: 10ms - 20ms
- MPPT Solar Charge Controller:
- Max PV Input Power: 6,000W
- MPPT Operating Voltage Range: 120V - 430V DC
- Max PV Open Circuit Voltage: 450V DC
- Max Solar Charge Current: 100A
- AC Charger:
- AC Charge Current: 80A
- AC Input Voltage: 230V AC
- Selectable Voltage Range: 195V - 253V AC
- Grid-Interactive Features:
- Grid & Solar Hybrid Power Support
- Load Priority Settings (Solar/Grid/Battery)
- Monitoring & Communication:
- Built-in WiFi & GPRS
- Remote Monitoring via App
- Size & Weight:
- Dimensions: 330 x 485 x 135 mm
- Weight: 12 kg
- Warranty: 5 Years
SVOLT 5.43kWh Lithium Battery (51.2V 106Ah)
High-Capacity Storage: 5.43kWh energy with 90% depth of discharge (DOD).
Extended Cycle Life: 6,000+ charge cycles for a 10+ year lifespan.
Scalable Energy System: Parallel up to 16 batteries for increased capacity.
Advanced Battery Management System (BMS):
- Optimized performance with integrated safety features.
- Compatible with Growatt, Goodwe, Victron, Deye, LuxPower, and more.
Flexible Installation: Wall-Mount or Rack-Mount Compatible.
Fast Charging & Discharging: Supports high power output (100A continuous).
Technical Specifications
SVOLT 5.43kWh Lithium Battery
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Total Energy Capacity: 5.43kWh
- Usable Capacity: 4.9kWh
- Depth of Discharge (DOD): 90%
- Cycle Life: 6,000 cycles @ 25°C
- Nominal Capacity: 106Ah
- Charge Voltage: 56.0V - 58.4V
- Discharge Voltage: 43.2V - 57.6V
- Max Continuous Charge/Discharge Current: 100A
- Operating Temperature: -20°C to 70°C
- Installation: Wall-Mount or Rack-Mount
- Communication Protocol: CAN / RS485
- Battery Warranty: 5 Years
What's Included in the Package
1x Growatt SPF 5000 ES 5KVA Hybrid Inverter (WiFi Dongle Included)
1x SVOLT 5.43kWh Lithium Battery (51.2V 106Ah LiFePO4)
1x Set of Battery Cables & Mounts
1x Ethernet Communication Cable
1x User Manual
Installation & Warranty Guidelines
- Installation Requirement: Must be installed by a certified electrician.
- Certificate of Compliance (COC): Required for warranty validation.
- Warranty Policy:
- Inverter Warranty: 5 Years
- Battery Warranty: 5 Years
- Installation Warranty: COC and professional installation proof required.
- Warranty Claims:
- Must include installation photos, valid COC, and proof of installation by a qualified professional.
- Damage due to improper installation or electrical surges will void the warranty.
Ideal Applications
Residential & C...
