Growatt 5KVA / 5000W Hybrid Inverter + 5.12kWh SHOTO Lithium Battery + 4x 545W Mono Crystalline S...

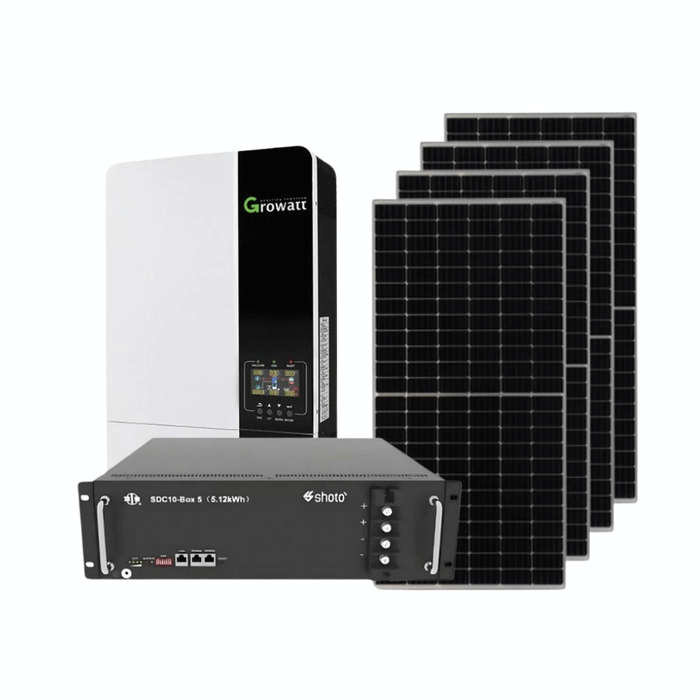

Growatt 5KVA / 5000W Hybrid Inverter + 5.12kWh SHOTO Lithium Battery + 4x 545W Mono Crystalline Solar Panels / Off-Grid & Backup Power System

Product Description:

The Growatt 5KVA Hybrid Inverter, paired with a 5.12kWh SHOTO Lithium Battery and 4x 545W Monocrystalline Solar Panels, provides an efficient and scalable solar power solution for homes and businesses. This off-grid hybrid inverter system allows seamless solar energy management, battery backup power, and grid independence.

With MPPT solar charging, pure sine wave output, and a flexible operating mode, this system ensures high efficiency, reduced electricity bills, and reliable backup power. Whether for self-consumption, energy storage, or emergency power, this combo offers a complete solar energy solution.

Key Features:

Growatt 5KVA / 5000W Hybrid Inverter (SPF 5000 ES) Features:

• Pure Sine Wave Output Provides clean and stable power for sensitive electronics.
• Integrated MPPT Solar Charge Controller Improves energy efficiency with 100A charge current.
• Battery Optional Design Can operate with or without a battery to reduce system costs.
• High PV Input Voltage:
  • Max PV Input: 6,000W
  • MPPT Voltage Range: 120V - 430V DC
  • Max Open Circuit Voltage: 450V DC
• Flexible Charging Modes:
  • Solar-first, battery-first, or grid-first charging priority settings.
  • Supports grid power and solar energy combination for efficient operation.
• Parallel Expansion:
  • Scalable up to 6 inverters for larger power needs.
• Remote Monitoring & Control:
  • Wi-Fi/GPRS connectivity for real-time system tracking.
  • Compatible with mobile apps and web platforms.
• Smart Energy Scheduling:
  • Program charge & discharge cycles for optimal battery use.
• Grid & Generator Compatible:
  • Seamless integration with generators or grid power for continuous operation.
• Overload & Short Circuit Protection Ensures system reliability and safety.

Technical Specifications:

Growatt 5KVA / 5000W Hybrid Inverter (SPF 5000 ES):

• Inverter Type: Hybrid Off-Grid
• Rated Power Output: 5,000W / 5KVA
• Surge Power: 10,000W (5 sec)
• Waveform: Pure Sine Wave
• Efficiency (Peak): 93%
• Battery Voltage: 48V DC
• Battery Compatibility: Lithium-Ion & Lead-Acid
• AC Voltage Regulation: 230V ± 5%
• AC Input Voltage Range: 230V AC
• AC Charger Current: 80A
• Transfer Time: 10ms - 20ms
• MPPT Solar Charger:
  • Max PV Input Power: 6,000W
  • MPPT Voltage Range: 120V - 430V DC
  • Max PV Open Circuit Voltage: 450V DC
• Parallel Capability: Supports up to 6 units
• Monitoring & Communication: Wi-Fi/GPRS (Included)
• Protection Rating: IP20 (Indoor Use Only)
• Size: 330 x 485 x 135 mm
• Weight: 12 kg
• Warranty: 2 Years

SHOTO 5.12kWh Lithium Battery (51.2V 100Ah) Features:

• High-Capacity Energy Storage: 5.12kWh capacity with 90% depth of discharge (DOD).
• Long Cycle Life: 5,000+ charge cycles for 10+ years lifespan.
• Scalable System: Can be expanded with up to 16 battery units.
• Rack-Mount & Wall-Mount Design: Space-saving installation options.
• Smart Battery Management System (BMS):
  • Monitors voltage, current, and temperature for safety.
  • Prevents overcharging, over-discharging, and overheating.
• Broad Compatibility: Works with Growatt, Goodwe, Victron, Deye, LuxPower, and more.

Technical Specifications:

SHOTO 5.12kWh Lithium Battery (51.2V 100Ah):

• Battery Type: Lithium-Ion (LiFePO4)
• Nominal Voltage: 51.2V
• Total Energy Capacity: 5.12kWh
• Usable Capacity: 4.8kWh
• Depth of Discharge (DOD): 90%
• Cycle Life: 5,000 cycles @ 25°C
• Nominal Capacity: 100Ah
• Charge Voltage: 57.6V
• Discharge Voltage: 48V
• Max Continuous Charge/Discharge Current: 75A
• Operating Temperature: -20°C to 55°C
• Installation: Rack-Mount or Wall-Mount
• Communication Protocol...
