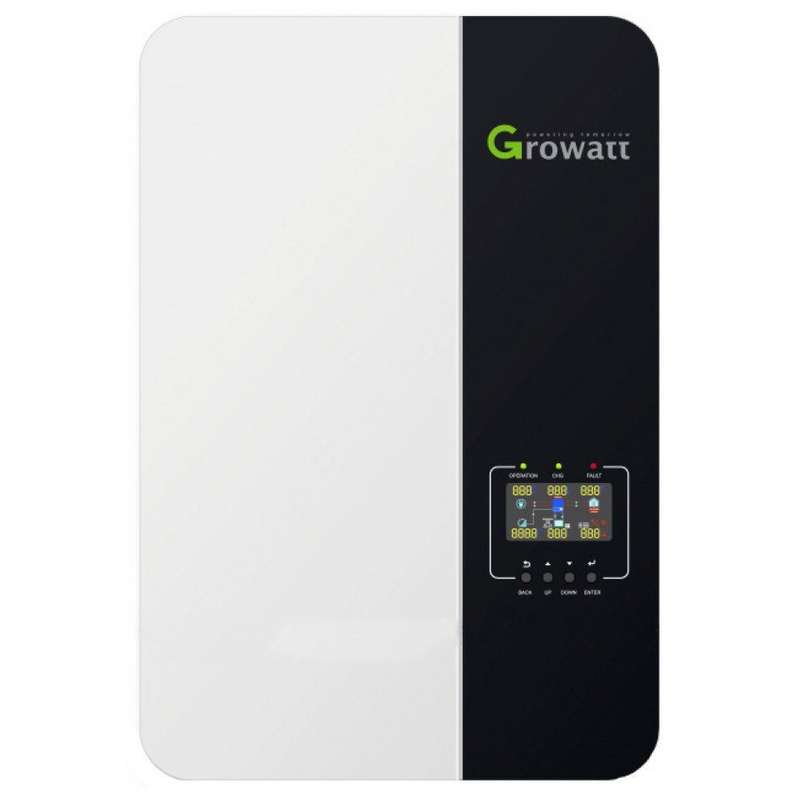

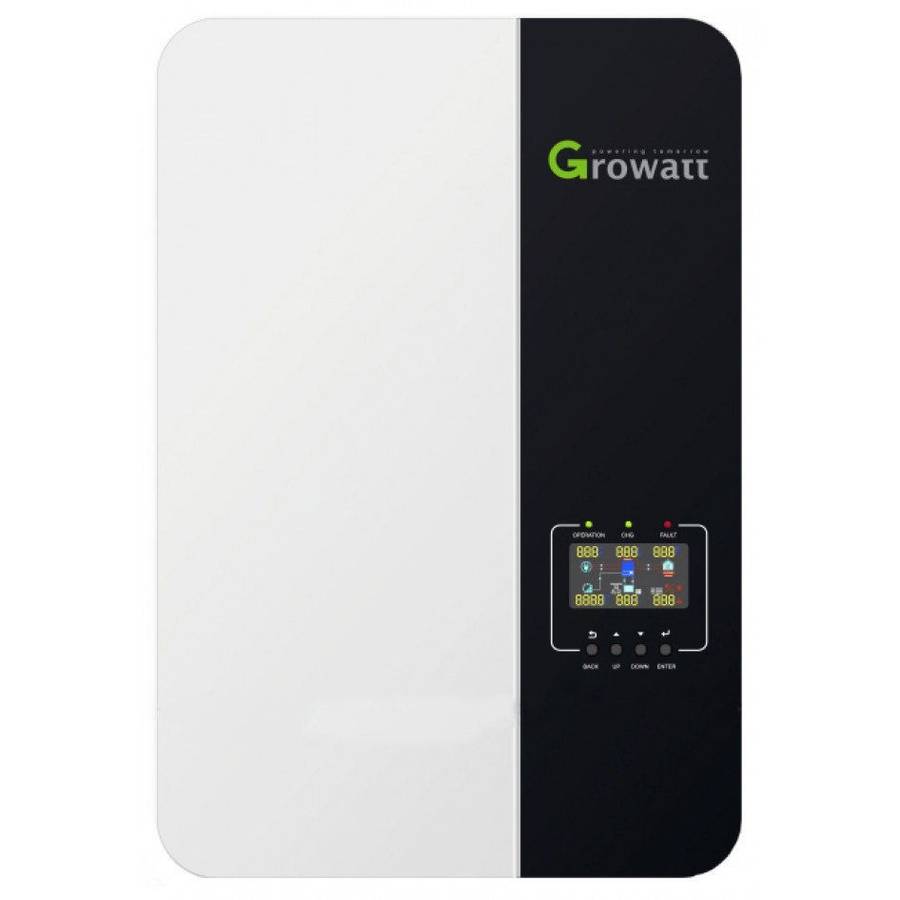

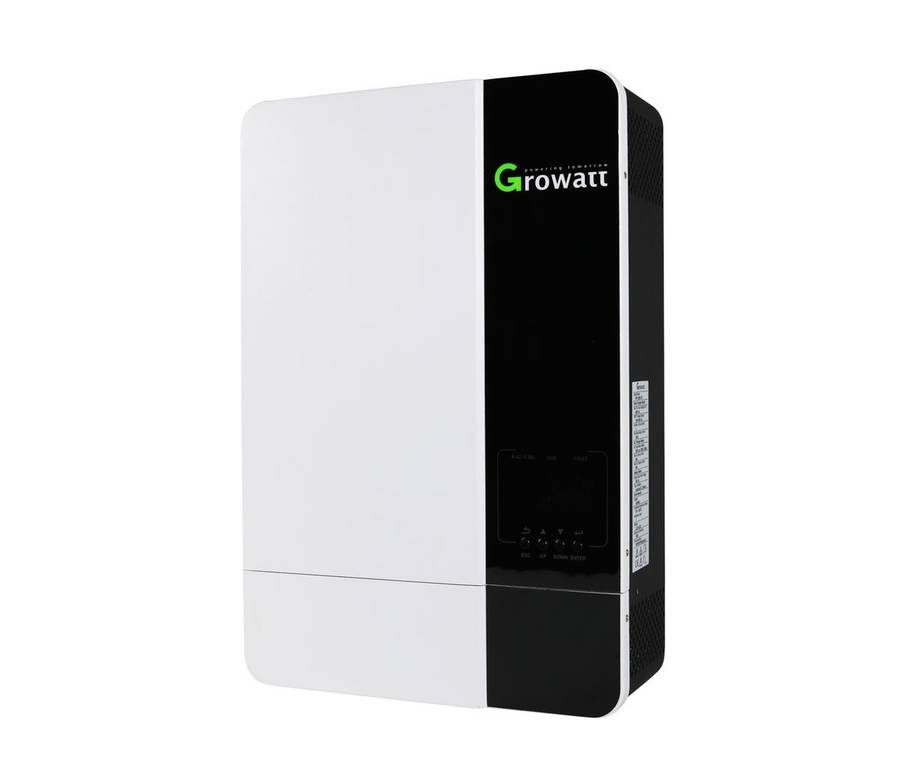

Growatt - 5KW 48V on-grid/off-grid Hybrid Inverter

Features:
- The integrated MPPT charge controller
- It can work with a battery or without a battery
- Maximum PV input voltage up to 450VDC
- Configurable grid or solar input priority
- Optional WIFI/ GPRS remote monitoring
- Parallel for scalability

Specifications:
Inverter Output
Rated Power: 5000VA/ 5000W
Parallel Capability: Yes, 6 units
AC Voltage Regulation (Battery Mode): 230VAC 5% at 50/60Hz
Surge Power: 10000VA
Efficiency (Peak): 93%
Waveform: Pure sine wave Pure sine wave
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
SOLAR Charger
Maximum PV Array Power: 5500W
MPPT Range at Operating Voltage 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 100A
Maximum Efficiency: 97%
AC Charger
Charge Current: 80A
AC Input Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range 50Hz/60Hz (Auto-sensing)
PHYSICAL
Dimension (D/W/H) in mm: 485330135mm
Net Weight (kgs): 12
OPERATING ENVIRONMENT
Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: 0C - 55C
Storage Temperature: -15C - 60C

What's in the box
1 x Hybrid Inverter
1 x User Manual
1 x Wifi Datalogger
1 x Parallel Cabling Kit
1 x Softare Installation CD
