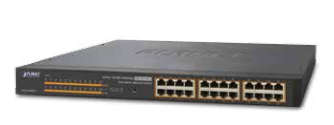

Product GSW-2400HPS
Hardware Specification
Copper Ports 24 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X Ports
PoE Injector Port 24 802.3af / 802.3at PoE Injector Ports
LED Indicators
System:
Power (Green)
PoE Ethernet Interfaces
PoE In-Use (Orange)
1000 LNK / ACT (Green), 10/100 LNK / ACT (Orange)
Switch Processing Scheme Store-and-Forward
MAC Address Table 8K entries
Switch Fabric 48Gbps / non-blocking
Throughput @ 64Kbytes 35.7Mpps
Share Data Buffer 3.5Mbit SRAM Packet Buffer
Flow Control IEEE 802.3x Pause Frame for Full-Duplex.
Back pressure for Half-Duplex
Jumbo Frame 9216 Bytes
Power Consumption Max. 330 watts / 1122 BTU
Power Requirements AC 100~240V, 50/60Hz, 4A max.
Dimensions (W x D x H) 445 x 207 x 45 mm (1U height)
Weight 2.76kg
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Power over Ethernet Plus / PSE
PoE Power Output Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at)
PoE Power Budget 300 watts
Number of PDs, 7 watts 24
Number of PDs, 15.4 watts 19
Number of PDs, 30.8 watts 9
Layer 2 Function
Management Interfaces IPv4 Web Browser
Port Configuration
Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Display each ports state, speed duplex mode, flow control status
Port Statistics Display each ports state, link status, packet transmit / receive counter
VLAN 802.1Q Tagged Based VLAN
Up to 32 VLAN groups, out of 4094 VLAN IDs
QoS
x 4 priority queues on all switch ports
x Traffic classification based, Strict priority and Weight Fair Queue / Weighted Round Robin (WRR) policies
Port-based priority
Trunk Static Trunk
Features 8 groups of 4-port trunk support
Port Mirroring Port mirroring allows monitoring of the traffic across any port in real time
Port Isolation Yes
Bandwidth Control Ingress / Egress Rate Limit per port
Storm Control Broadcast / Multicast / Unknown-Unicast / Unknown-Multicast
Jumbo Frame 1522 / 1536 / 1552 / 9216bytes Jumbo packet setting
Loop Protection Loop Prevention / Detection
Green Networking Enable / Disable
Security
MAC Security
MAC Forwarding Table
Static MAC
MAC Constrain
Cable Diagnostics Support
Configuration Management Configuration backup / restore through Web interface
Firmware Upgrade Web interface
