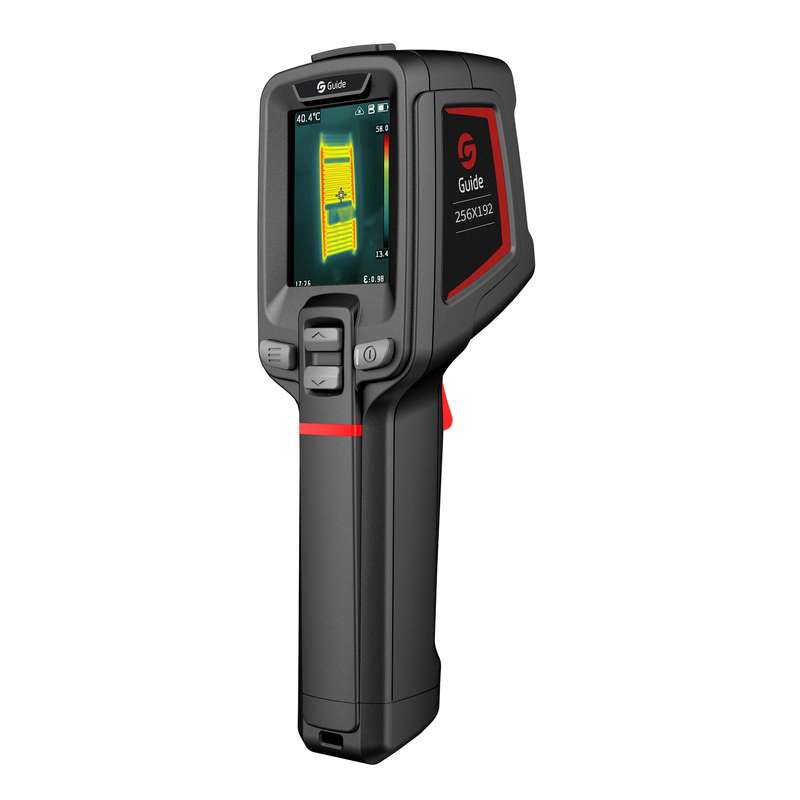

With excellent performance in image quality and charging battery life ,this Thermal Camera adopts 256x192 IR detector and 200W pixel visible light. Adopts the New SharpIR composite image enhancement technology, it can provide you with detailed infrared thermal imaging and dual-light fusion images to help you find potential faults more quickly.
Features:
The New SharpIR Composite Image Enhancement Technology: based on advanced and deep learning technology, SharpIR performs various optimization processes such as defogging, sharpening, contrast enhancement, and lossless magnification on low-resolution images to enhance the clarity of infrared images.
All Palettes Can Display The Temperature: with IR/Visible Light/ MIF/ PIP 4 image modes, all can check the temperatures data intuitive of the target, including the full screen max & min & center spot temperature.
Support PC Projection To Get Large Screen Display: pictures in the machine can be transmitted to the computer in real time by using the type-C to USB cables.
Tracking / Alarm: Full screen maximum/minimum temperature tracking; The maximum or minimum temperature tracking of analyzed target; full screen temperature threshold alarm (image and flash).
16-hour Battery Life: the large capacity battery can last up to 16 hours, USB type-C interface for high power quick charge in 2.5 hours, easy to cope with two days of work.
Wide Temperature Measurement Range: -20ￂﾰC~550ￂﾰC measuring range, automatic switch; Turn on in 1 second and use, full-frame temperature measurement.
Rugged and Durable: resistant to 2 meters drop, IP54 protection rating.
Specifications:
Imaging and Optics:
Detector Type: VOx
Infrared Resolution: 256 ￃﾗ 192@12ￎﾼm
Wavelength Range: 7.5~14ￎﾼm
Focal Length: 3.2mm
Field of View: 56ￂﾰ ￃﾗ 48ￂﾰ
Minimum Object Distance: 0.3 meter
D:S: 130:1
NETD: ￢ﾉﾤ45mK
Infrared Frame Rate: 25Hz / 9Hz
Focusing Mode: Focus-free
Measurement and Analysis:
Measurement Range: Support auto-switching: -20~150ￂﾰC, 100~550ￂﾰC
Measurement Accuracy: ￂﾱ2ￂﾰC or ￂﾱ2%, whichever is greater
Analyzed Target: Center spot and 3 areas
Temperature Measuring Parameters: Emissivity, reflected temperature, target distance
Image Display:
Display Screen: 2.4 LCD
Digital Camera: 2MP
Image Mode: IR, VIS, MIF and PIP
Image Adjustment: Automatic, semi-automatic, manual
Color Palettes: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1
Storage and Transmission:
Storage Media: TF card (up to 32GB)
Image Storage Format: JPG with temp. info
External Interface: TYPE-C, TF card slot, UNC 1/4-20 (tripod mounting)
Laser: 645~655nm, Class 2 laser, ﾼﾜ1mW, only indicating the measured target
Power System:
Battery Type: 3.6V/2000mAh rechargeable lithium-ion battery, non-removable
Battery Working Time: ￢ﾉﾥ16 hours
Power Management: Timed shutdown and sleep mode
Charging Mode: TYPE-C charging; PC/portable charger; Capable of charging while using
Charging Time: 90% of full charge in 2.5 hours
Environmental Parameters:
Working Temperature: -15~50￢ﾄﾃ
Storage Temperature: -40~70￢ﾄﾃ
IP Rating: IP54
Drop: 2m drop test
Material: ABS
Item Size: 194 * 76 * 61.5mm / 7.64 * 2.99 * 2.42in
Item Weight: 380g / 13.41oz
Package Weight: 830g / 29.30oz
Package Size: 24.2 * 14.7 * 9.7cm / 9.53 * 5.79 * 3.82in
Packing List:
1 * Thermal Imager
1 * Type-C Cable
1 * Lanyard
1 * Manual (English)
