Specification:
Number of Teeth: 25T
Rotation angle: 180° or customized within 270°
Dead zone: 3s
Working frequency: 1520s / 330hz
Motor: high-performance strong magnetic motor
Speed (6V): 0.18sec/60°
Speed (7.4V): 0.16sec/60°
Speed (8.4V): 0.15 sec/60°
· Stall torque (6V): 25kg.cm
· Stall torque (7.4V): 30kg.cm
· Stall torque (8.4V): 32kg.cm
Size: 40X20X41.5mm/1.575X0.79X1.633in
Weight: 59g
Connecting cable: JR 300 mm
Bearing: imported 2BB
· Nylon + fiber super hard shell

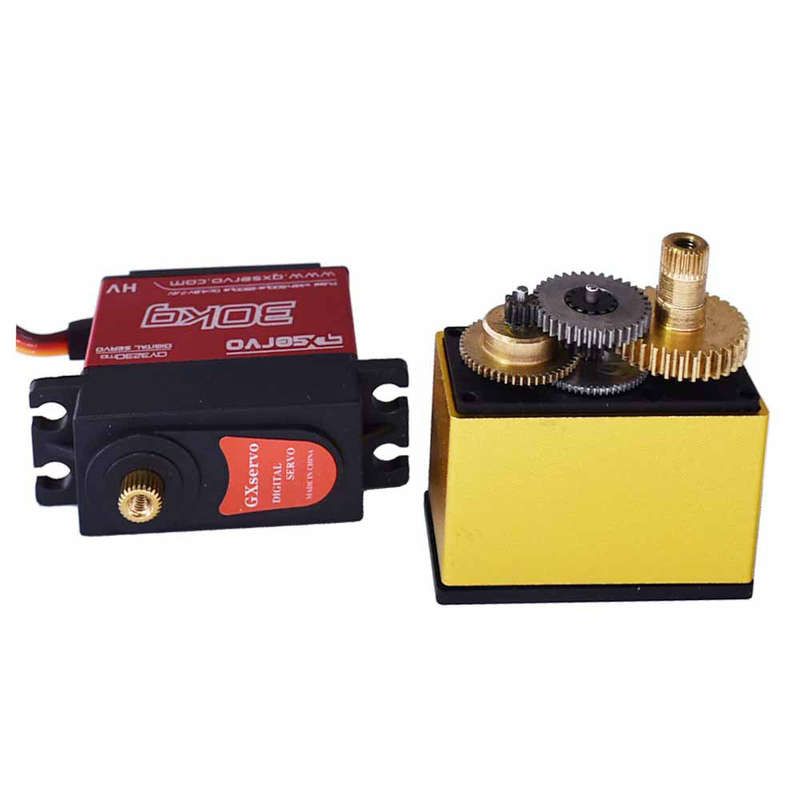

· Gear: all copper teeth
· Potentiometer: High-performance potentiometer
Performance: With anti-blocking and anti-burning protection functions, the output gear adopts imported 6*10*2.5 bearings (increases service life, more accurate, waterproof, equipped with full CNC precision gears, more wear-resistant, not easy to break and scrape teeth, etc.
Including servo accessories packa
