Specification:

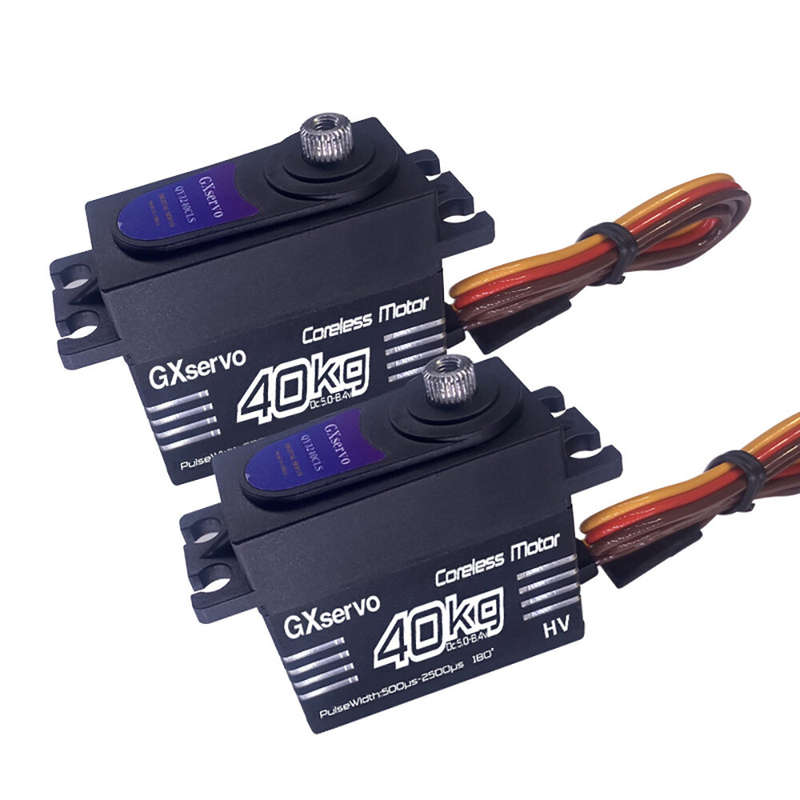

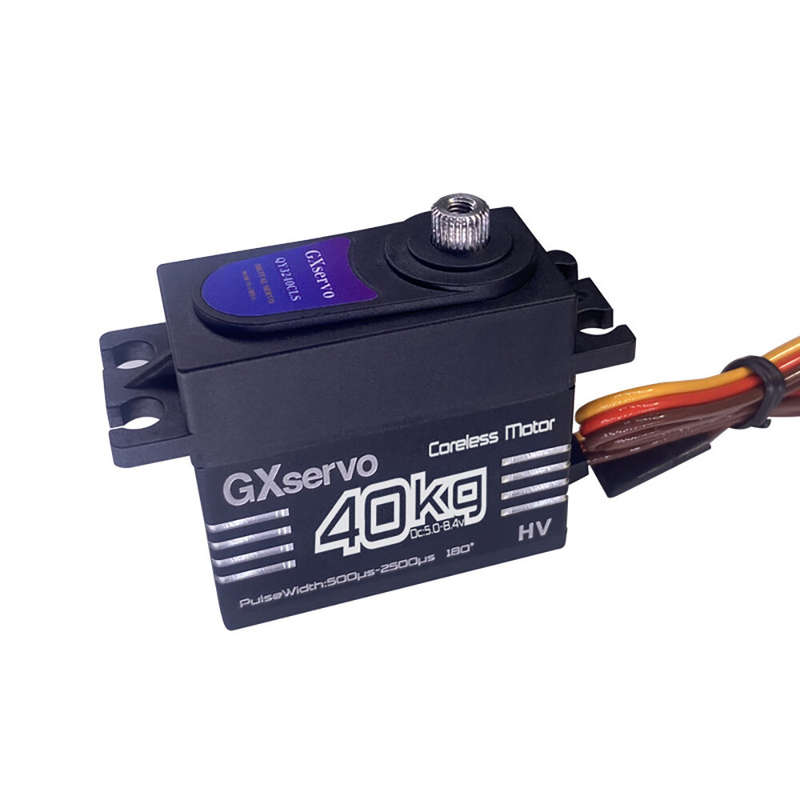

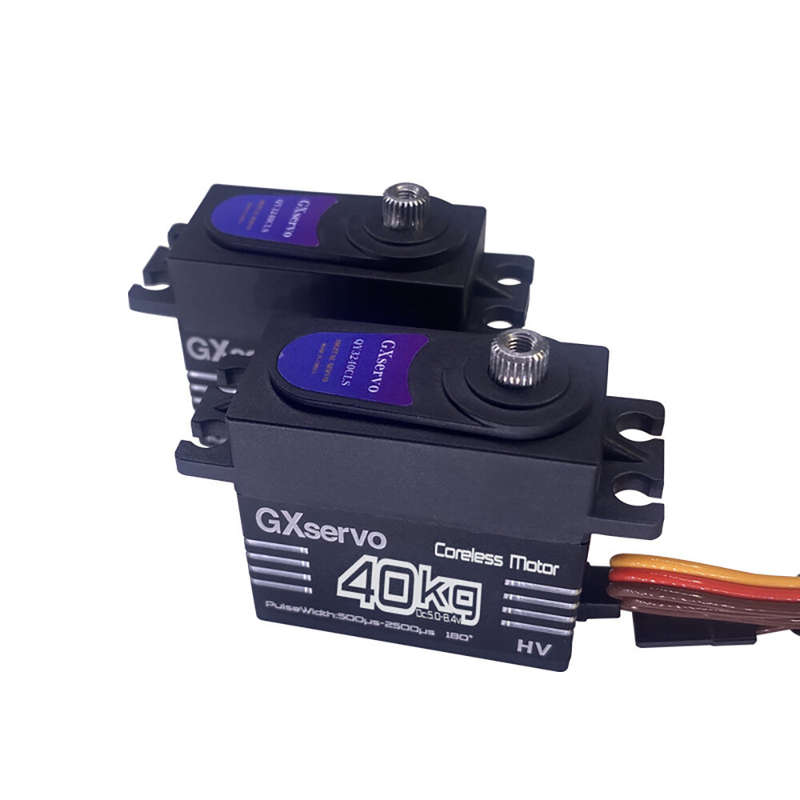

Model: QY3240CLS
Control System: Pulse width modulation control 1520s/333Hz
Optrating Voltage: 5-8.4V
Temperature: -20C°~+60C°
PMW Volts: 3.3-5V advised
Pulse Width Angle: 500-2500s | 180°Customizable or default 180° Direction: Anticlockwise 500—2500us the opposite rotation is customizable
Motor: BRUSHLESS
Dead band: 2sec
Gears Inside: 416+304Stainless Steel Gears 416+304 (The top cover and bottom shell are carbon fiber plastic)
Signal: Digital
Waterproof: IP65
Bearing: Double ball bearings
Programmable: support
Wire length: JR300mm
Net Weight: 68g (no inclidong accessory)
Size: 40×20×37mm
Features:
1. High Torque: With a maximum torque of 40KG, this servo provides powerful performance for various applications.
2. Hollow Cup Design: The hollow cup design reduces the weight of the servo while maintaining its strengt
