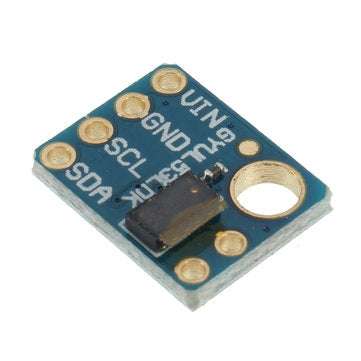

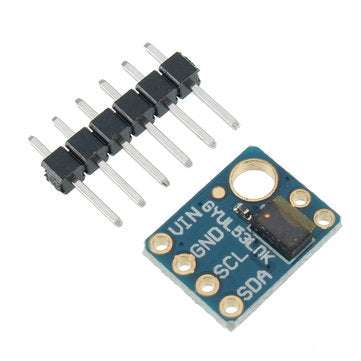

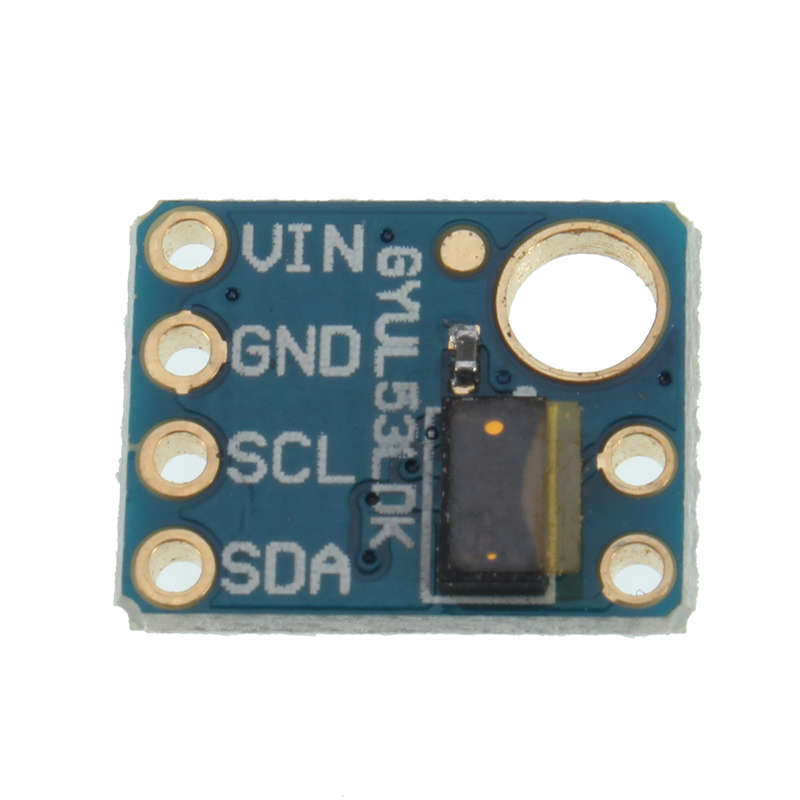

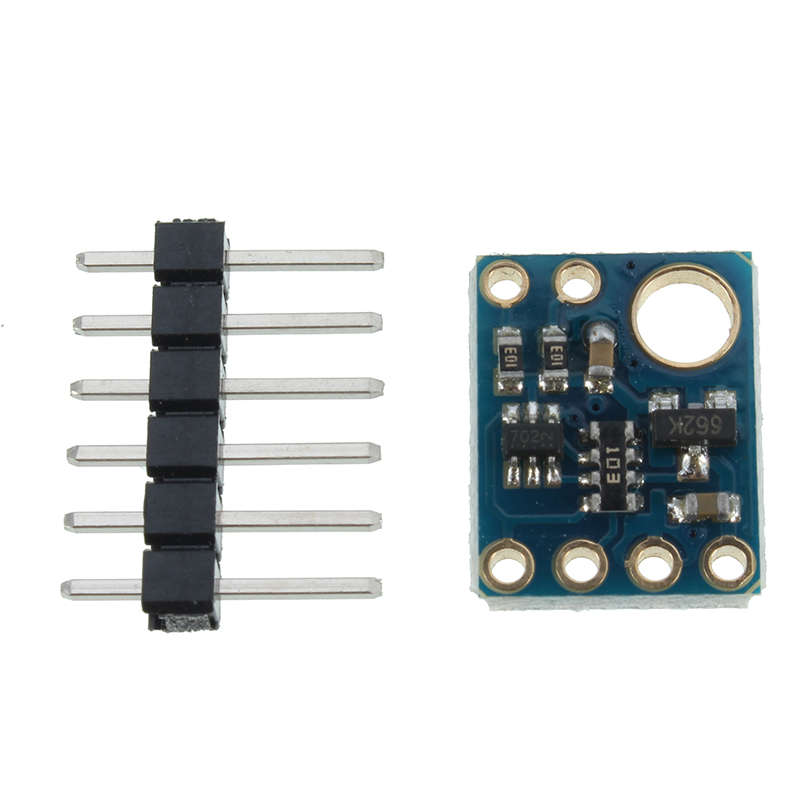

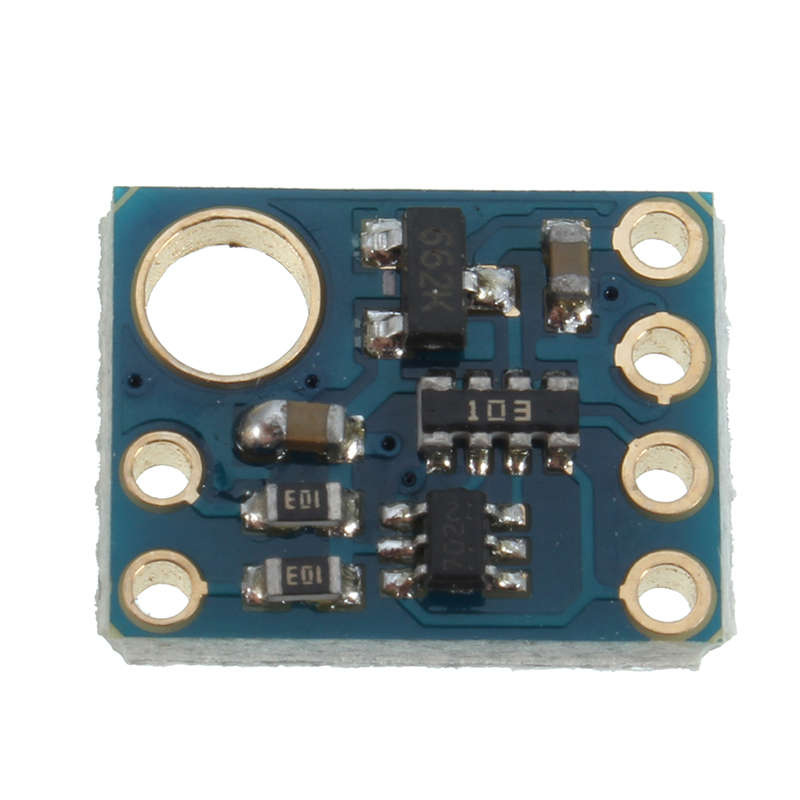

GY-530 VL53L0X Laser Ranging Sensor Module IIC Communication Ranging Module

Feature: The VL53L0X extends the ToF ranging length to two meters with an accuracy of ± 3%. Measurement speed faster than the previous generation, ranging time less than 30ms; more energy efficient, normal mode of operation power consumption is only 20mW, standby power consumption is only 5A. The sensor to complete the distance calculation within the I2C bus interface output data, thus the system's main controller needs to a minimum. The internal laser emits 940nm wavelengths of non-visible light and does not harm the eyes. This eliminates the problem of reddistribution with other infrared proximity detection sensors and enhances the immunity to external light sources. The sensor's digital architecture and automatic compensation make it possible to achieve high ambient light levels. VL53L0X sensing capabilities can support a variety of functions, including a variety of innovative user interface gesture sensing or proximity detection, sweeping robots and other appliances, wall detection, cliff detection, collision detection, sanitary products, such as: faucet, soap dispenser, Dry cell phones and irrigators, other targeted applications include laptop user presence detection or power switch monitors, unmanned aerial vehicles and IoT products. Specification: Using the chip: VL53L0X Power supply: 2.8V to 5V Communication: the IIC communication protocol (fully compatible with 3-5 v system) Module size: 10.5 mm * 13.3 mm Package includes: 1 x VL53L0X Laser Ranging Sensor







, ,
