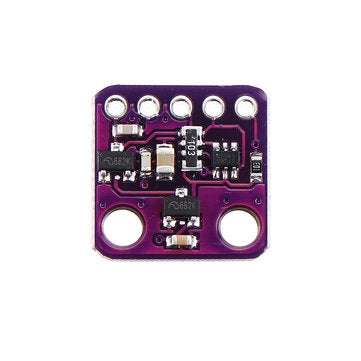

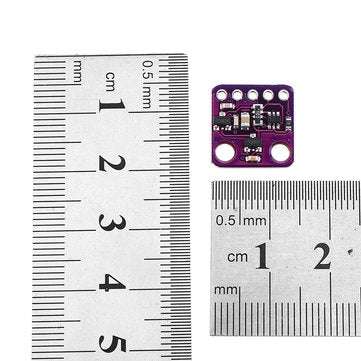

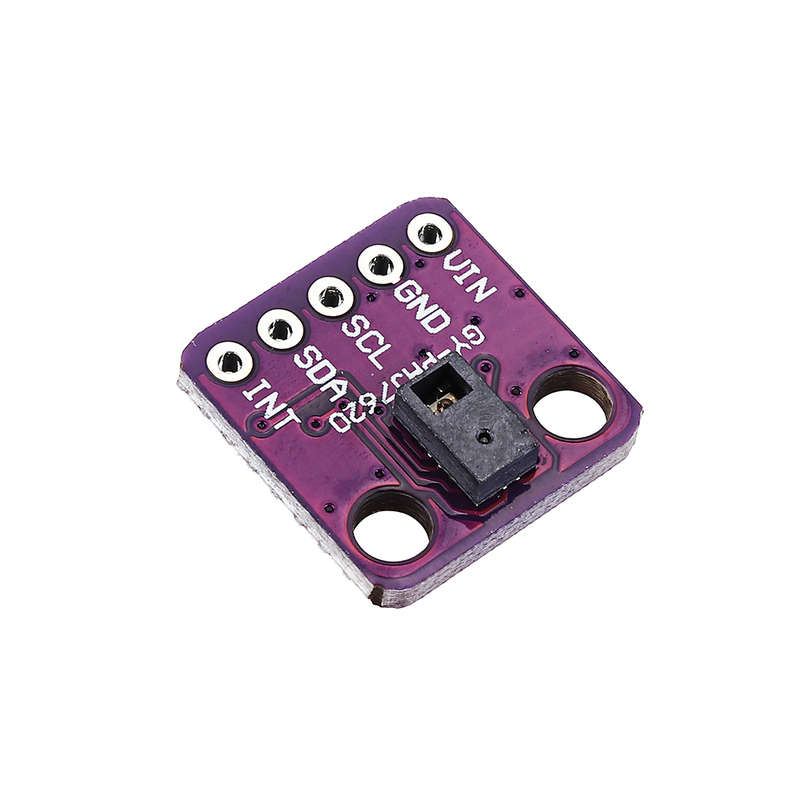

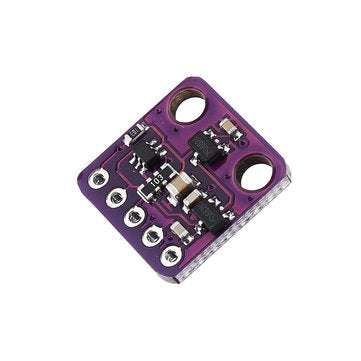

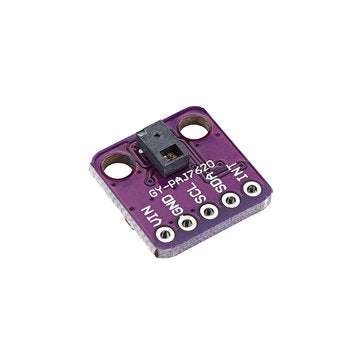

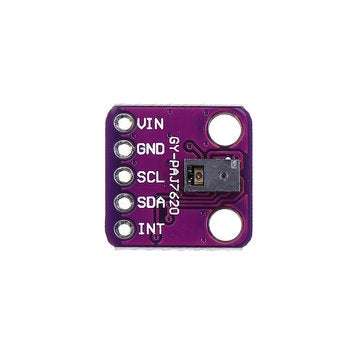

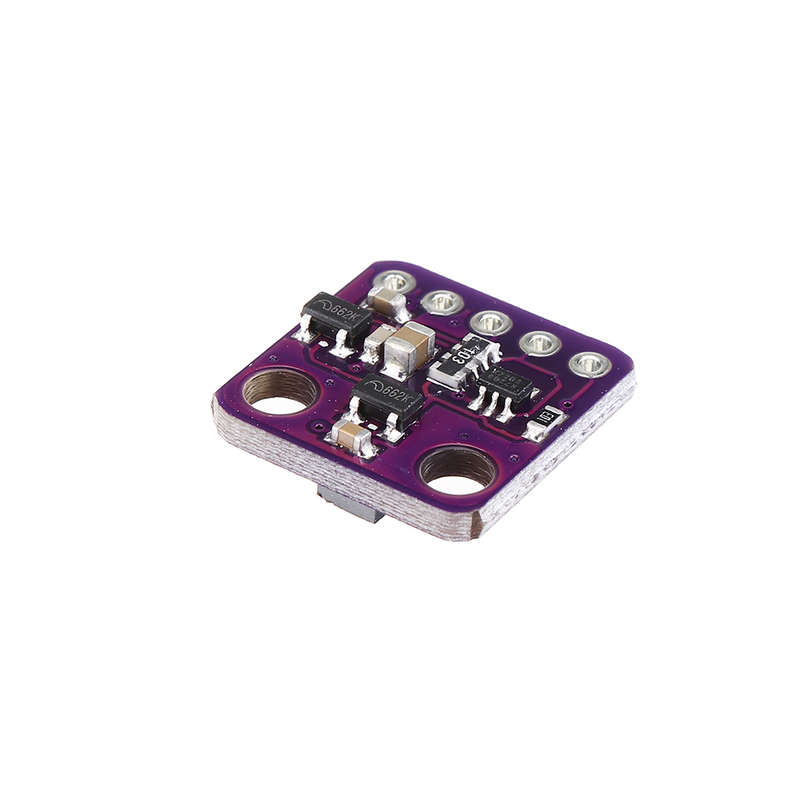

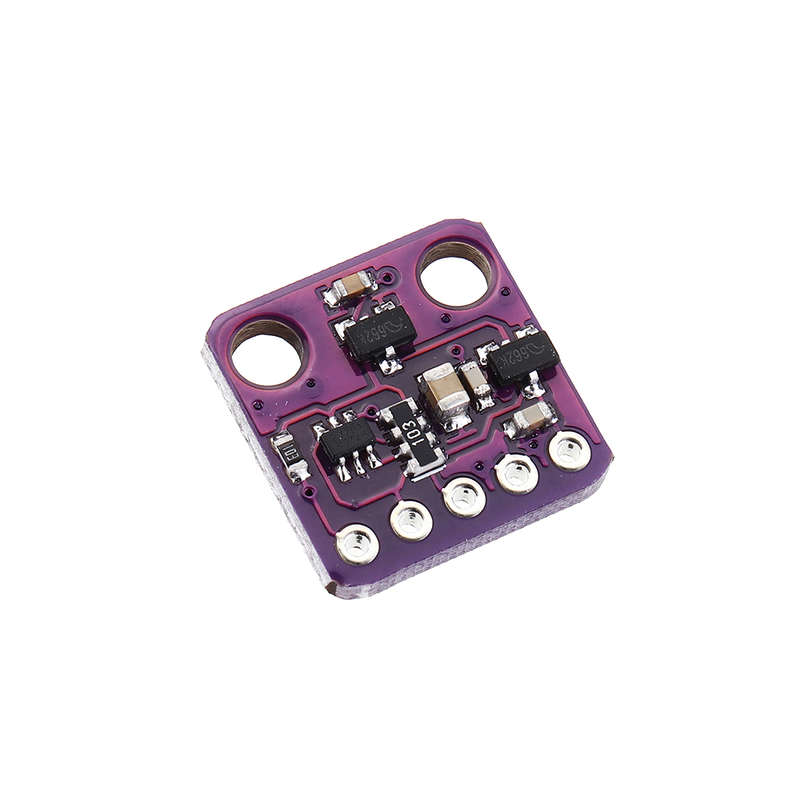

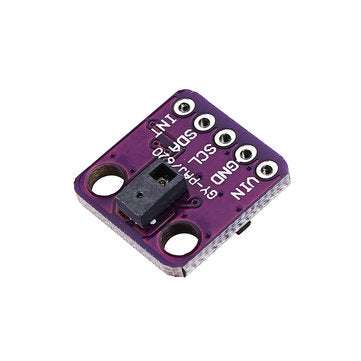

GY-PAJ7620U2 3.3V Gesture Recognition Sensor Module 9 Gesture Detection Motion Ranging Sensing Board

More document click to download:

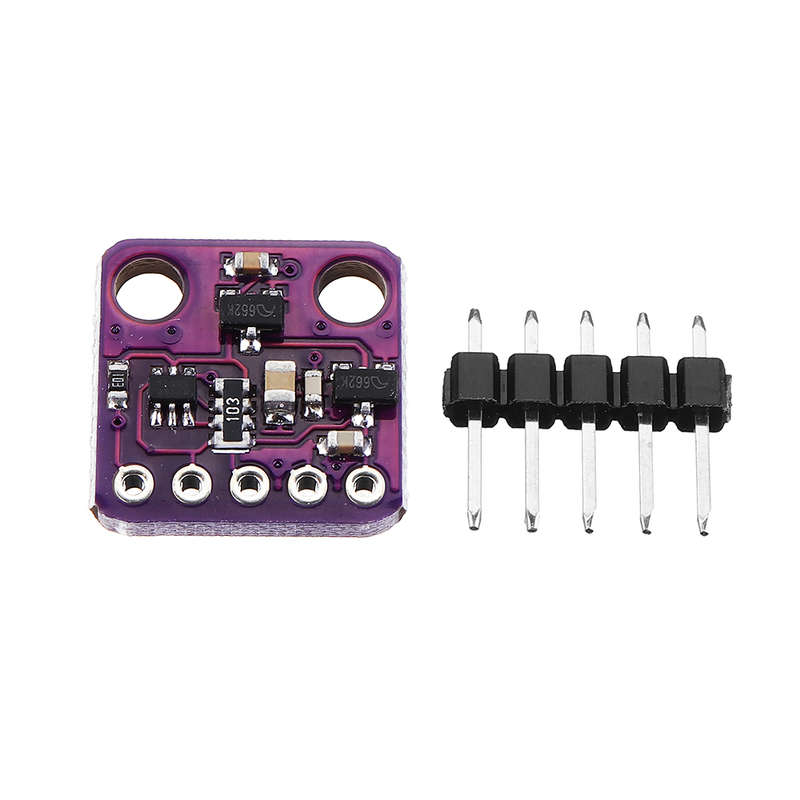

Description: PAJ7620U2 gesture recognition sensor. It can recognize 9 gestures including move up, move down, move left, move right, move forward, move backward,circle-clockwise, circle-counter clockwise, and wave. These gestures information can be simply accessed via the I2C bus. The PAJ7620U2 also offers built-in proximity detection for the purpose of sensing object approaching or departing. The PAJ7620U2 is designed with great flexibility in power-saving mechanism.The PAJ7620U2 is designed to operate from 2.8V to 3.3V over -40ﾣC to +85ﾣC and the pull-up voltage for the I2C bus and interrupt line is from 1.8V to 3.3V. Features: - Typical supply voltage is 2.8V to 3.3V and I/O voltage is 1.8V~3.3V - Nine gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave) - Gesture speed is 60ﾣ/s to 600ﾣ/s in Normal Mode and 60ﾣ/s to 1200ﾣ/s in Gaming Mode - Ambient light immunity: < 100k Lux - Built-in proximity detection - Flexible power saving scheme - I2C interface up to 400 kbit/s, Pull-up voltage from 1.8V to 3.3V - With ambient light noise cancellation Applications: PAD Phone Tablet Personal Computer Automobile Application Package Included: 1 x GY-PAJ7620U2 3.3V Gesture Recognition Sensor
