HANPOSE 17HS3401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planeta... (SIZE: RATIO19-1)

New

20 available

R967.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3938

92.61 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

651229819

SELECTED OPTION:
SIZE: RATIO19-1

Description:

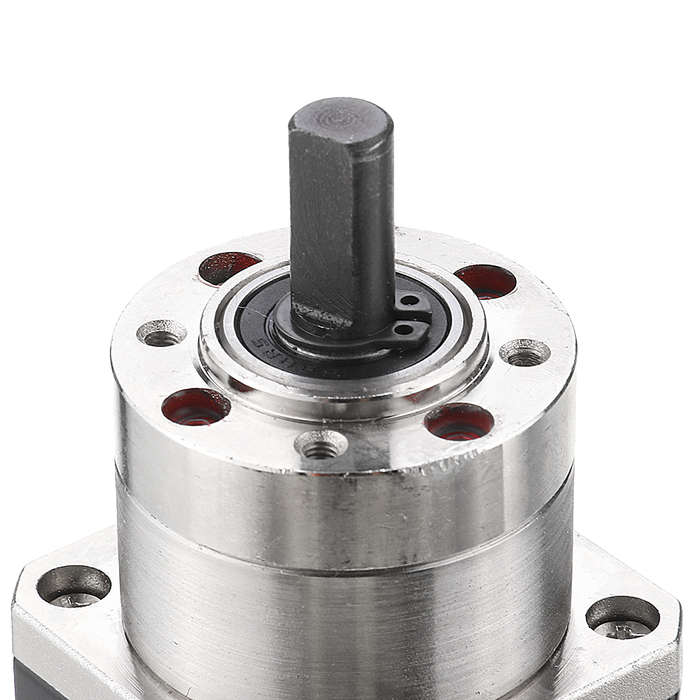

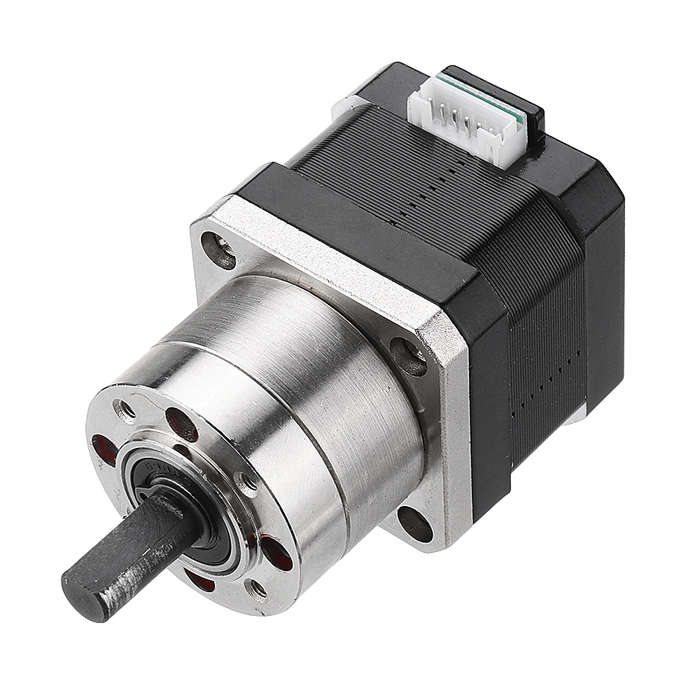

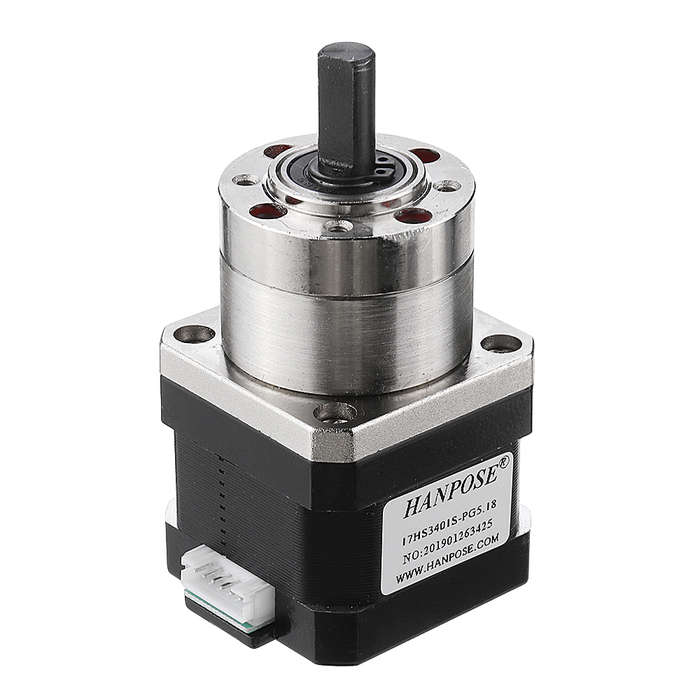

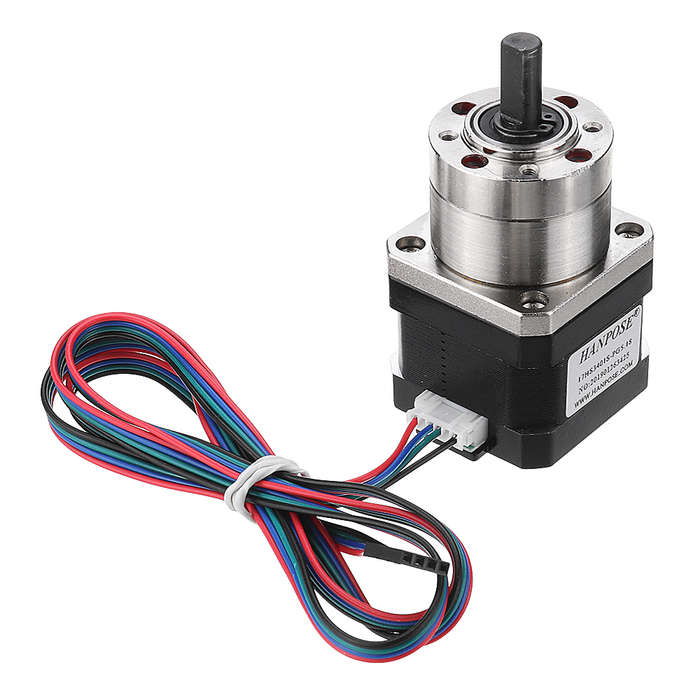

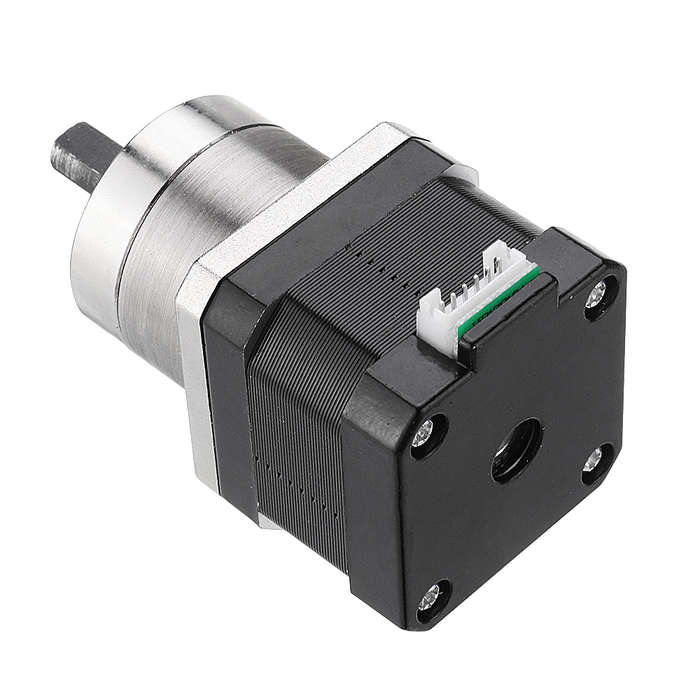

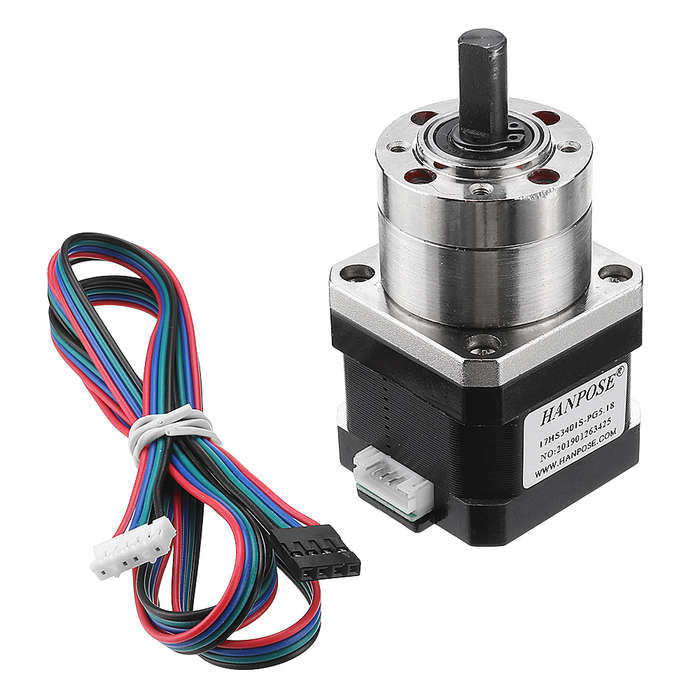

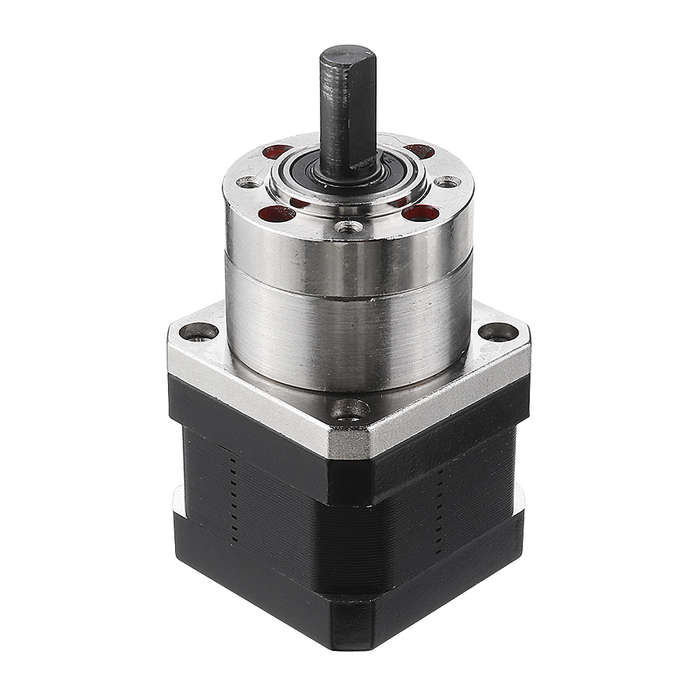

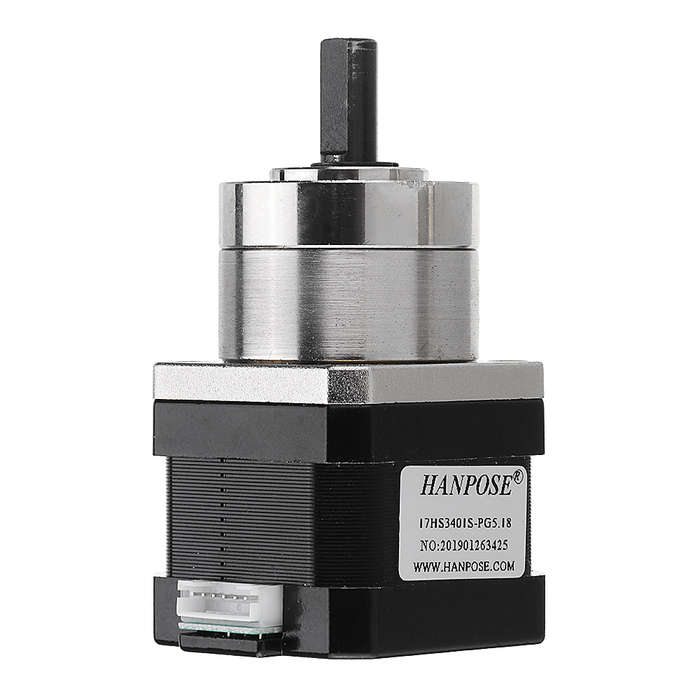

HANPOSE 17HS3401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor
Certification:CE,ROSH,ISO,FCC

Specification:

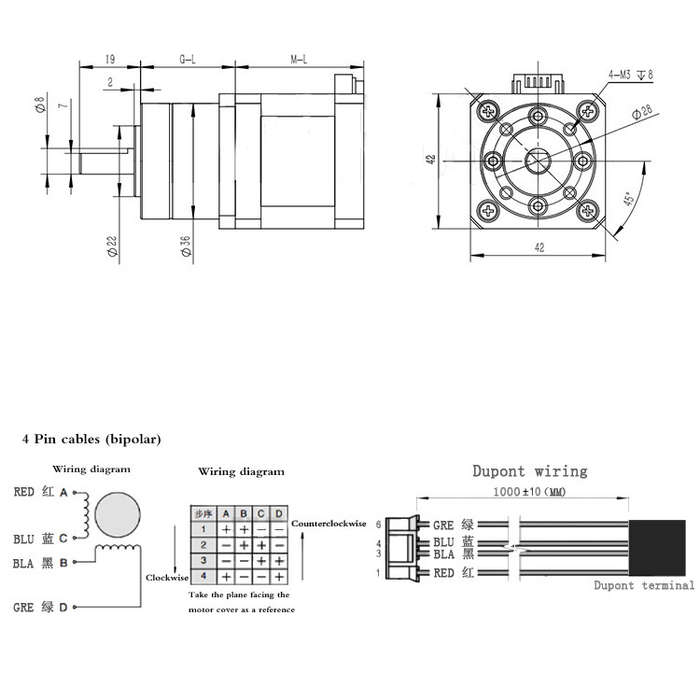

Product Model	17HS3401S-PGXXX
Stepper Motor Length	34mm
Shaft Size	D Shaft 16x8mm
Motor Lead	Plug

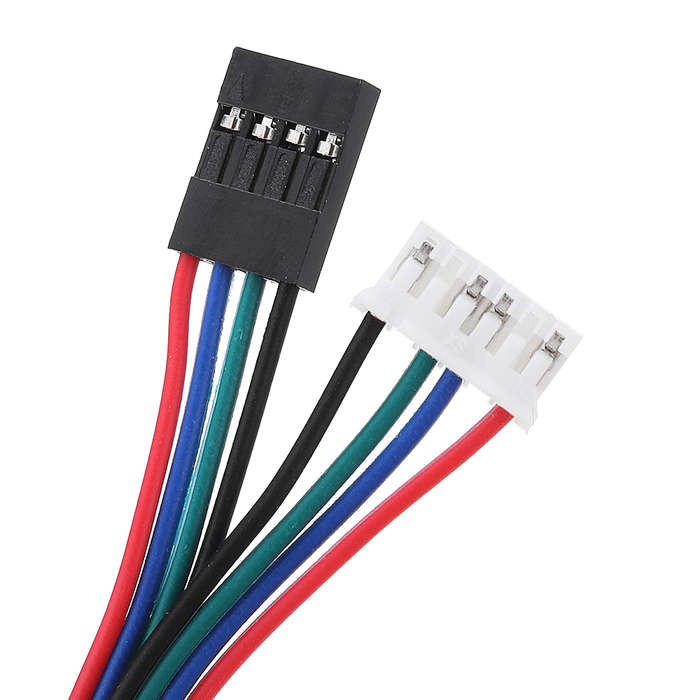

Including Wire	1M Dupoint Wire

Gear Reducer Ratio

Gearbox Model	3.71-1	5.18-1	14-1	19-1	27-1	51-1
Reduction	3.71	5.18	14	19	27	51
Gearbox Length	29	29	37	37	37	45

Planetary Gear Reducer Technical Parameters

Internal Gear Material	45# Steel
Output Bearing Form	Ball Bearings
Radial Load	a35N
Axial Load	a25N
Radial Clearance	a0.04mm
AxialClearance	a0.03mm
Backlash(No Load)	a2ﾣ

Note: ThePlanetary Gearbox Stepper MotorHoldingTorque=17HS3401-S Stepper MotorHoldingTorque *Reduction * 0.8
Warning: The Gear Box Can Bear Less Than 16 N.MTorque

17HS3401-S Stepper Motor Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated Current	Resistance /Phase	Inductance /Phase	Holding Torque	Detent Torque	Inertia Of Rotor	Lead
Model No.	( ﾣ)	(L)mm	(A)	()	(mH)	(N.cm)	(N.cm)	(G.cm2)	(No.)
17HS3401-S	1.8	34	1.3	2.4	2.8	28	1.6	34	4

Applications:
Used for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertising instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor, textile machinery stepper motor,
Cnc router stepper motor.
3D printer
