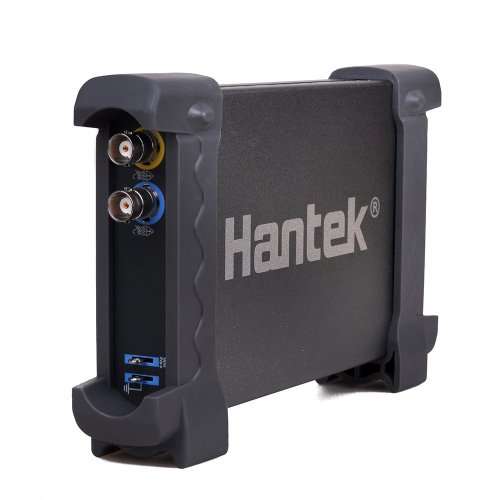

The Hantek-6022BE PC-based USB oscilloscope offers the perfect balance between power, price and portability. Use it in the field together with a laptop to do diagnostics, with no need for AC power, or use it in the lab as a handy instrument on the desk of every engineer or technician. This USB Oscilloscope offers 23 measurement functions, PASS/FAIL Check, waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot and also FFT and Labview. You can also save waveforms in the following: text file, jpg/bmp graphic file, MS excel/word file. The operation interface is similar to traditional benchtop oscilloscopes. The Hantek-6022BE USB oscilloscope comes at a very affordable price too. Basic Specifications Hantek-6022BE PC-Oscilloscope: - 2-Channel oscilloscope
- 48MS/s sampling rate
- 20MHz bandwidth
- Input sensitivity: 2mV-10V/DIV
- 8-bit resolution
- USB2.0 powered plug-and-play
- Input impedance: 1Mohm || 25pF
Software Features Hantek-6022BE PC-Oscilloscope: - Very intuitive PC software that mimics the look and feel of conventional oscilloscopes.
- Software support: Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA.
- 23 oscilloscope measurements including:
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle. - Pass / Fail Testing.
- Waveform data could be output to a text file, MS EXCEL, BMP, or JPG as time and voltage category.
- Serial bus triggering and decoding, bus protocol information can be quickly and intuitively displayed in table form.
- Waveform averaging, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
- FFT spectrum analyzer
- USBXI standard interface, easy to insert into USBXI case to constitute a combination instrument.
- Provide secondary development library DLL; Provide Labview/VB/VC
- Developing examples.
- Dimensions (mm): 205(L) x 120(W) x 35(H).

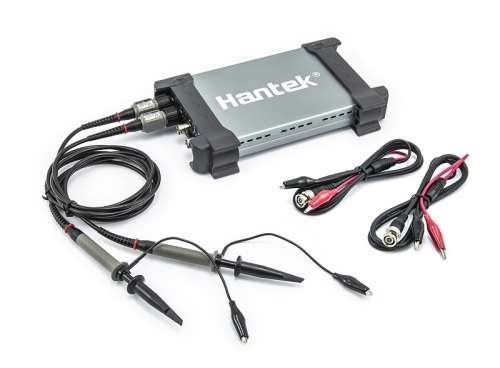

The 2-channel USB Oscilloscope Package Includes:
Hantek-6022BE PC-based Oscilloscope, two 20MHz oscilloscope test probes, USB cable, CD with PC software and user manual. Please note: We carry stock locally and ship from Pretoria on your payment. |
