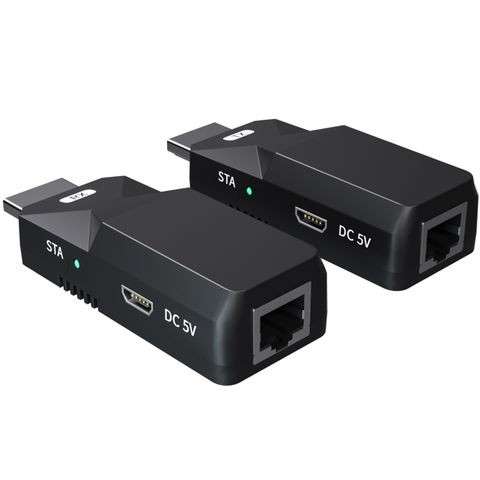

HDMI 50m Extender Over CAT5e/6 Network Ethernet Adapter (1080P) - Up to 50m

NB: The unit is rated at 50M but real-world use will range between 30m to 40m depending on cable quality.

NB: Solid Copper Cable is recommended.

Features

- Transmit HDMI video and audio signals up to 50m over a single CAT6 cable
- Support video resolution up to 1920x1080@60Hz 3D signal
- Compliant with HDMI 1.3 and HDCP 1.2 standards
- Support POC unilateral power supply
- Plug & play

Installing the HDMI Extender Over CAT5e/CAT6:

- Plug the transmitter into the HDMI input source such as a DVD, PS4, STB, etc.
- Connect a CAT-5e/6 cable to both the output of the transmitter and the input of the receiver.
- Plug the HDMI receiver into the HDMI display such as TV, Projector, etc.

Specifications

VIDEO

- Standards: HDMI 1.3, HDCP 1.2
- Maximum pixel clock: 165MHz
- Maximum data rate: 6.75Gbps
- Resolution: 1980x1080 @ 60Hz, 3D
- Connector: HDMI-A
- Impedance: 100

ETHERNET

- Interface: RJ45
- Transmission distance: CAT6 - 50M

OTHER

- Power Supply: DC 5V
- Power dissipation: Max 3W
- Operating Temperature: -5°C ~ +70°C
- Operating Humidity: 5% ~ 90%
- Dimensions: 70 x 25 x 26mm

What's in the Box

- HDMI Transmitter x1
- HDMI Receiver x1
- USB-A to Micro USB Cable x1
- User manual x1
