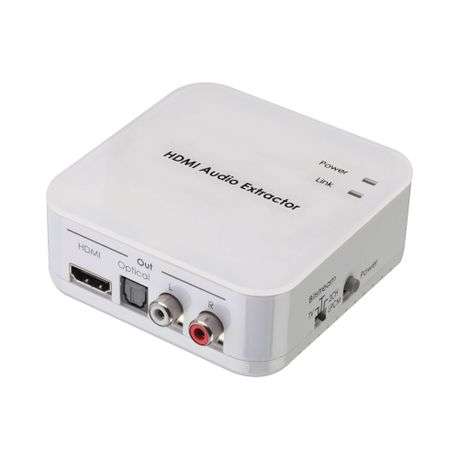

HDMI Audio Extractor

HDMI Audio Extractor (up to LPCM 2CH)

?The HDMI Audio Extractor allows you to extract audio signals from your HDMI source. When connecting to a TV or display you don't always get the best audio, or in the case of a PC monitor, no audio at all. So with this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or analog stereo (L/R) audio. This means that you can output your audio signal to external speakers or extend your audio signal pathway.

Compliant with HDMI, HDCP 1.2 and DVI 1.0
Supports HDMI audio sampling rates up to 192 kHz
Supports Optical S/PDIF sampling rates up to 48 kHz
Supports TMDS clock frequency rate 225 MHz
Supports high-bit-rate (HBR) audio
No HDMI output connection is required to receive audio at the analog and optical outputs
Maximum input and output HDMI cable length can run up to 15 meters at 1080p at 8-bit resolution
Low power consumption
Supports EDID management for audio formats, can switch among built-in EDID (LPCM 2CH/Bitstream) and external EDID (TV)
Supports 3D signal

What's in the box
1 x HDMI Audio Extractor
