Features & Specs:
The 120m HDMI extender use single cat5 or cat-6(recommended) cables up to 120 meters. HDMI extender over cat5/cat6 is designed to convert HDMI signal to standard TCP/IP and transmit by internet cable or Lan. With the advantage of TCP/IP standard, it can transmit HDMI signal source from HD STB, DVD, PS3, HDMI display etc. to HD projector, DLP, LCD, LED and other audio-visual equipment.

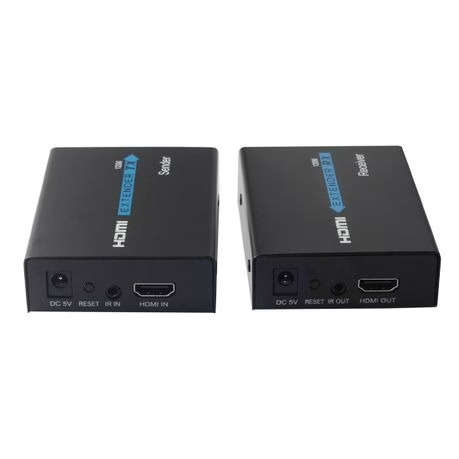

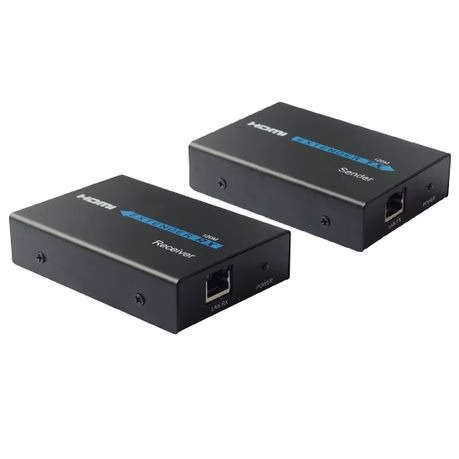

Each set includes one sender and one receiver.
Follow the standard of IEEE-568B
Support resolution up to 1080p full HD
Support Ethernet bandwidth 120m
HDCP compliant
Supports resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz

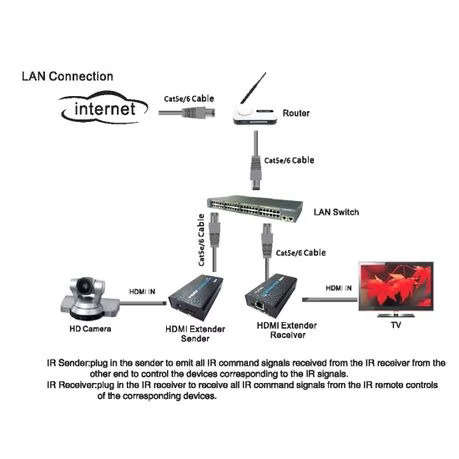

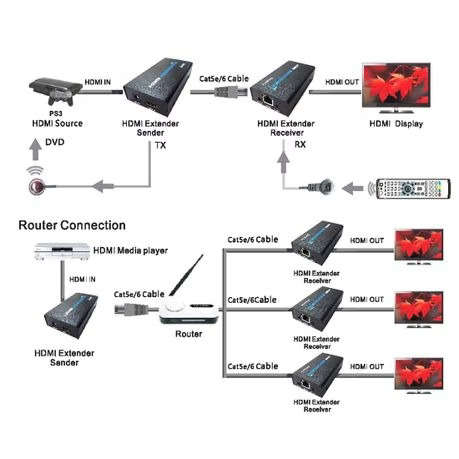

Extends by router connection or LAN connection, cable length requirements are as follows:
A. CAT5 80 meters maximum between two devices
B. CAT5e 100 meters maximum between two devices
C. CAT6 120 meters maximum between two devices
