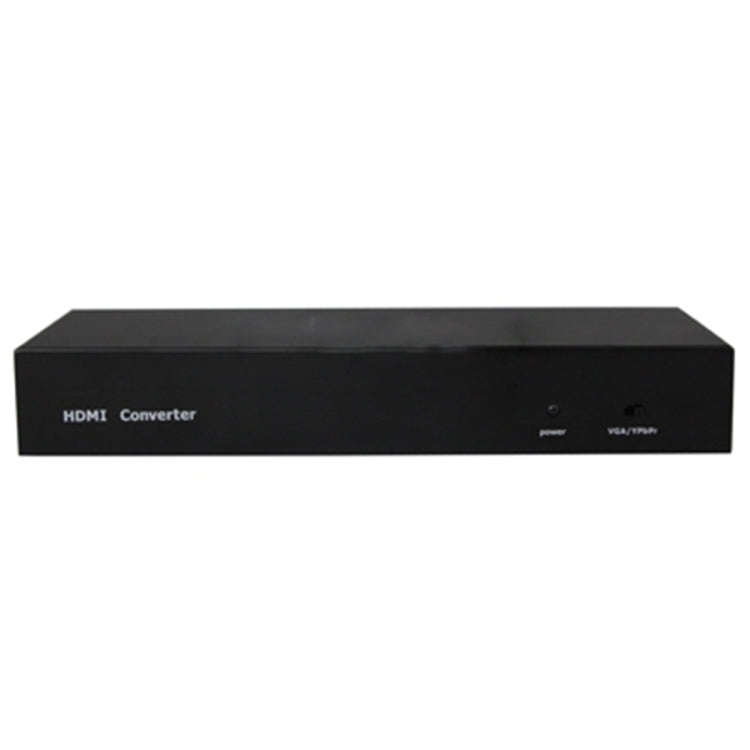

HDMI to YPbPr / VGA Multi-media Switcher

1) HDMI resolution: HDMI 1.2a

2) Input Video signal: 0.5-1 5Volts p-p

3) Input DDC signal: 5VoJts p-p (TTL)

4) VGA or YPbPr output: Support up to UXGA and 1080l (60Hz)

5) Audio output: R/L Analog and optical

6) Max transmission band with: 5.1Gbps

7) Max working current: 600rnA

8) Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

9) Operating Temperature range: (-15 to +55'C)

10) Operating Humidity range: 5 to 90%RH (No Condensation)

11) Dimension (L x W x H): 174x70x20 (mm)

12) Weight: 750g

FEATURES

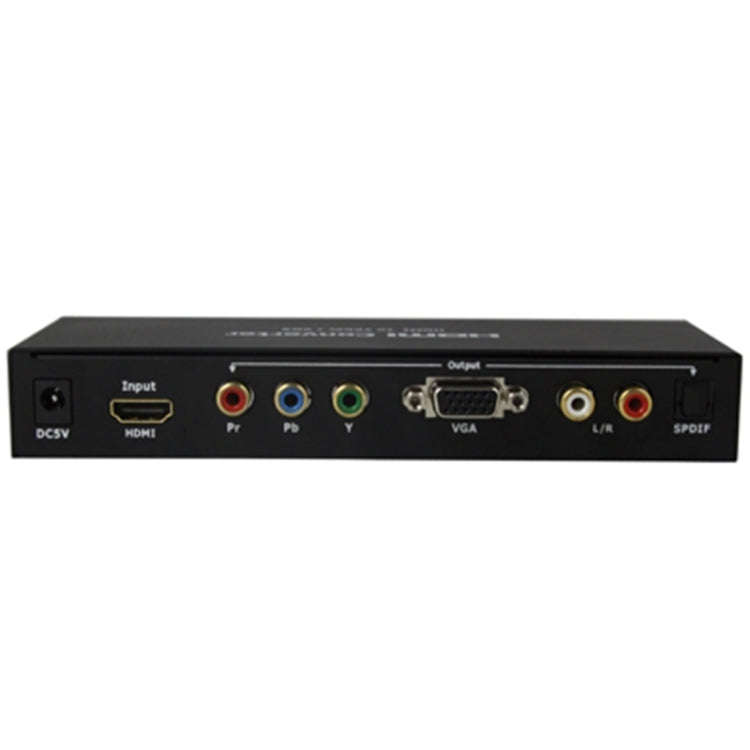

1) One HDMI input signal convert to one YPbPr + SPDIF or VGA+SPDIF sink device

2) Support video input: HDMI 12a

3) Support audio output: SPDIF(Optical)+ R/L analog

4) Support output: Support up to UXGA and 1080l(50760Hz),the same format as input

5) HDCP 1.2 protocol compliant

6) LED indication: when source or sink is working, LED relative to is light.

7) No loss of quality

8) Installs in minutes

9) Need DC5V/1A power supply
