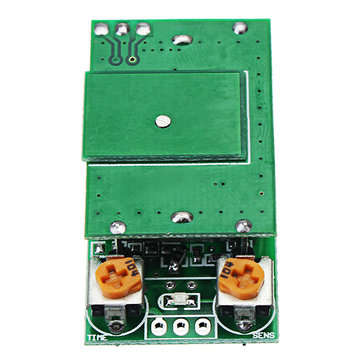

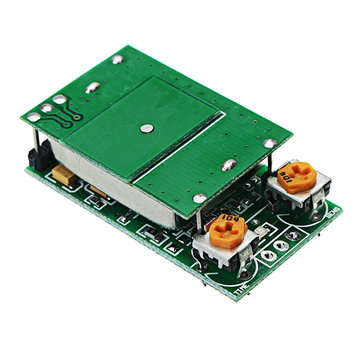

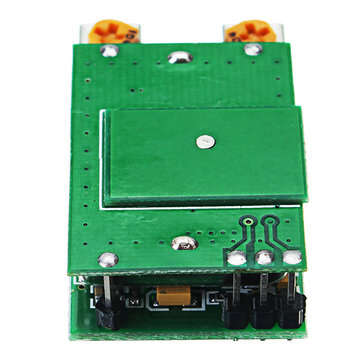

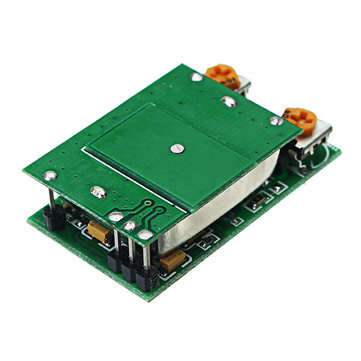

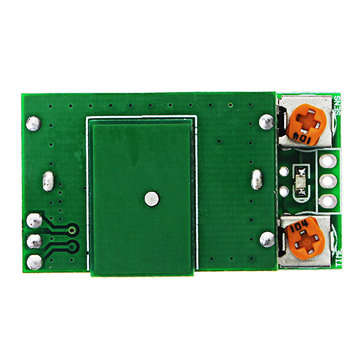

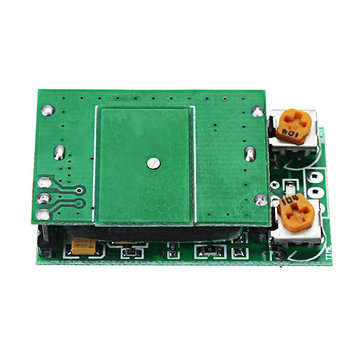

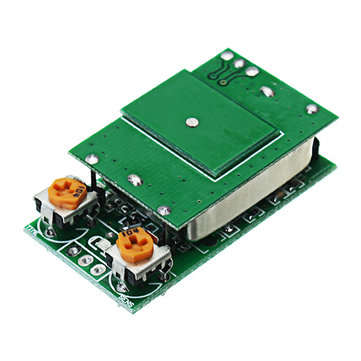

HFS-DC06 5.8GHz Microwave Radar Sensor Module DC 5V ISM Waveband Sensing 12M

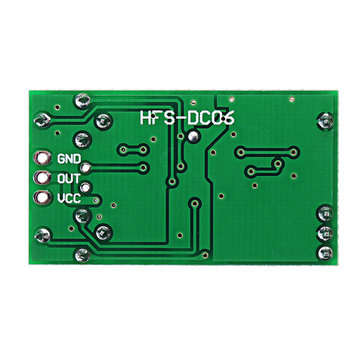

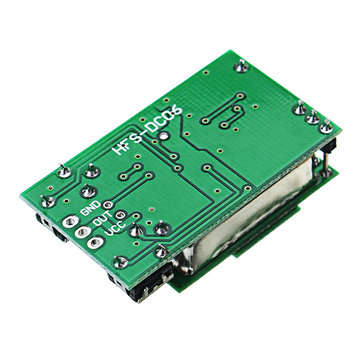

Specification: ? Model: HFS - DC06 Frequency: 5.8 G Band: ISM band Appearance size: 39 x 22 x 11mm Input voltage: DC12V Minimum input current: 30mA Output mode: 5V level signal (high level output when triggered) Connection mode: VCC power supply anode, GND power supply negative pole GND and OUT receive level signal output Installation height: 2-6M Induction distance: 12 meters ahead Induction Angle: the front conical 360 degrees Induction time: for the convenience of testing, the induction delay time is set for 2S ? Features: ? 5.8G frequency, normal installation and use without mutual interference, high stability, anti-interference ability, small size, suitable for a variety of products that require DC microwave module ? Precautions: ? 1. The supply current should be greater than 30mA to drive the module, the voltage should be stable and can not have large fluctuations, otherwise it will trigger a continuous trigger (load lamp may continuous self-trigger or not extinguished) 2. The product should not be installed next to a large area of the metal body, can not be placed in a fully enclosed metal shell, which will affect the performance of this product or can not be used normally ? Package includes: ? 1 x Microwave Radar Sensor Module
