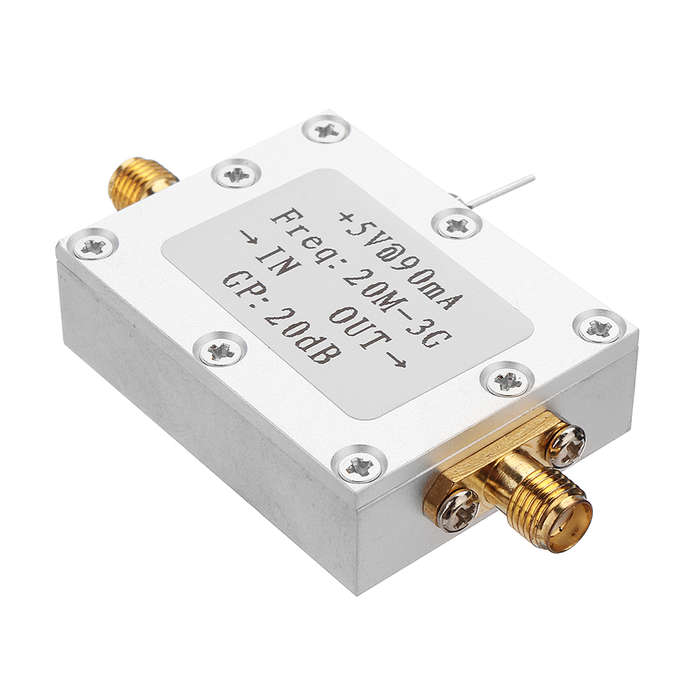

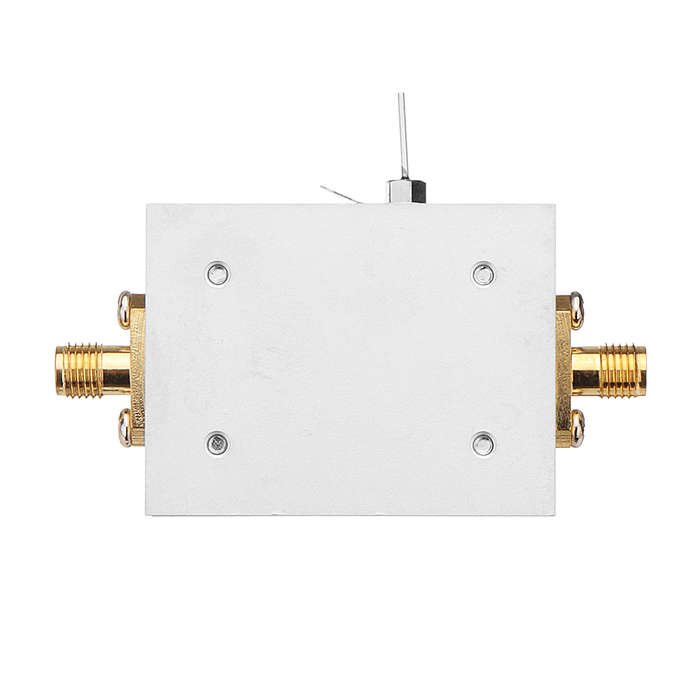

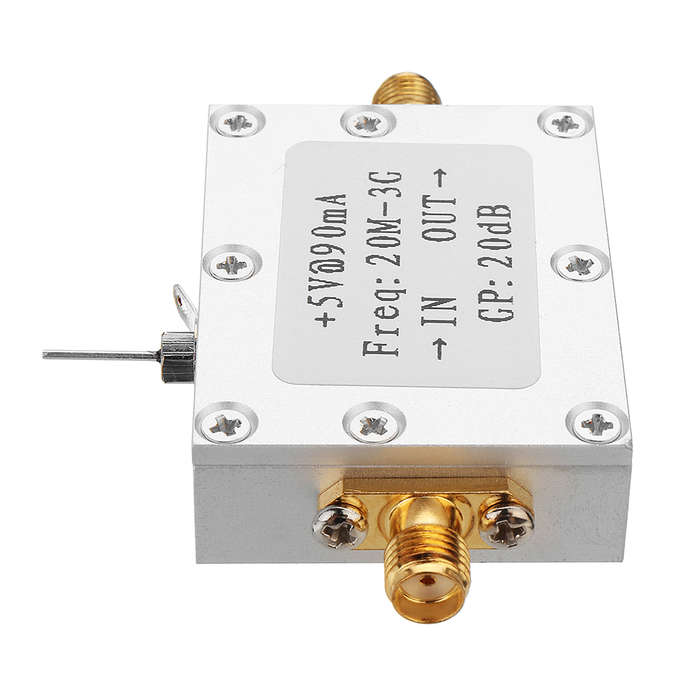

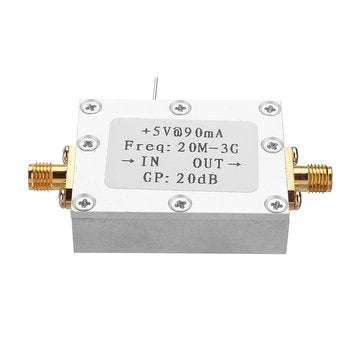

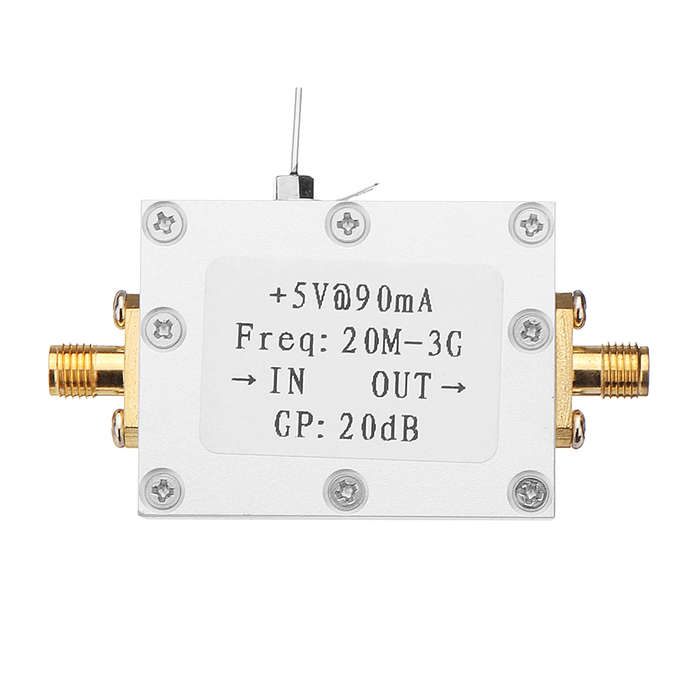

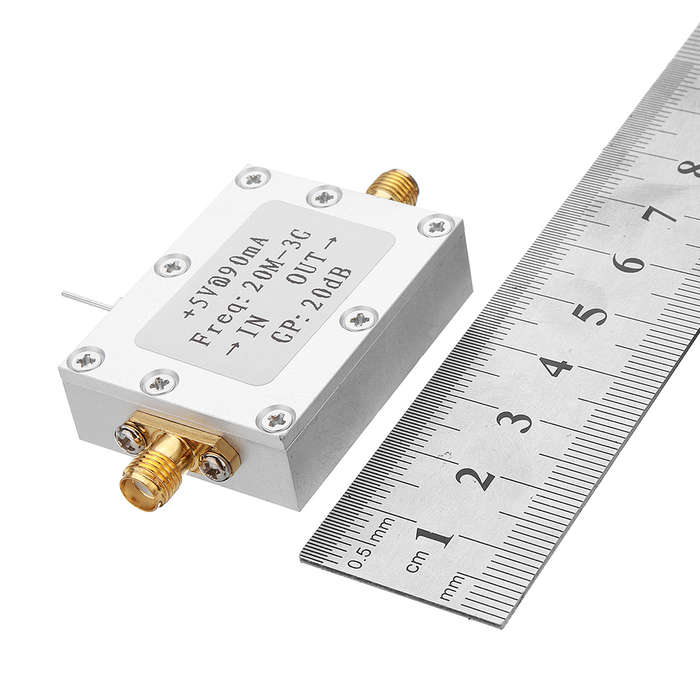

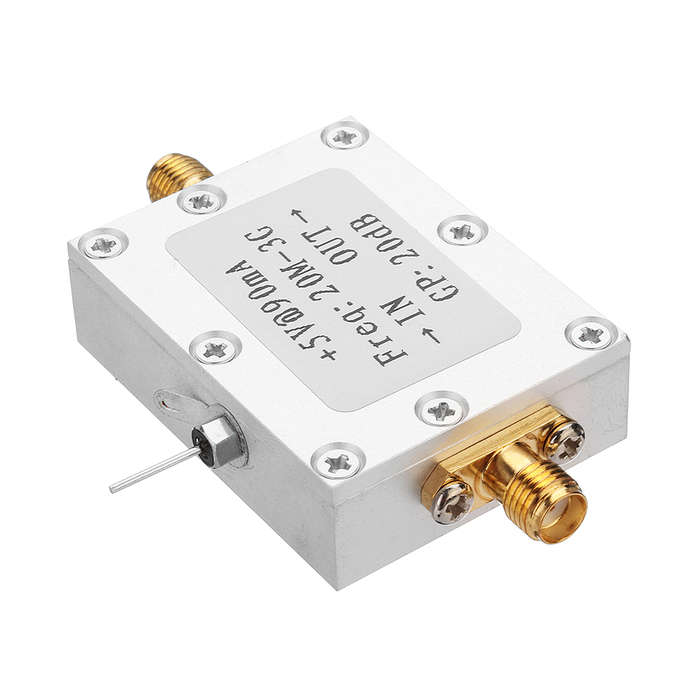

High Linearity Wideband RF Amplification 20dB 0.02-3G High Performance Medium Power Amplifier Module

New

20 available

R687.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4014

92.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654100106

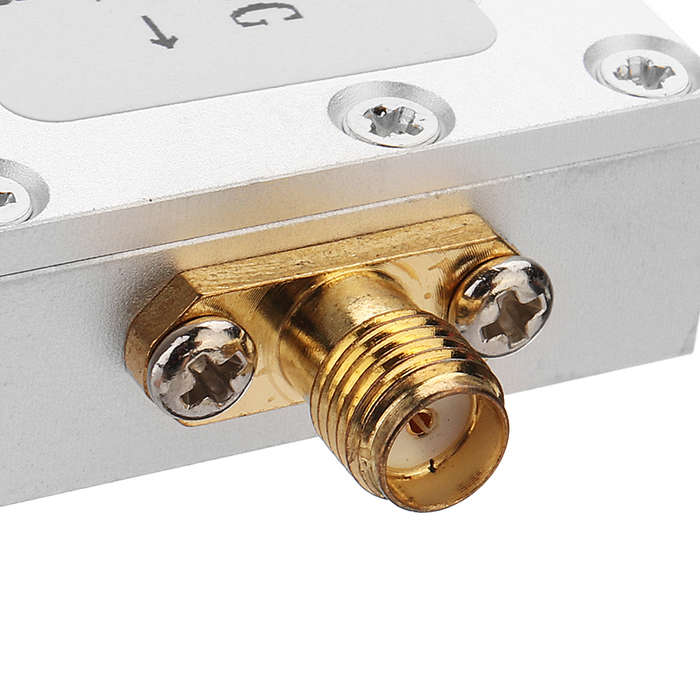

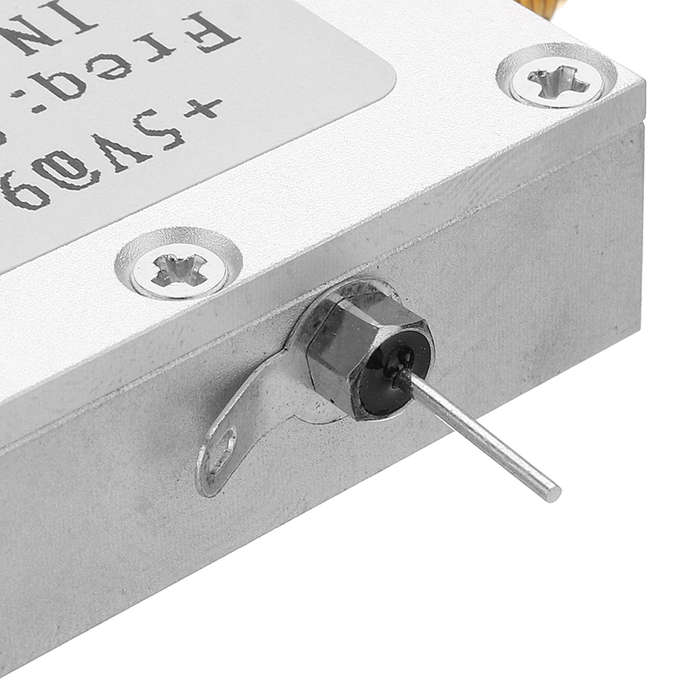

Feature: The high-performance InGaP HBT MMIC amplifier uses a Darlington configuration and an active bias network. The active bias network provides stable current variation with temperature and test process. Designed to run directly from a 5V supply, there is no need for a buck resistor compared to a typical Darlington amplifier. The product is designed for high linearity requiring small size and minimal external 5V gain. Description: 1. Supply voltage: typical +5V (typical current value 90mA) 2. Gain: Typical value 20dB@2G Input and output impedance: 50 ohms 3. Maximum output power: P1db +20dBm (@2GHz 4. Input signal: <+10dBm (output signal is distorted when input is greater than +10dBm) 5. Bandwidth: 0.02-3GHZ (the gain is slightly different at different frequencies,) 6. Noise figure: 4.1dB@1GHz Package includes: 1 x RF Amplifier
