High Voltage DC 12V 24V to 85-235V Power Supply Boost Module For Nixie Tube Glow Tube Magic Eye

New

20 available

R560.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3921

92.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651230187

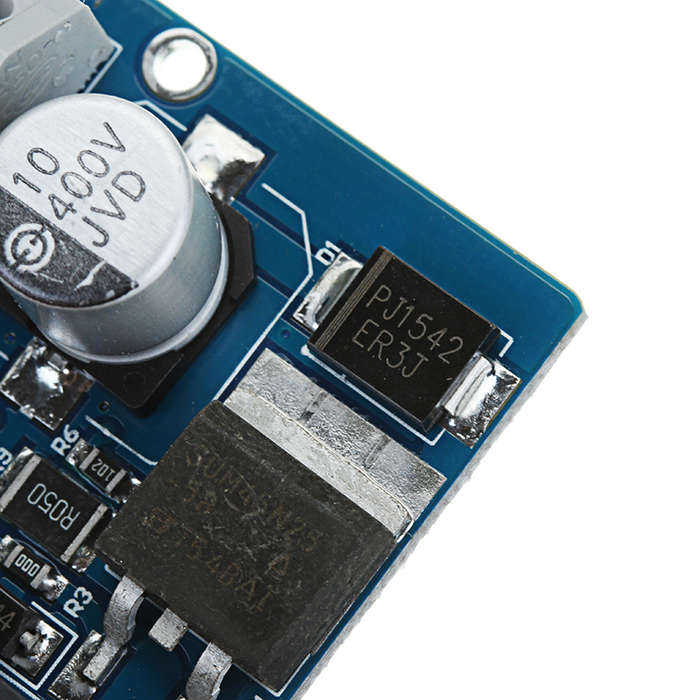

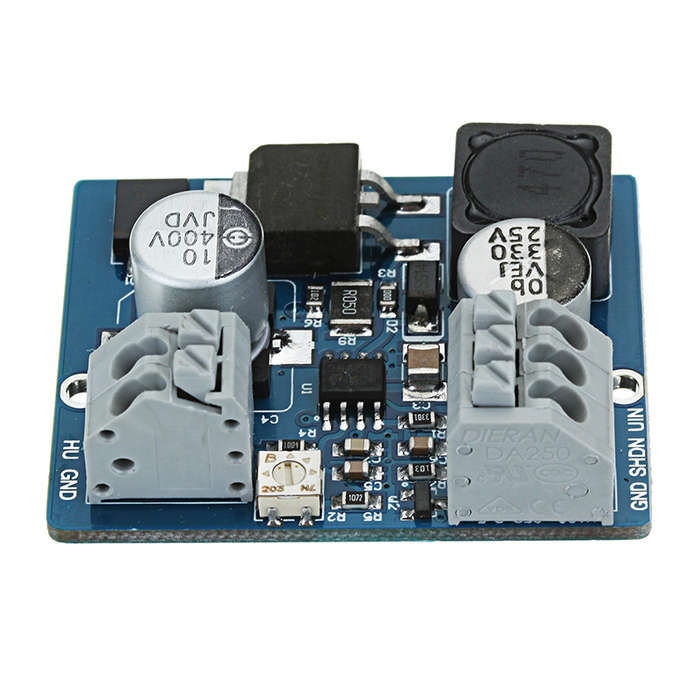

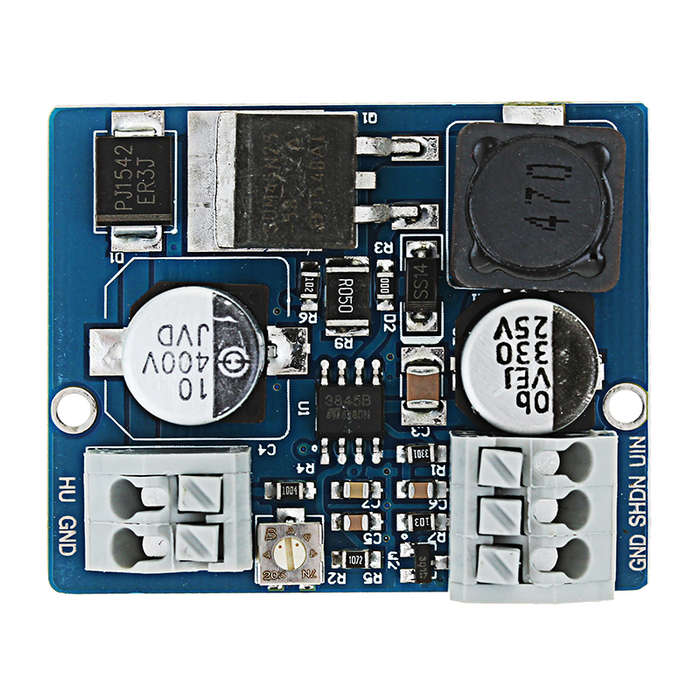

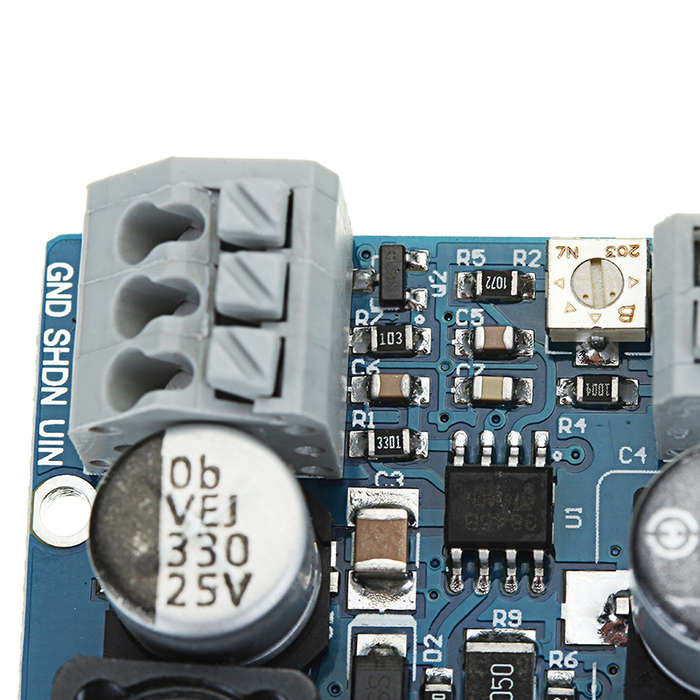

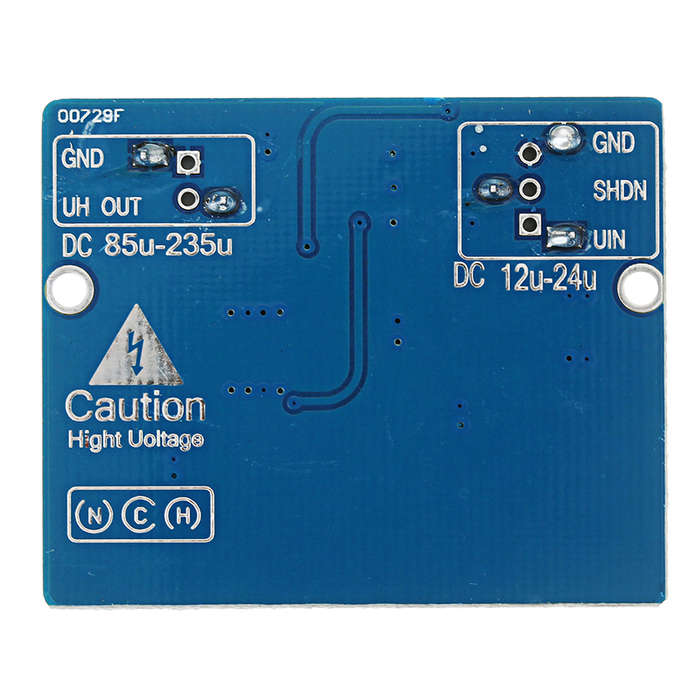

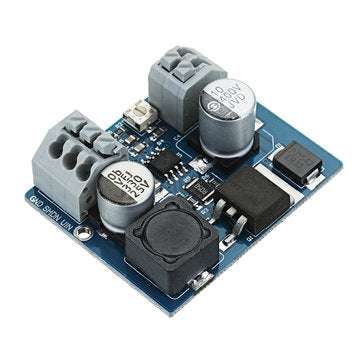

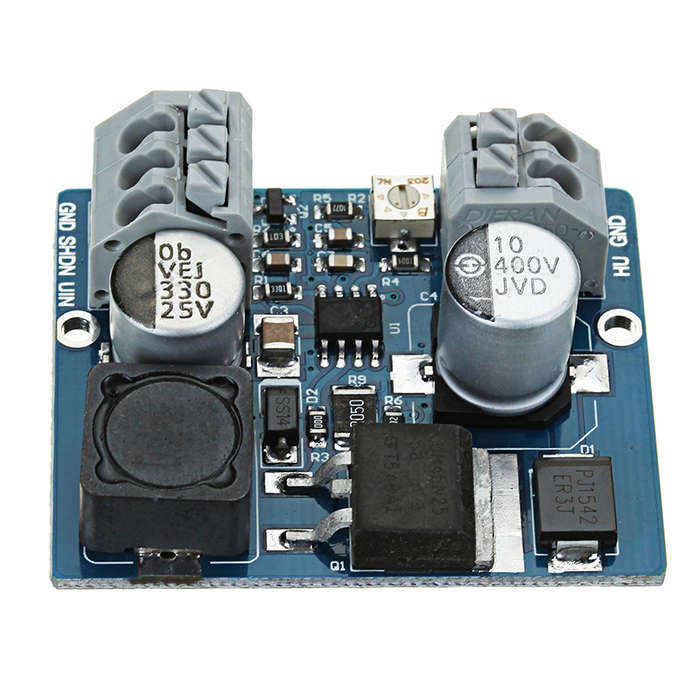

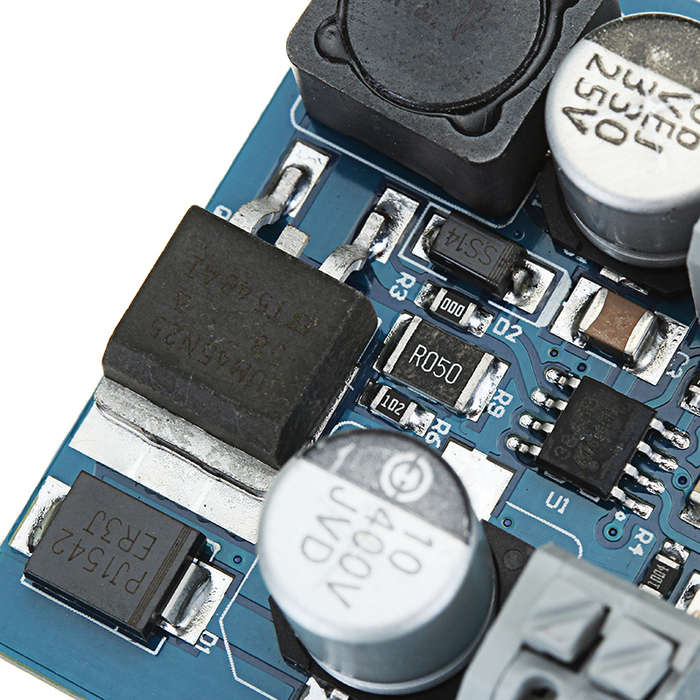

Feature: NCH6100HV high voltage power supply module is miniature step-up DC-DC converter with high efficiency and low heat operating from 12v to 24v DC input, with an output of 85~235V DC set by a precise potentiometer. Designed for Nixie tube, VFD tube, Magic eye etc. shutdown mode are controlled via SHDN Parameters: Input voltage: DC 12-24V Output voltage: DC 85-235V Dimensions: 45mm x 37mm x 15mm

Feature	Symbol	Minimum	Typical	Maximum	Unit
Input voltage	Vin	10	12	24	Volts
Output voltage (Io=10mA)	Vout	85	---	235	Volts
Output current (Vin=12V Vout=90V)	Iout	0	45	95	mAmps
Output current (Vin=12V Vout=170V)		0	35	55	mAmps
Output current (Vin=12V Vout=220V)		0	24	35	mAmps
Output control terminal voltage (SHDN)	Vshdn	1.2	---	Vin	Volts
Output control terminal current (SHDN)	Ishdn	---	---	2	mAmps
No-load quiescent current(Vin=12V Vout=170V)	Ioff	---	15	---	mAmps
Conversion efficiency(Vin=12-18V, 50%-80% rated load)	Efficiency	---	80	---	%

Note: 1. The SHDN pin can be left floating and the floating status output will be enabled. 2. This module does not have anti-reverse function. Please ensure that the input voltage polarity is correct. Package includes: 1 x DC Power Supply Module
