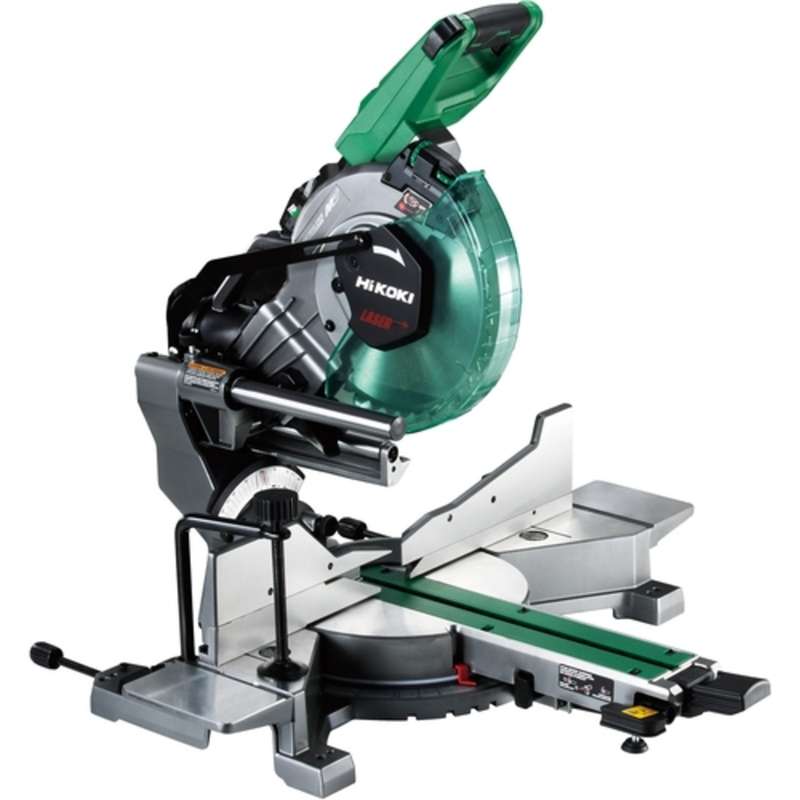

Hikoki MULTI VOLT (36V) Cordless Brushless Slide Compound Miter Saw 255mm (Bare Tool) | C3610DRA-E4.
From Hitachi comes their latest products under the new HiKOKI name.
The HiKOKI C3610DRA/JAZ 2×8.0/4.0Ah Li-ion 255mm MultiVolt Dual Bevel Mitre Saw features a high-efficiency brushless motor for long life and less maintenance. The Compact slide system allows slide cuts with zero rear clearance while the laser guide system keeps all cuts accurate.
The C3610DRAJAZ can cut up to 374 cuts per charge with the multivolt batteries and those batteries are compatible with HiKOKI's full 18v range.
Deisgned for Professionals, tradesmen and DIY enthusiasts.
**NB HiKOKI Circular Saws supplied in the UK DO NOT come with the guide, the guide can be purchased seperately.**
Features and Benefits:
High efficiency brushless motor long lifetime with reduced maintenance
Batteries are compatible with existing Hitachi 18V tools
Laser guide system for high cutting accuracy
Compact slide system allows slide cuts with zero rear clearance
Fast cutting speedUp to 374 cuts per charge (in 2 x 4 SPF when using BSL36B18 battery. Varies according to material and operating conditions)
Bevel cuts up to 48° left & right
Mitre cuts up to 55° left and 60° right
LED worklight for high visibility and safer working
Technical Specifications:
Blade Dia. 255mm (10)
Capacity
(H x W) 0°(Right Angle) with anchor plate 89 x 292mm (3-1/2 x 11-1/2)
without anchor plate 64 x 318mm (2-1/2 x 12-1/2)
Miter Left/Right 45° with anchor plate 89 x 204mm (3-1/2 x 8)
without anchor plate 64 x 222mm (2-1/2 x 8-3/4)
Bevel Left 45° with anchor plate 45 x 292mm (1-3/4 x 11-1/2)
without anchor plate 41 x 318mm (1-5/8 x 12-1/2)
Bevel Right 45° with anchor plate 25 x 292mm (1 x 11-1/2)
without anchor plate 19 x 318mm (3/4 x 12-1/2)
Miter Left/Right 45° +
Bevel Left 45° with anchor plate 45 x 204mm (1-3/4 x 8)
without anchor plate 41 x 222mm (1-5/8 x 8-3/4)
Miter Left/Right 45° +
Bevel Right 45° with anchor plate 25 x 204mm (1 x 8)
without anchor plate 19 x 222mm (3/4 x 8-3/4)
Voltage 36V
No Load Speed 4,000/min
Miter Angle Right 0 60°
Left 0 55°
Bevel Angle Right 0 48°
Left 0 48°
Positive Miter Angle Stop 0, Right and Left 15°, 22.5°, 31.6°, 45°
Dimensions 778 x 792 x 686mm (30-5/8 x 31-3/16 x 27)
Weight*2 20.6kg (45.5lbs.) with BSL36B18
