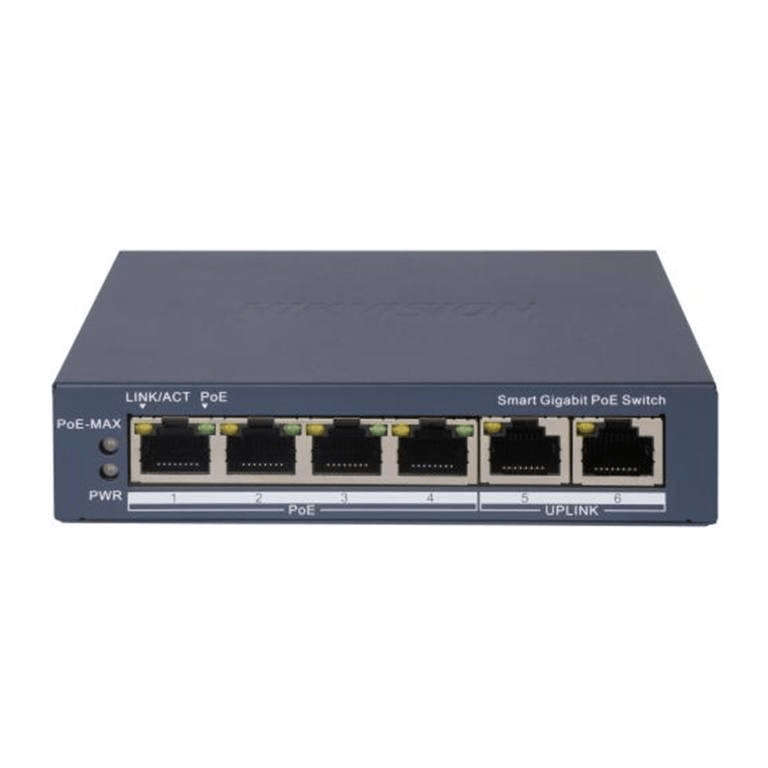

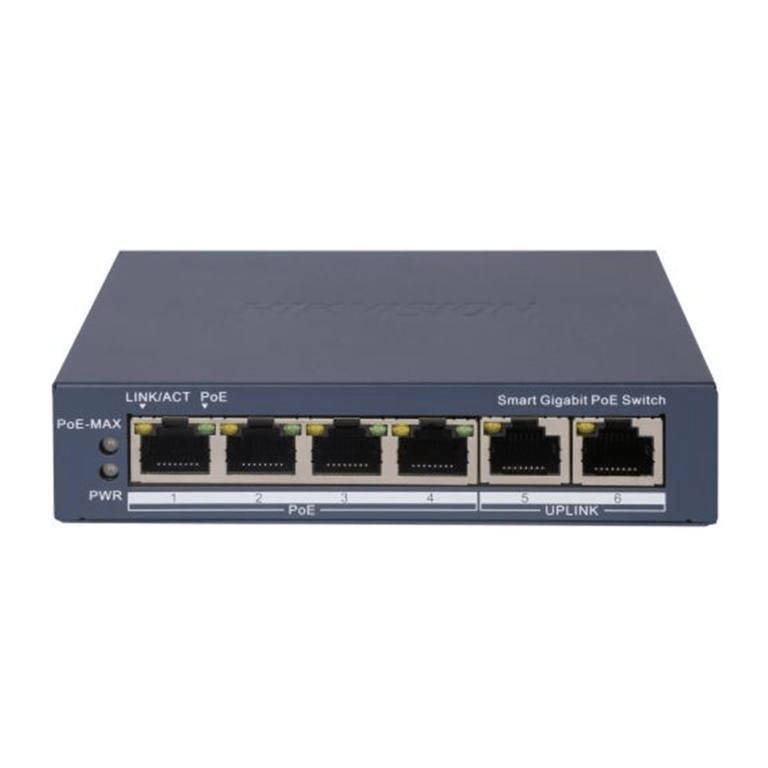

Hikvision 4-port GbE PoE Smart Managed Network Switch with 2x GbE Uplink Ports DS-3E1506P-EI

Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.

Features

• Total PoE Power Budget 60W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP Loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission

Technical Specification

• Ports: 4x Gigabit PoE port, 2x Gigabit RJ45 port
• MAC Address Table: 2 K
• Switching Capacity: 14 Gbps
• Packet Forwarding Rate: 10.42 Mpps
• Internal Cache: 1 Mbits
• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: End-span: 1/2(-), 3/6(+)
• PoE Port: Ports 1 to 4
• Max. Port Power: 30 W
• PoE Power Budget: 60 W
• Power Supply: 54VDC, 1.2A
• Installation Mode: Desk-Mounted, Wall-Mounted
• Max. Power Consumption: 65 W
• Power Consumption in Idle: 1.6 W
• Surge Protection: 6 KV
