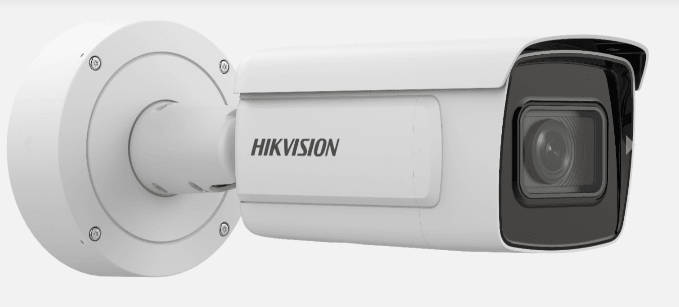

HIKVISION 4MP ANPR IDS-2CD7A46G0/P-IZHS/8

Description

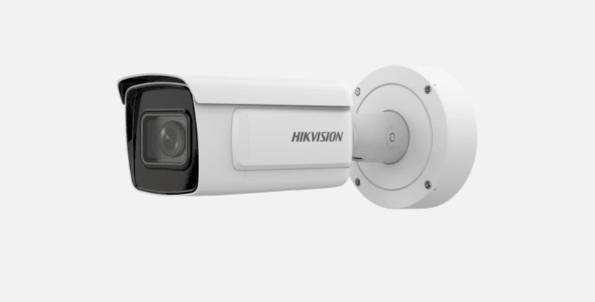

The 4MP DeepinView ANPR (Automatic Number Plate Recognition) Moto Varifocal Bullet Camera is a surveillance camera that is designed for use in various security and surveillance applications. It features a 4-megapixel image sensor for high-resolution video recording, a varifocal lens that allows for adjustable zoom and focus, and ANPR technology for automatically recognizing and recording license plate numbers. The camera is designed for use in outdoor environments and is housed in a weather-resistant bullet-style housing for protection against the elements.

Features

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology

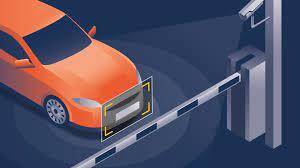

• License Plate Recognition
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)

Technical Specifications :

Camera

• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. Illumination

  Color: 0.0005 Lux @ (F1.2, AGC ON);

  B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

• Shutter Time1 s to 1/100,000 s
• Day & Night

  IR cut filter

  Blue glass module to reduce ghost phenomenon

Lens

• Focal Length & FOV

  2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

  8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

• FocusAuto, semi-auto, manual
• Iris TypeP-iris
• Aperture

  2.8 to 12 mm: F1.2 to F2.5

  8 to 32 mm: F1.7 to F1.73

DORI

Wide:

2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m

8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m

Tele:

2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Illuminator

• Supplement Light TypeIR
• Supplement Light Range

  2.8 to 12 mm: 50 m

  8 to 32 mm: 100 m

• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fourth Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fifth Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG,

  Fifth stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
