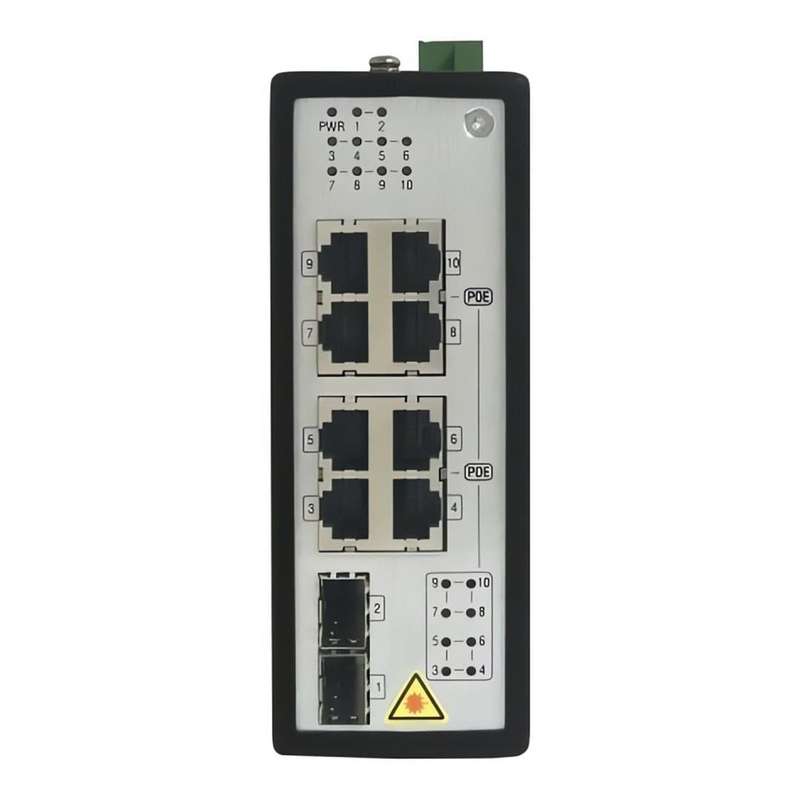

Hikvision 8-port GbE POE Unmanaged Industrial Switch with 2x SFP ports DS-3T0510P

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

Hikvision 8-port GbE POE Unmanaged Industrial Switch with 2x SFP ports DS-3T0510P

The Hikvision DS-3T0510P unmanaged industrial switch can support 2 Gigabit SFP slots and 8 Gigabit electrical ports. Designed for harsh industrial environments, it can provide an economical solution for your industrial Ethernet connection. The DS-3T0510P PoE model supports centralized power supply and each port provides 30 W power. The operating temperature of industrial switches ranges from -40 °C to 75 °C. All models undergo rigorous aging tests to ensure they meet the specific needs of industrial automation control applications. In addition, the DS-3T0510P unmanaged switch features a rugged aluminum alloy housing that ensures suitability for industrial environments and an option for fiber connection.

Features

• Full gigabit port
• The backplane bandwidth is 20 Gbps.
• Supports PoE power supply and IEEE 802.3AF/AT standards.
• The maximum output power of each PoE port is 30 W.
• PoE management: PoE device detection and PoE power management
• Adopt redundant dual power input design
• Die cast aluminum alloy housing.
• No fan, -40 °C to 75 °C operating ambient temperature.
• MTBF 400,000 hours.
• 6 KV Surge Protection.

Technical Specification

Ports: 8x Gigabit RJ45 port, 2x Gigabit fiber optical port

MAC Address Table: 4 K

Switching Capacity: 20 Gbps

PoE Power Supply

• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: End-span: 1/2(+), 3/6(-)
• PoE Port: Ports 1 to 8
• Max. Port Power: 30 W
• PoE Power Budget: 240 W

Installation Mode: Desk-Mounted

Power Supply: 48VDC, 3.13A
