Hikvision 8CH 2MP CCTV Kit – 1TB HDD with Zatech Ready Cables

Hikvision 8CH 2MP CCTV kit with 8 Full HD bullet cameras, H.265 DVR, 1TB WD HDD, Zatech 20m ready cables, power supply, DCW8P splitter, and all connectors. Ideal for plug-and-play security at home or business.

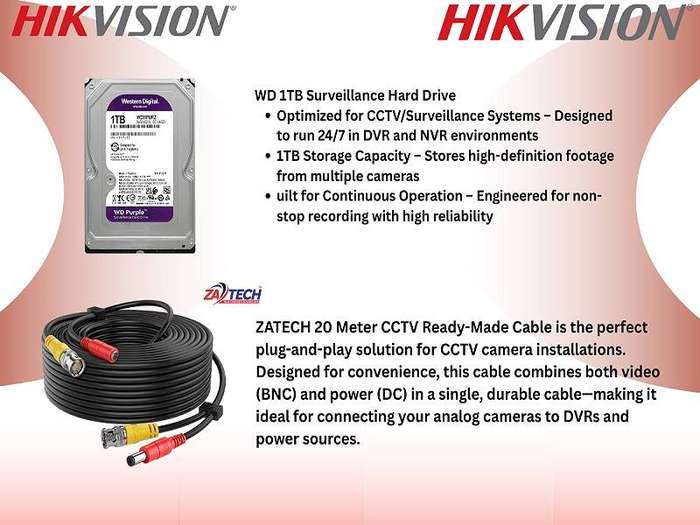

To simplify setup, the system comes with 8 x Zatech 20m Ready-Made RG59 Combo Cables (video + power pre-fitted), a Western Digital 1TB Surveillance HDD for 24/7 recording, and a Zatech 12V power supply. It also includes a DCW8P Power Splitter to neatly distribute power to all 8 cameras, along with BNC and DC connectors for quick installation.

Camera

• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 90 , Rotation: 0 to 360
• Lens
• Lens Type2.8 mm, 3.6 mm Fixed Lens
• Focal Length & FOV2.8 mm, horizontal FOV: 96.5 , vertical FOV: 48.9 , diagonal FOV: 120.5 3.6 mm, horizontal FOV: 76.9 , vertical FOV: 40.6 , diagonal FOV: 92.0
• Lens MountM12
• Illuminator
• Supplement Light RangeUp to 20 m
• Supplement Light TypeSmart,IR,White Light
• Image
• Frame RateTVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters SwitchSTD/HIGH-SAT
• Day/Night ModeAuto/Color
• White BalanceAuto
• Image EnhancementDWDR, BLC, Global
• Noise Reduction2D DNR
• Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• LanguageEnglish
• Operating Condition-40 C to 60 C (-40 F to 140 F), Humidity: 90% or less (non-condensing)
• MaterialPlastic

DVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
• Video and Audio
• IP Video Input2-ch (up to 10-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input8-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K )8-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way AudioReuse the first audio input
• Synchronous playback8-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
• Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fpsFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fpsFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:For 1080p and 720p stream access CIF/QVGA@15 fpsFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth72 Mbps
• Remote Connection64
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP , HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A
• General
• Power Supply12 VDC, 1.5 A
• Consumption 17 W (without HDD)

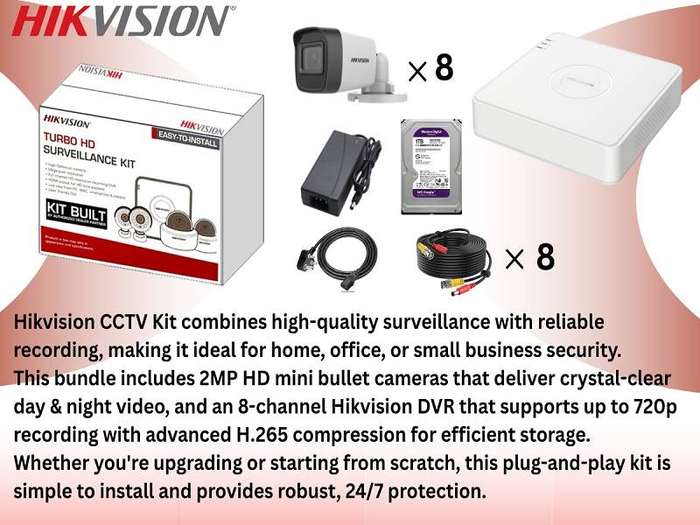

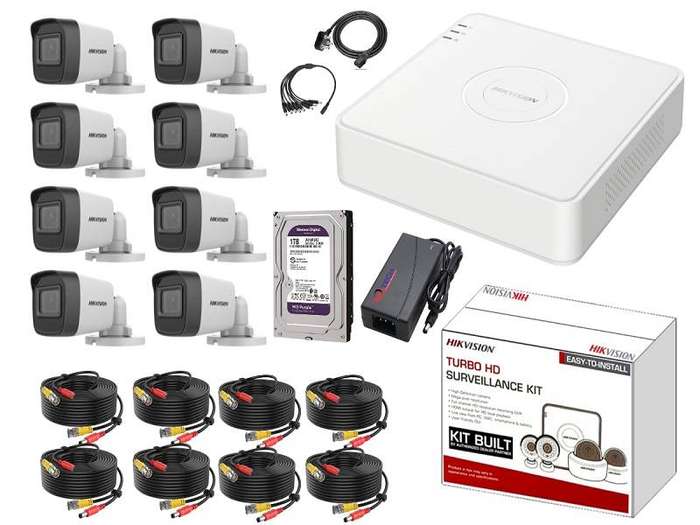

Whats in the box
1 x Hikvision 8CH DVR (720p, H.265)
8 x 2MP Mini Bullet Cameras
1 x WD 1TB Surveillance HDD
8 x 20m Zatech RG59 Ready-Made Cable
1 x Zatech 12V Power Supply
1 x DCW8P Power Splitter
