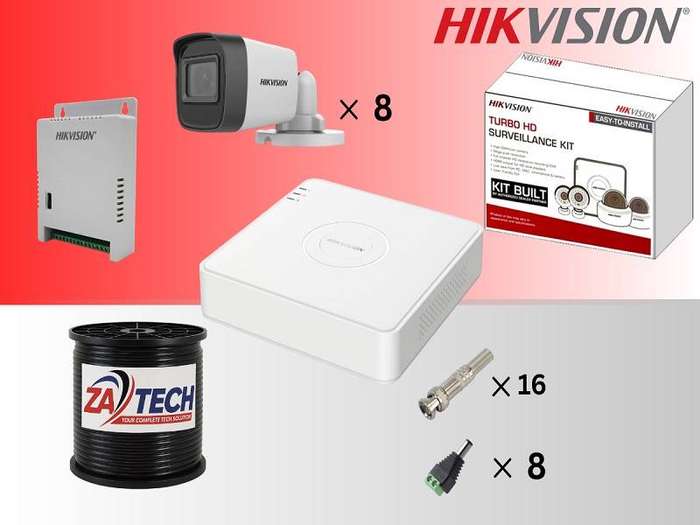

Hikvision 8CH 2MP CCTV Kit with 1TB HDD and Zatech RG59 Cable

Hikvision 8-channel CCTV kit featuring eight 2MP mini bullet cameras with 1080p Full HD video and 20m IR night vision. Weatherproof and multi-format compatible, these cameras work reliably indoors and outdoors.

The 8-channel Turbo HD DVR uses advanced H.265 Pro+ compression for efficient storage and supports up to 10 IP cameras. It includes smart motion detection with human and vehicle recognition to reduce false alarms.

This kit comes with a 1TB Western Digital hard drive for continuous recording, a 100m roll of Zatech RG59 cable, BNC/DC connectors, and an 8-channel power supply for easy installation.

Camera

• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 90 , Rotation: 0 to 360
• Lens
• Lens Type2.8 mm, 3.6 mm Fixed Lens
• Focal Length & FOV2.8 mm, horizontal FOV: 96.5 , vertical FOV: 48.9 , diagonal FOV: 120.5 3.6 mm, horizontal FOV: 76.9 , vertical FOV: 40.6 , diagonal FOV: 92.0
• Lens MountM12
• Illuminator
• Supplement Light RangeUp to 20 m
• Supplement Light TypeSmart,IR,White Light
• Image
• Frame RateTVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters SwitchSTD/HIGH-SAT
• Day/Night ModeAuto/Color
• White BalanceAuto
• Image EnhancementDWDR, BLC, Global
• Noise Reduction2D DNR
• Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• LanguageEnglish
• Operating Condition-40 C to 60 C (-40 F to 140 F), Humidity: 90% or less (non-condensing)
• MaterialPlastic
• CommunicationHIKVISION-C
• Dimension138.8 mm × 60.9 mm × 57.9 mm (5.465 × 2.389 2.278)
• WeightApprox. 145 g (0.32 lb.)
• Power12 VDC 25%, Max. 3.3 W
• Approval
• ProtectionIP67

DVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
• Video and Audio
• IP Video Input2-ch (up to 10-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input8-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K )8-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way AudioReuse the first audio input
• Synchronous playback8-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
• Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fpsFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fpsFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:For 1080p and 720p stream access CIF/QVGA@15 fpsFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth72 Mbps
• Remote Connection64
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP , HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A
