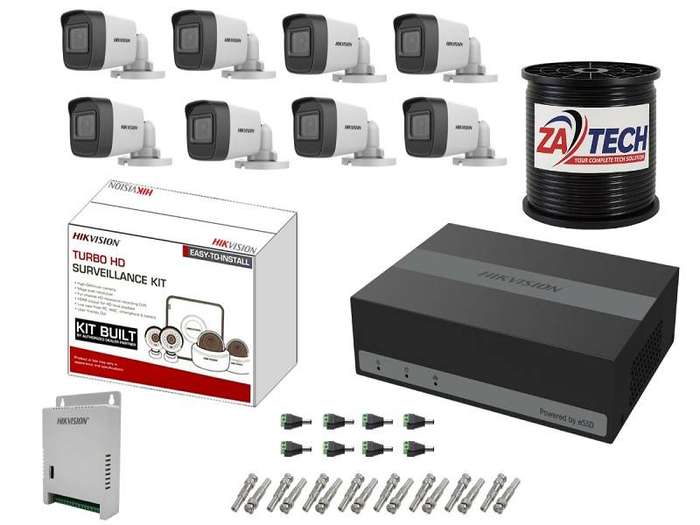

Hikvision 8-channel analog CCTV kit delivers high-performance video surveillance with advanced eDVR technology and a built-in 1TB SSD for fast, reliable storage. The kit includes 4 × 2MP fixed mini bullet cameras with 1080p resolution, IR night vision up to 20m, IP67 weatherproof rating, . It also comes with a powerful 8CH Hikvision eDVR featuring H.265 compression, Motion Detection 2.0 with human and vehicle classification, low power consumption,it includes a 100m Zatech RG59 coaxial cable roll, a Hikvision 8CH power supply, and a full set of BNC and DC connectors-ideal for homes, shops, or small businesses.



Camera

• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 90 , Rotation: 0 to 360
•


eDVR

8-ch 1080p Lite 1U H.265 eSSD DVR

Recording

Video Compression H.265 Pro/H.265

Encoding Resolution 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA

Frame Rate

Main stream:

1080p Lite/720p/720p Lite/WD1/4CIF@15 fps

Note:

1080p Lite/720p is 15 fps by default

Sub-stream:

CIF/QVGA@15 fps



Video and Audio

IP Video Input

2-ch

Up to 5 MP resolution

Support H.265+/H.265 IP cameras

Analog Video Input

8-ch

BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
