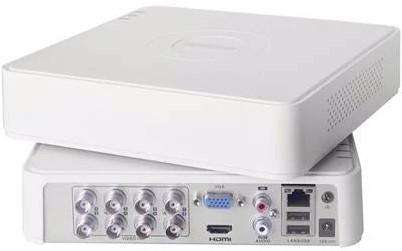

8-ch 720p Mini 1U H.265 DVR Deep learning based human and vehicle targets classification of Motion Detection 2.0 H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Audio via coaxial cable Up to 10-ch IP camera input (up to 5 MP) Encoding ability up to 1080p lite @ 15 fps Max. 1200 m for 720p HDTVI signal Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; SATA 1 SATA interface Capacity Up to 4 TB capacity for each disk
Product Overview
The 8-ch 720p Mini 1U H.265 DVR features deep learning-based motion detection 2.0, enabling accurate human and vehicle classification to reduce false alarms. It supports H.265 Pro+/H.265 Pro/H.265 video compression and various video inputs, including HDTVI, AHD, CVI, CVBS, and IP, with up to 10 IP camera inputs. Equipped with a SATA interface for storage up to 4TB, it offers efficient recording and playback capabilities.
Features
?Deep learning based human and vehicle targets classification of Motion Detection 2.0
?H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
?HDTVI/AHD/CVI/CVBS/IP video input
?Audio via coaxial cable
?Up to 10-ch IP camera inputs (up to 5 MP)
?Up to 1080p Lite@15 fps encoding capability
?Max. 1200 m for 720p HDTVI signal
Specifications
?Power Supply: 12 VDC, 1.5 A
?Consumption: 17 W (without HDD)
?Working Temperature: -10 C to 55 C (14 F to +31 F)
?Working Humidity: 10% to 90%
?Total Bandwidth: 72 Mbps
?Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPTM, HTTPS
?Remote Connection: 64
?Network Interfac : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
?ideo Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
?For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
?For 720p stream access: 720p/WD1/4CIF/VGA/CIF
?For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
?Main stream:
?For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
?For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
?For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
?4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
?Video Bitrate : 32 Kbps to 4 Mbps
?Stream Type : Video, Video & Audio
?Audio Compression : G.711u
?Audio Bitrate : 64 Kbps
