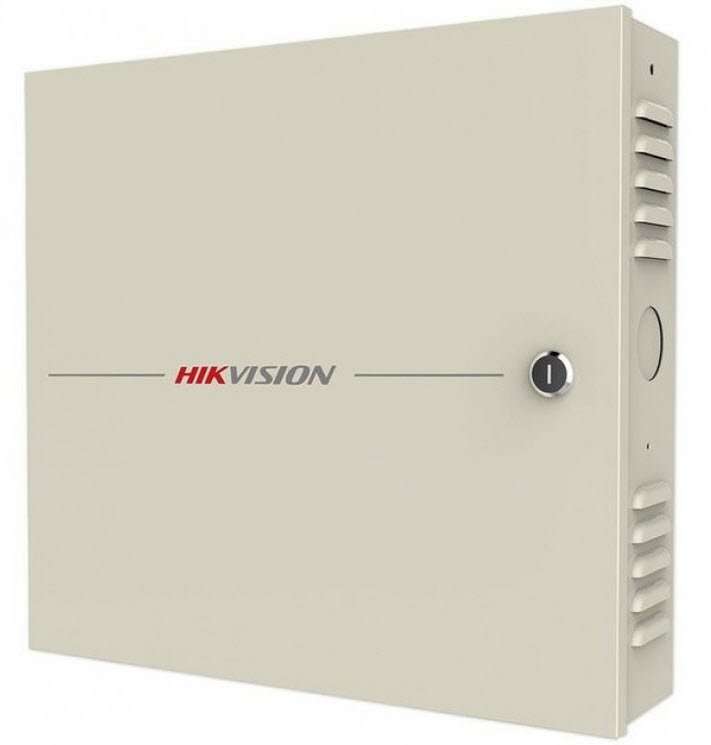

Hikvision DS-K2604 Pro Series Four-door Access Controller

Hikvision DS-K2604 Pro Series Access Controller, Four-door Access Controller, Storage with 100,000 cards and 300,000 access control events. Uplink Communication: TCP/IP and RS-485; Accessible Card Reader: 4 Wiegand readers or 8 RS485 readers; Input interface: 4 alarm input, Door Sensor x4, Door Switch x4

Features:

Access controller
100,000 cards and 300,000 events storage
Communication via TCP/TP
4 doors access control
Alarm input/output and alarm event upload
RS485 interface and Wiegand interface for accessing card reader

Specifications:

Device Interface
Uplink Communication Interface TCP/IP, RS-485
Downlink Communication Interface RS-485, Wiegand(W26/W34)
Accessible Card Reader 8 Card Readers (RS485 Interface); 4 Card Readers (Wiegand Interface)
Built-in Clock Yes
General
Working Temperature -20°C to +65°C (-4°F to +149°F)
Power Dissipation(with Load) 100W
Power Dissipation (Without Load) 4W
LED Indicator Power Supply Status, Communication Status, Working Status
Dimensions (LxWxH) 370mm x 345mm x 90 mm (14.6" x 13.6" x 3.5")
Processor 32-bit
Storage Cards: 100,000 Access Control Events: 300,000
Input Interface Alarm Input x 4, Door Sensor x 4, Exit Button x 4, Case Inputx8, Tamper Alarm x 1
Output Interface Lock Relay x 4, Alarm Relay x 4
