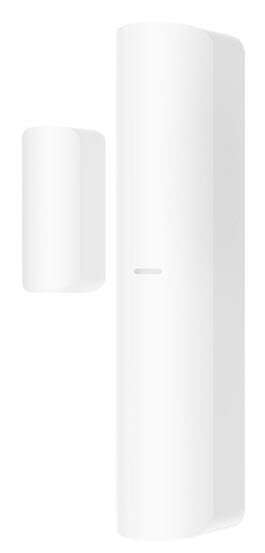

Hikvision DS-PDMC-EG2-WE Wireless Magnet Detector

Hikvision DS-PDMC-EG2-WE Wireless Magnet Detector, Designed for serface installation; 868MHz two-way Tri-X wireless technology; Frequency hooping against jamming for reliable transmission; RF Range: 1,600m(open space); 2-ch External Zones for wired sensors; Multiple Enrolling Methods: Power up, Remote ID

Features:

Slim design for an unobtrusive (unnoticeable) installation
Fully remote configurable through App
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission

Specifications:

Detection Performance
Detection Method Opening Contact
Detection Gap 43mm Max
Feature
Digital Processing Support
Tamper Protection Front;Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Interface
Alarm Input Normally Closed;Normally Open;Impulse Count
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6Km
Frequency Hopping Support
Enrolling Method Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life 5 years in work status (being triggered 20 times per day)
Power Supply Battery Powered
Battery Type CR123A x 1
Typical Voltage 3V
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimension(WxHxD) 22.5mm x 103mm x 23.2mm
13mm x 34.4mm x 11.4mm
Weight 59g
Application Scenario Indoor
