Hikvision HiLook 2MP IR Fixed Mini Bullet Camera - 1080p bullet camera, Smart IR, up to 20 m IR distanceWater and dust resistant (IP66), 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Product Overview

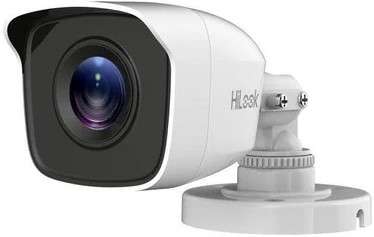

The 2 MP Fixed Mini Bullet Camera delivers high-quality 1080p resolution imaging with a fixed 2.8mm or 3.6mm lens, ensuring clear and detailed video capture. It features Smart IR technology with an effective infrared distance of up to 20 meters for enhanced night vision, and is water and dust resistant with an IP66 rating for reliable outdoor use. The camera supports 4-in-1 signal output, allowing seamless switching between TVI, AHD, CVI, and CVBS formats for versatile installation options
Specifications
-Product Code: THC-B120-PC 2.8MM
-Description: Hikvision HiLook 2MP 1080p 2.8MM 20M IR Fixed Mini Bullet Camera
-2 MP Fixed Mini Bullet Camera.
-1080p bullet camera.
-Smart IR, up to 20 m IR distance.
-Water and dust resistant (IP66).
-4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Interface
-Video Output: 1 HD analog output
-Switch Button: TVI/AHD/CVI/CVBS
-Day/Night Mode: IR cut filter
-DWDR (Digital Wide Dynamic Range): Support
-Language: English
-Functions: Brightness, Sharpness, DNR, Mirror, Smart IR
-Backlight Compensation: Support
Camera
-Image Sensor: 2 MP CMOS image sensor
-Signal System: PAL/NTSC
-Frame Rate: PAL: 1080p@25fps, NTSC: 1080p@30fps
-Resolution: 1920 (H) 1080 (V)
-Shutter Time: 1/25 (1/30) s to 1/50,000 s
-Min. Illumination: 0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
-Horizontal Field Of View: 103 (2.8 mm), 80.7 (3.6 mm), 50.1 (6 mm)
-Lens Mount: M12
-Day & Night: IR cut filter
-Synchronization: Internal synchronization
-Angle Adjustment: Pan: 0 to 360 , Tilt: 0 to 180 , Rotation: 0 to 360
General
-Power Supply: 12 VDC 15%
-Power Consumption: Max. 4 W
-Material: Plastic
-IR Range: Up to 20 m
-Dimensions: 65.9 mm 189.2 mm 81.8 mm (2.59"" 7.45"" 3.22""), 400 g (0.88 lb.)
-Operating Conditions: -40 C to 60 C (-40 F to 140 F), Humidity: 90% or less (non-condensation)
-Ingress Protection: IP66
