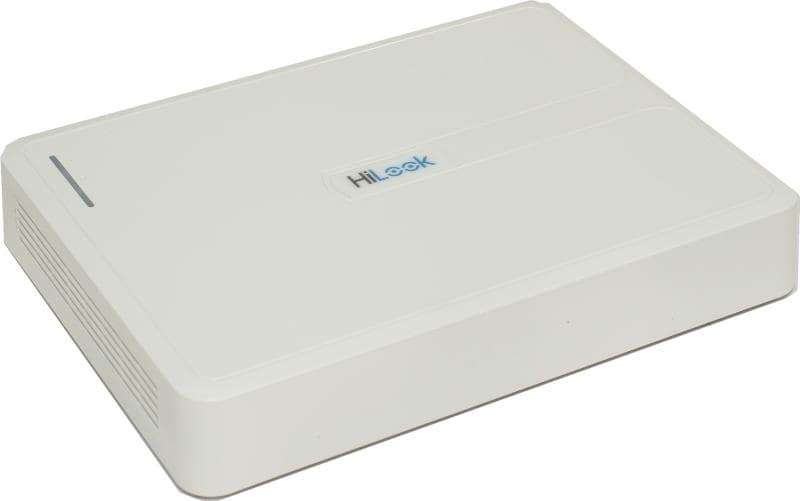

HiLook 16CH Hybrid DVR High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265 video compression, Advanced Motion Detection Ver2 Deep learning based human and vehicle targets classification, 16 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 ),supporting coaxitron connection, Audio Input: 1-ch RCA and 16-ch via coaxial cable, SATA Interface Support up to 10TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 18-ch IP camera input (up to 5 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty
Product Overview
Experience advanced surveillance capabilities with the HiLook 16CH Hybrid DVR, offering high-definition video compression and deep learning-based motion detection for precise human and vehicle target classification. With support for multiple video inputs, up to 10TB HDD storage, and remote viewing from any device, it ensures comprehensive security monitoring with ease.
Specifications
Product code: DVR-116G-M1
Description: HiLook 16CH Hybrid DVR High Definition Stand Alone DVR
Human/Vehicle Analysis
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 1080p and 720p stream access CIF/QVGA@15 fps
Dual-Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Video And Audio
IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
1-ch RCA (2.0 Vp-p, 1 K)
1-ch, RCA (Linear, 1 K)
7 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Dimension (W × D × H)
285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
1.8 kg (without HDD, 4.0 lb.)
