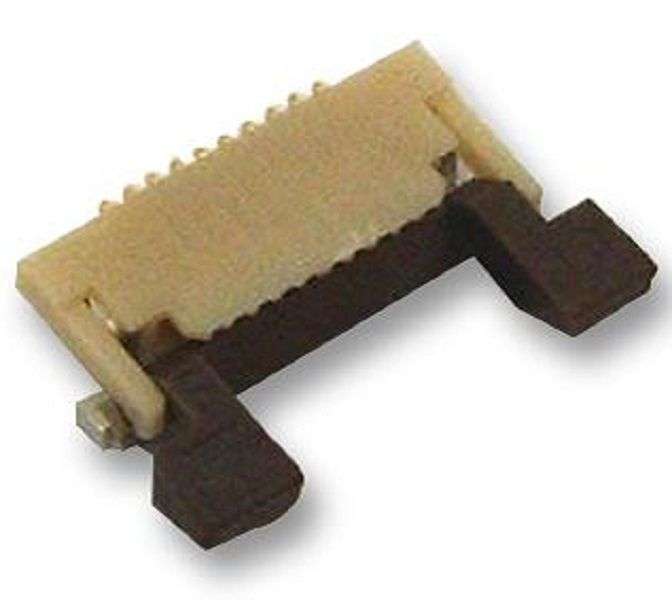

Hirose (FH12A-50S-0.5SH(55)) FFC / FPC Board Connector, ZIF, 0.5 mm

FFC / FPC Board Connector, ZIF, 0.5 mm, 50 Contacts, Receptacle, FH12, SurfaceMount, TopProduct OverviewThe FH12A-50S-0.5SH(55) is a 50-position 1-row 0.5mm female FPC/FFC Receptaclewith beige polyamide and dark brown PPS insulator, gold plated phosphor bronzecontacts and tin plated metal fitting. The FH12 series socket/connector hashorizontal FPC/FFC insertion direction, front actuator position, top contactorientation and SMT horizontal mounting type. The one-touch rotating ZIFmechanism is easier to operate and works with a light force. A clear tactileclick is delivered upon the successful completion of the mating process. TheFH12's one-touch ZIF system requires less space than a slide locking connectorand can be mounted in the centre of the PCB. The FH12S version in 30, 40, 45, 50and 53 pin counts are offered with a reinforced actuator that provides an extrameasure of security against actuator breakage.Rotating one-touch ZIF mechanismClear tactile clickSupports high density mountingReinforced actuator0.5A Rated current50VAC/DC Rated voltage50mR Maximum contact resistance500MR Minimum insulation resistance150VAC for one minute Withstanding voltage20 Mating/unmating cyclesApplicationsIndustrialProduct InformationPitch Spacing: 0.5mmNo. of Contacts: 50ContactsGender: Receptacle (View Associated Connectors)Product Range: FH12Contact Termination Type: Surface MountContact Position: TopNo. of Rows: 1 RowContact Plating: Gold Plated ContactsContact Material: Phosphor BronzeFFC/FPC Thickness: 0.3mm
