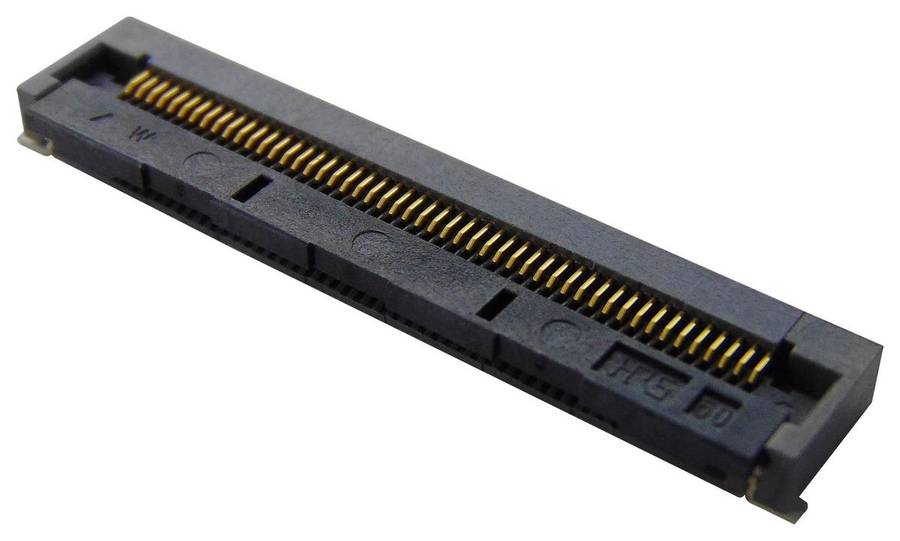

Hirose (FH28E-50S-0.5SH(05)) FFC / FPC Board Connector, ZIF, 0.5 mm

FFC / FPC Board Connector, ZIF, 0.5 mm, 50 Contacts, Receptacle, FH28, SurfaceMount, BottomProduct OverviewThe FH28 series FFC/FPC Board feature highly reliable connection and robuststructure. The reliable connection created by its unique FPC/FFC. It preventsaccidental disengagement with the design of its proprietary structure. The fliplock structure makes it easier to engage/disengage the actuator and reduces therequired force needed to operate. A clear tactile click is delivered upon thesuccessful completion of the mating process. The horizontal retention force forthe FPC/FFC is 2 times stronger than our 0.5mm pitch connector the FH12 series.It accepts 0.3mm thick products that are easy to manufacture and have superbinsertion performance. The bottom of this connector is enclosed by a fullymoulded structure that protects the contacts and removes any restrictions fromPCB patterning and design.Simplified operationsIncreased FPC/FFC retention forceFully moulded structure aids PCB layoutHalogen-free0.5A Rated current50Vrms Rated voltageApplicationsIndustrialProduct InformationPitch Spacing: 0.5mmNo. of Contacts: 50ContactsGender: Receptacle (View Associated Connectors)Product Range: FH28Contact Termination Type: Surface MountContact Position: BottomNo. of Rows: 1 RowContact Plating: Gold Plated ContactsContact Material: Phosphor BronzeFFC/FPC Thickness: 0.3mm
