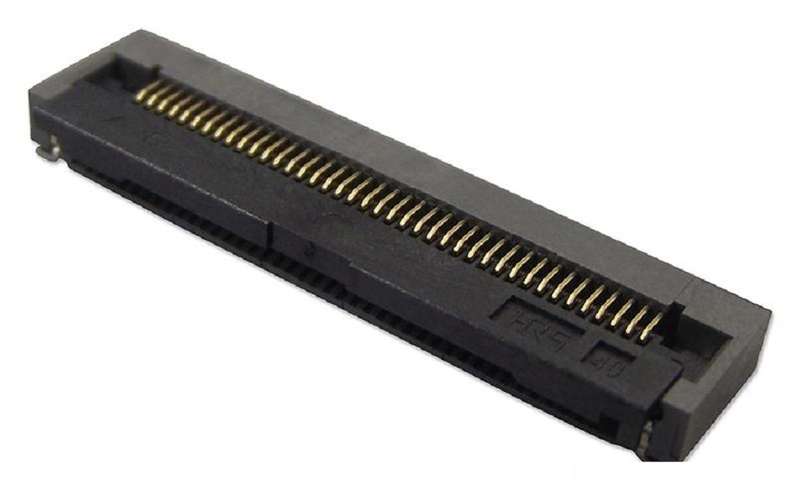

Hirose (FH28-40S-0.5SH(05)) FFC / FPC Board Connector, 0.5 mm, 40 Contacts

FFC / FPC Board Connector, 0.5 mm, 40 Contacts, Receptacle, FH28, Surface Mount,BottomProduct OverviewThe FH28-40S-0.5SH(05) is a 40-position 1-row 0.5mm FPC/FFC ZIF Receptacle withLCP insulator, gold plated phosphor bronze contacts and pure tin plated brassmetal fitting. The FH28 series connector has SMT horizontal mounting type.Multi-polarized connectors, reinforced body structure and high FPC retentionproduced by the following features, reliable connection created by its uniqueFPC/FFC positioning mechanism, prevents accidental disengagement with the designof its proprietary structure. The flip lock structure makes it easier toengage/disengage the actuator and reduces the required force needed to operate.A clear tactile click is delivered upon the successful completion of the matingprocess. Vertical retention force for the FPC/FFC is 2.5 times stronger than our0.5mm pitch connector the FH12 series. Horizontal retention force for theFPC/FFC is 2 times stronger than our 0.5mm pitch connector the FH12 series.Highly reliable connection and robust structureSimplified operationsIncreased FPC/FFC retention forceAccepts standard 0.3mm thick FPC/FFCFully moulded structure aids PCB layoutSupports automatic pick-n-place mountingHalogen-free0.5A Rated current50Vrms Rated voltage50mR Maximum contact resistance500mR Maximum contact resistanceApplicationsIndustrialProduct InformationPitch Spacing: 0.5mmNo. of Contacts: 40ContactsGender: Receptacle (View Associated Connectors)Product Range: FH28Contact Termination Type: Surface MountContact Position: BottomNo. of Rows: 1 RowContact Plating: Gold Plated ContactsContact Material: Phosphor BronzeFFC/FPC Thickness: 0.3mm
