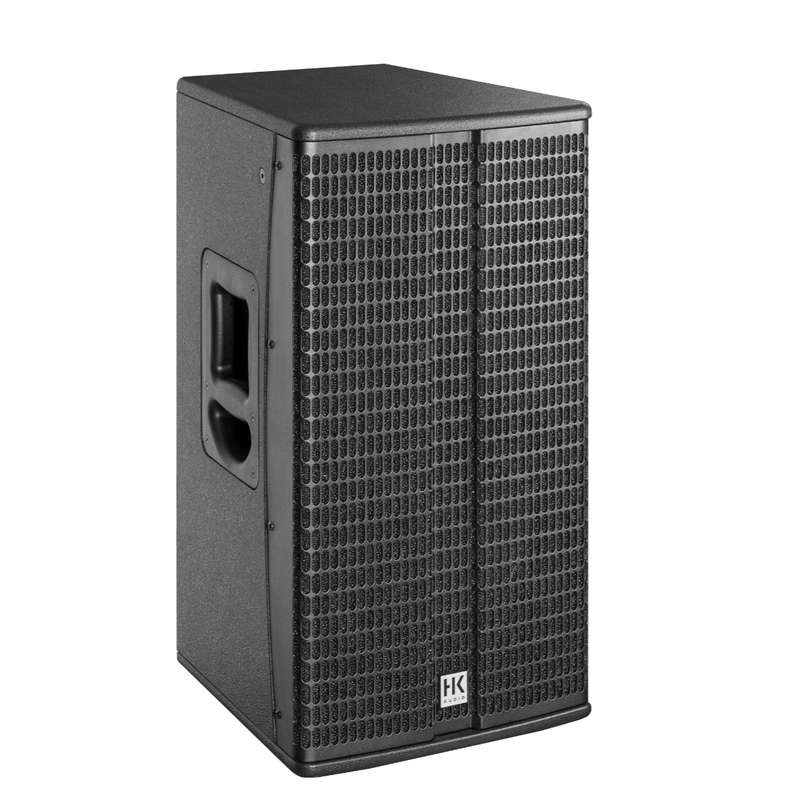

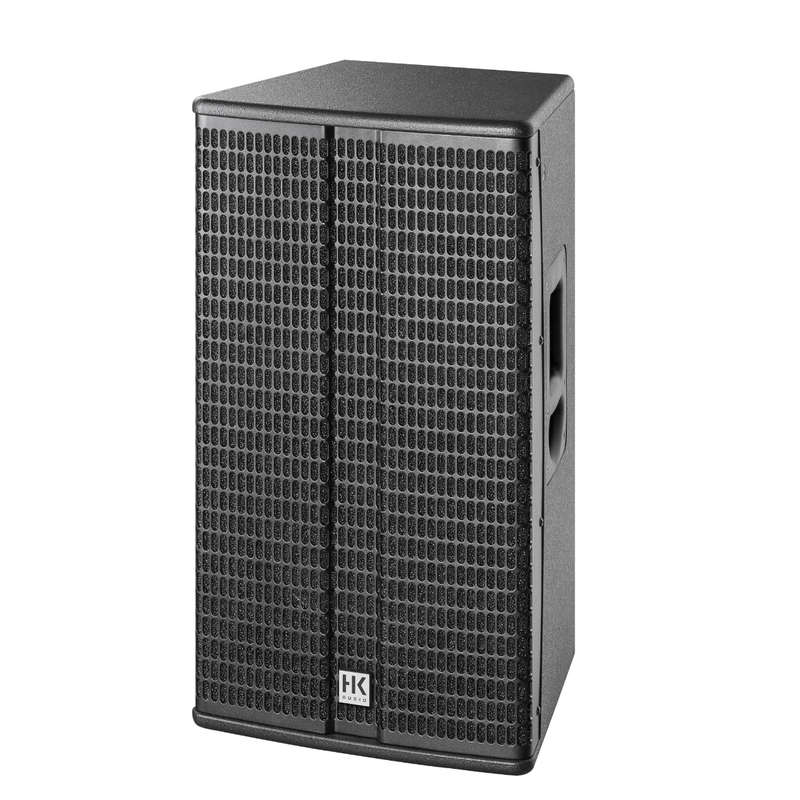

HK Audio LINEAR 3 112 FA Active Speaker - Each - Black
The active 12/1 full-range mid/high unit is incredibly powerful with its 1,200 watts of power. The four different EQ presets Bass Boost, Flat (LF), Flat (HMF) and Contour also make it suitable for a wide range of applications and offer top performance and easy handling in every situation.
Advanced DSP technology that can handle any situation with confidence.
No matter where you are or who your sound engineer is, you can achieve brilliant sound results at every performance! Thanks to its DSP filtering that is fine-tuned to listening habits, the LINEAR 3 active speaker system has you covered in a wide range of different performance conditions.
The system is easy to operate from the stage, meaning you can quickly get to grips with the acoustic conditions.
With filter presets, intelligent multiband limiting and FIR separation, you've got all the best prerequisites for getting the most out of your sound. High power reserves and superbly matched components make the robust LINEAR 3 speakers absolute high-end units.
And with its stylish slotted grille design, the LINEAR 3 active speaker series looks as good as it sounds.
Advanced DSP technology Multiband limiter with filter presets
The advanced DSP technology driving LINEAR 3 has one main purpose: to make the job of musicians and DJs easier! LINEAR 3 gives you the ultimate sound in any situation. And it's so simple to use!
An intelligent multiband limiter and filtering of the frequency response in the 'Contour' setting ensure a consistently sweet and assertive sound, from super quiet to really loud.
The multiband limiter monitors and controls the relevant frequency bands separately, only intervening when it is needed. HK Audio's engineers have developed, tested and fine-tuned all the components and options offered by LINEAR 3 for all the relevant applications, working with musicians to optimise them for practical use.
As a result, LINEAR 3 guarantees an impressively effective sound experience, even for semi-professional musicians and DJs who are not dedicated PA specialists.
This gives musicians on stage more room for musical creativity and a top performance.

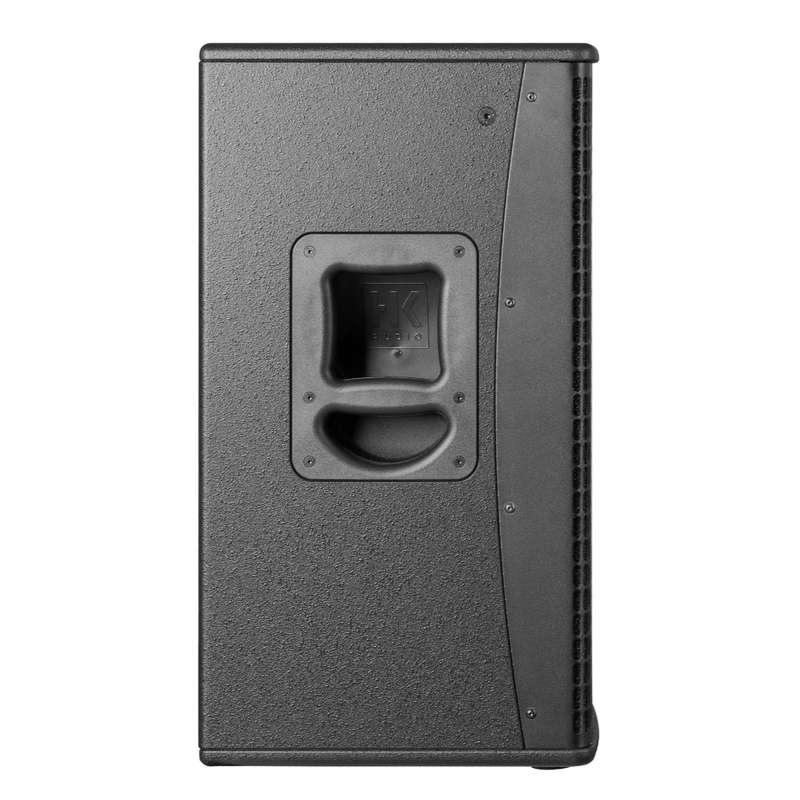

HK Audio MultiGrip
The built-in HK Audio MultiGrips make handling the speakers a breeze and ensure even more safety in every situation. They also allow for professional flying hardware to be fitted. The TB-45N or TB-45NQ tilt brackets can be mounted directly to the MultiGrips on the LINEAR 3 112 FA and LINEAR 3 115 FA models, making them ideal for professional rigging or installation. The models of the LINEAR 3 series have 4 x M8 mounting points and can be flown by mounting AP-8 attachment points, for example.
DuoTilt 3°/7° pole mount flange
The DuoTilt stand mount helps to align the speaker towards the audience reliably so that it provides the best sound. The preset 3° and 7° tilt of the stand mount means you can choose the right alignment, regardless of the setup.
Specifications:
Max. SPL @ 10% THD 126 dB half space (70 Hz 12 kHz averaged)
Max. SPL peak @ 10 % THD 135 dB half space
Frequency response +/-3 dB 65 Hz 19 kHz
Frequency response -10 dB 58 Hz 18 kHz
Power amp output (peak power) 1200 W
Preamp DSP (Time Alignment)
Amp type Class D - biamped
Active protective circuits Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
Low-/mid speaker 1x 12", 2" voice coil
HF driver 1", 1" voice coil
Horn directivity 90° x 55° CD horn
Active crossover frequency 2.3 kHz FIR X-over with 72 dB/oct.

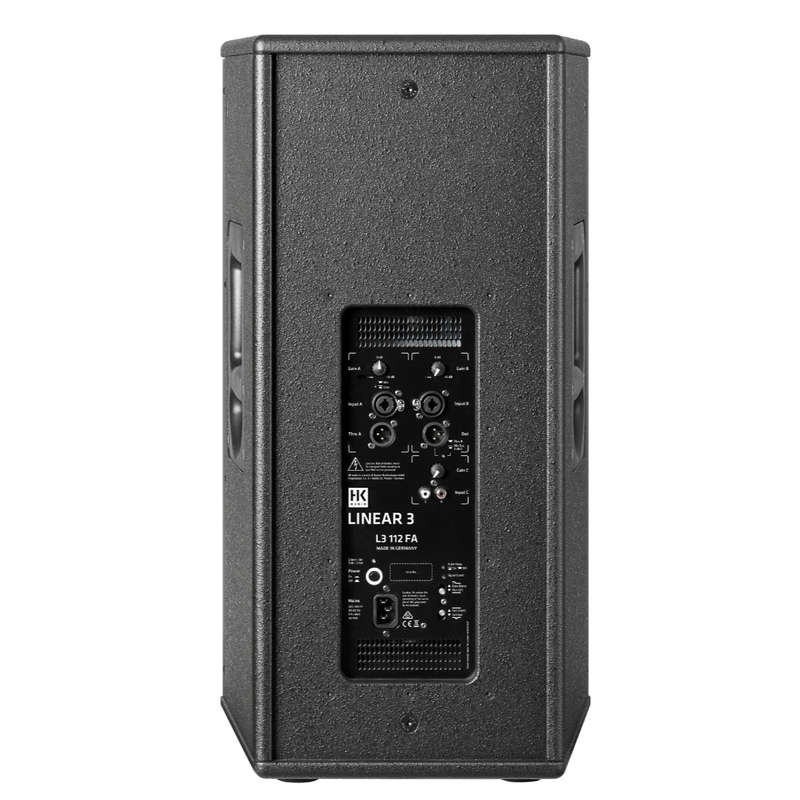

Analog inputs 2x XLR combo balanced, 1x Stereo RCA
Analog outputs 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity +4 dBu @ Gain center-notched
Sensitivity switch Line/Mic Input A
Filter presets 2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector 1x IEC socket with V-Lock cord retainer
Power consumption 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065
Pole mount DuoTilt 3°/7°
Rigging points 4x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing 16 mm MDF
Finish Black acrylic enamel

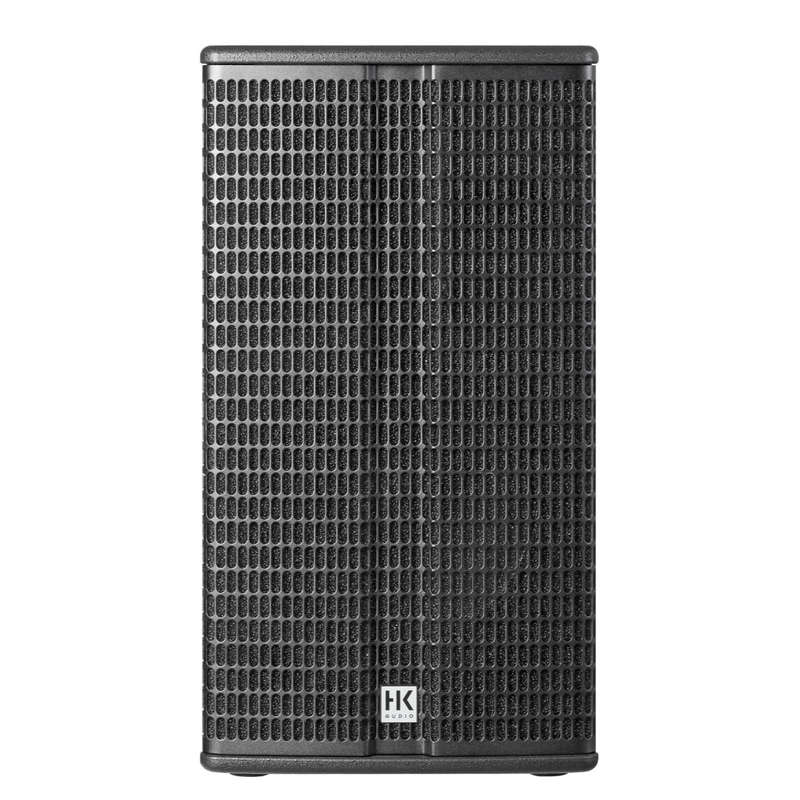

Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 36 x 66 x 36.7 cm 14-11/64 x 26 x 14-31/64"
Weight 21.5 kg / 47.4 lbs
