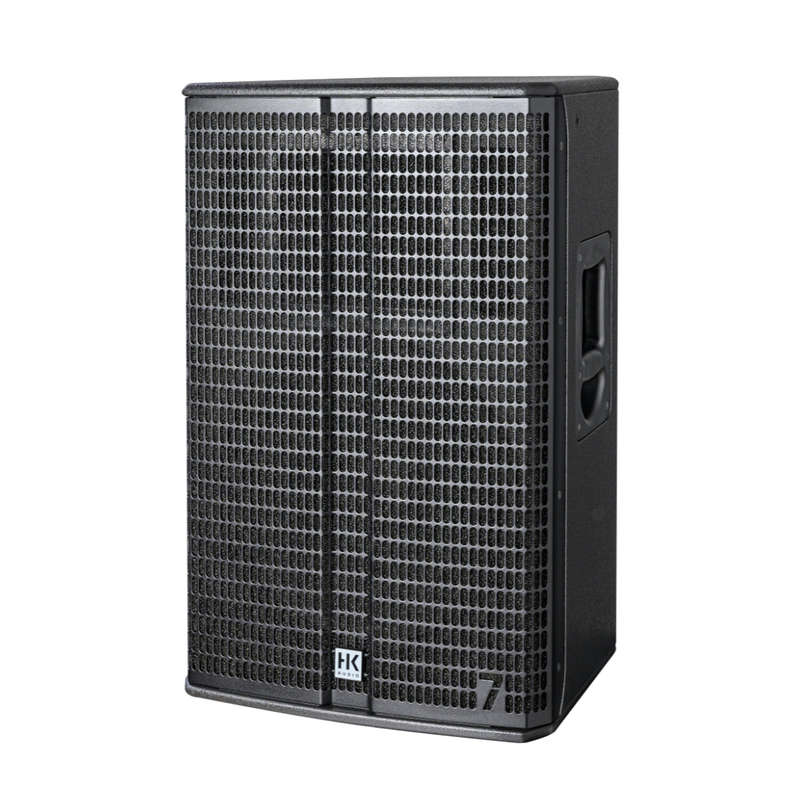

HK Audio LINEAR 7 115 FA Active Speaker - Each - Black
The LINEAR 7 115 FA active and network-compatible full-range speaker delivers more sound pressure in the low-frequency range thanks to its larger cabinet volume. With the Bass Boost preset optimised for each speaker, the low-frequency range can be boosted as required.
THE LATEST IN AUDIO TECHNOLOGY
LINEAR 7 is intentionally based on the look and the proven robust mechanics of the LINEAR 5 series, with specific enhancements to the cabinet details. Both technically and acoustically, the LINEAR 7 speaker family represents a completely new development. The latest generation of high-performance speakers and drivers, specially designed horns, high-impulse Pascal Class-D power amplifiers, FIR filtering and the latest, exceptionally high-performance DSP platform with high-resolution converters all make the LINEAR 7 family an acoustically precise tool for demanding applications.
DSP CONTROL SOFTWARE
Extended remote controlling
Until recently, only the large touring system price category made it possible to control every mid/high unit, every bass and every stage monitor centrally from the FoH position. Now, with the LINEAR 7 range, this modern and highly efficient workflow can also be achieved in top-range professional point sound sources. Every single LINEAR 7 speaker on the network can be accessed centrally via Mac or PC, and its volume, EQ, limiting, delay and polarity can be controlled in detail.
DSP-Out
One extra-special feature that is only available with the LINEAR 7 range is that an additional, non-network-compatible active speaker (e.g. from the LINEAR series) can be integrated into the network via DSP-Out and then all parameters individually remote controlled. This ensures that existing infrastructure retains its value as well as its future viability.
A fully parametric 10-band EQ, high-pass filter, low-pass filter, delay, polarity and limiting are available independently for both the speakers and DSP-Out.
Specifications:
Max. SPL @ 10% THD 129 dB half space (70 Hz 12 kHz averaged)
Max. SPL peak @ 10 % THD 134 dB half space
Frequency response +/-3 dB 57 Hz 19 kHz
Frequency response -10 dB 54 Hz 20 kHz
Power amp output (peak power) 2000 W
Amp type Class D - biamped
Low-/mid speaker 1x 15", 3" voice coil
HF driver 1", 1.7" voice coil
Horn directivity 60° x 40° CD horn, rotatable
Active crossover frequency 1.5 kHz FIR X-over with 60 dB/oct.
Maximum input level +20 dBu

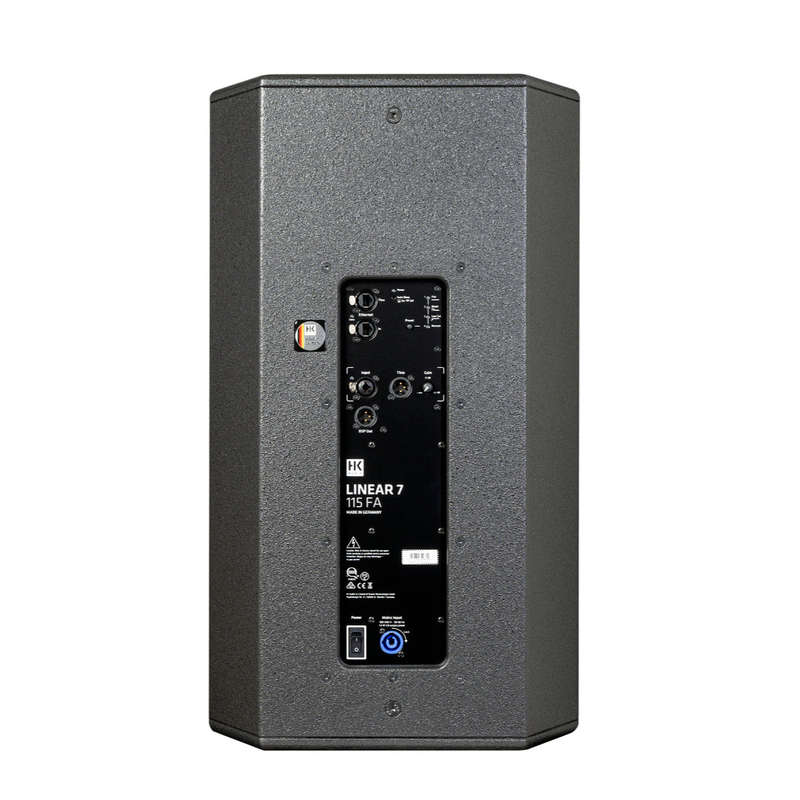

Analog inputs 1x XLR combo balanced
Analog thru 1x XLR balanced
DSP Out 1x XLR
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets Flat, Boost, Low Cut, Remote
Remote software DSP CONTROL (Windows, Mac OS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.6 ms
Mains connector 1x Powercon NAC3 In, 100240 V
Power consuption 1 A / 100240 V nominal according to EN 62368-1
Clustering angle 60°
Pole mount DuoTilt 3°/7°
Rigging points 4x M8 (AP-8)

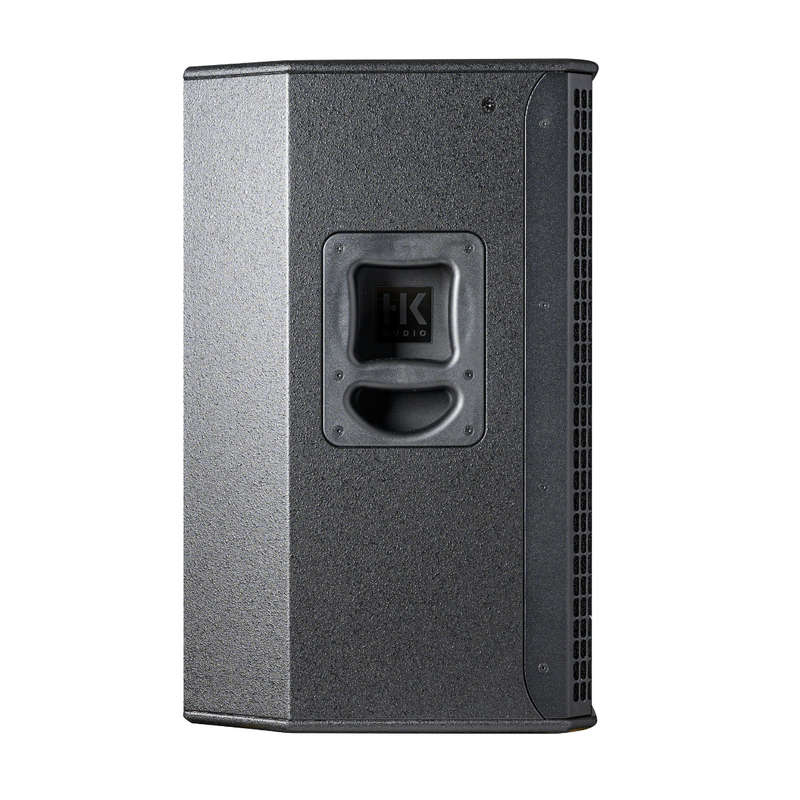

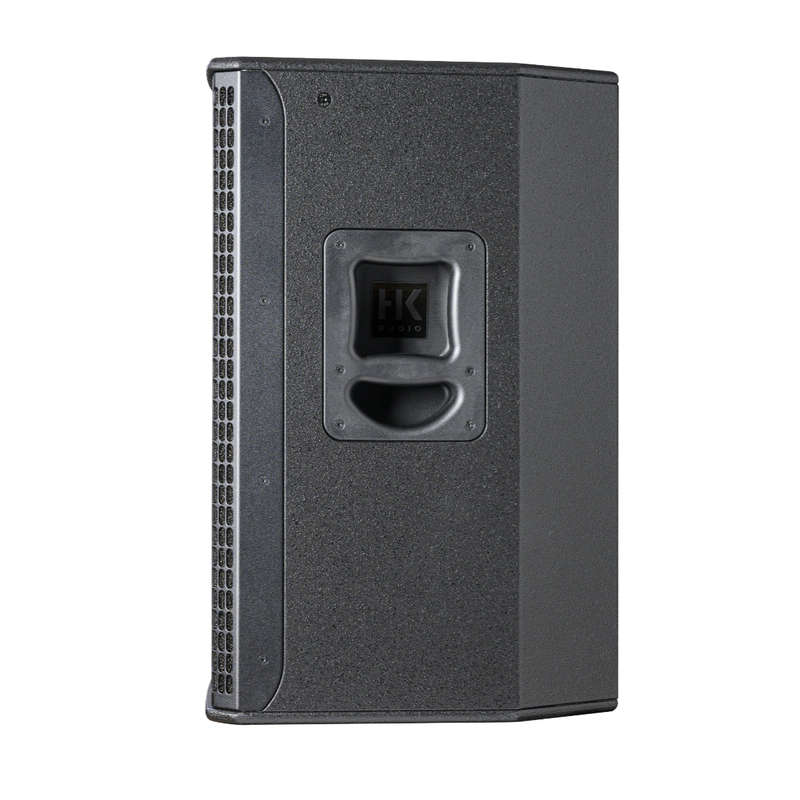

Carrying handles 2x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel

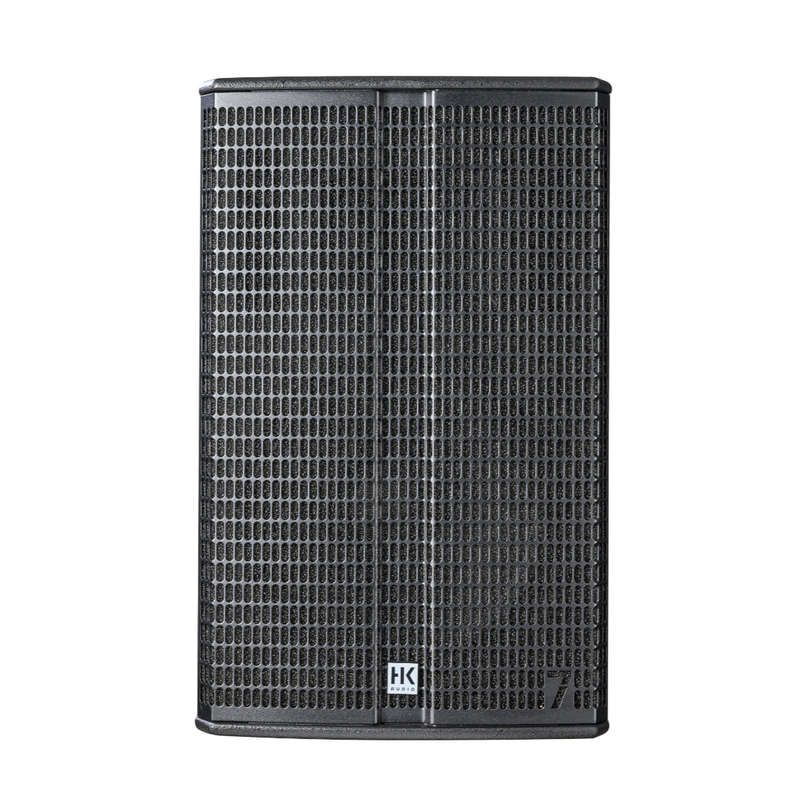

Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 45 x 71 x 45 cm 17-23/32 x 27-61/64 x 17-23/32"
Weight 32 kg / 70.5 lbs
