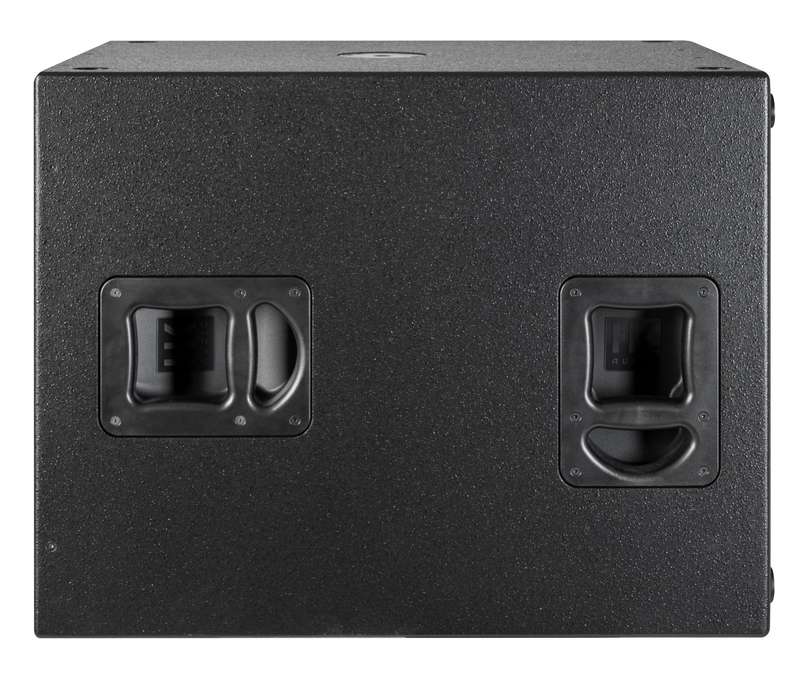

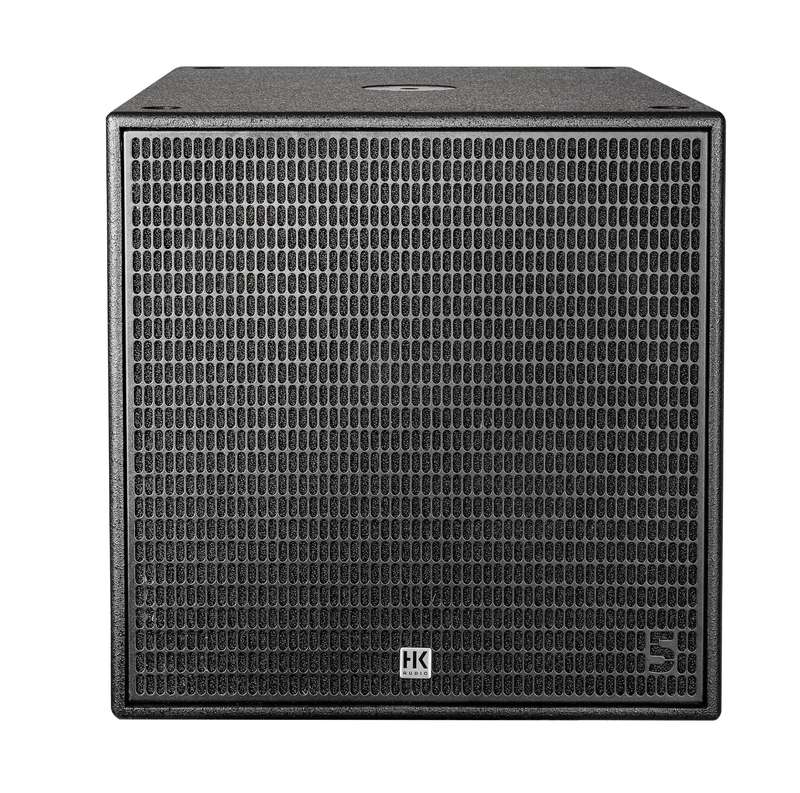

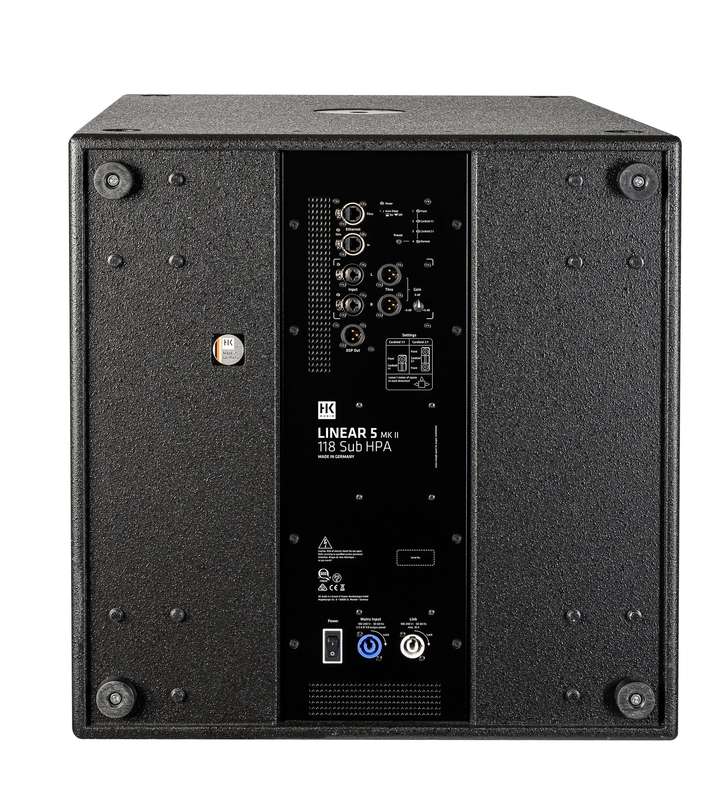

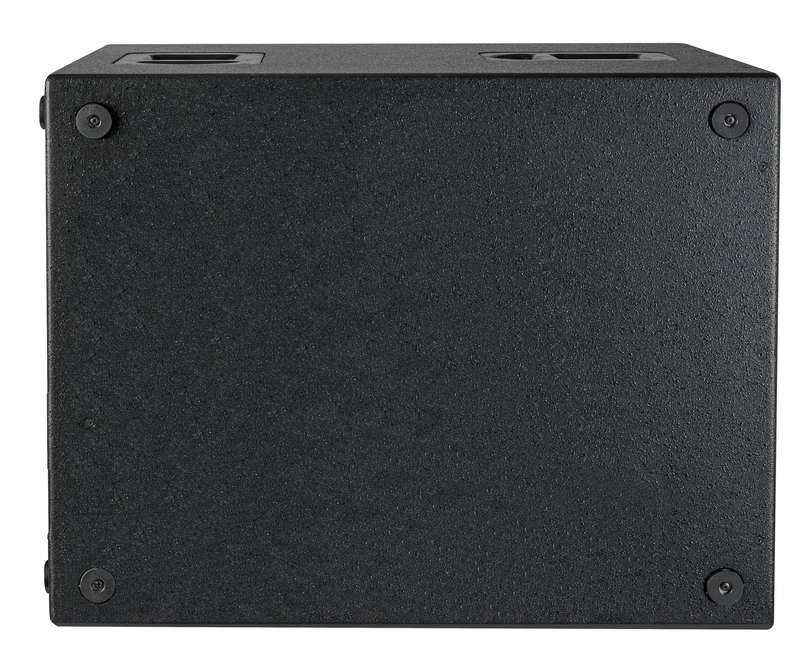

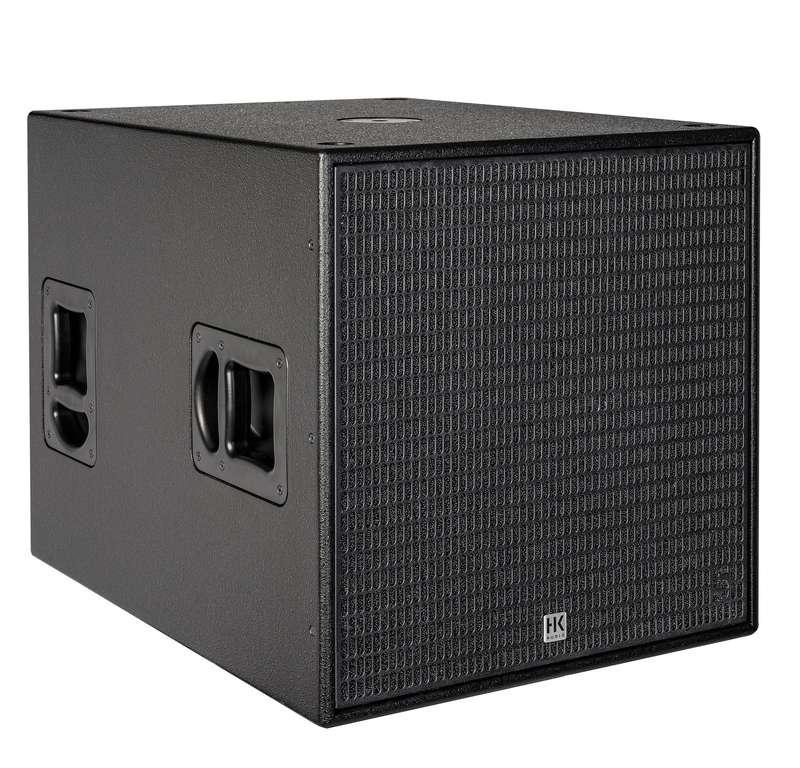

HK Audio LINEAR 5 MKII 118 Sub HPA Subwoofer - Each - Black

HK Audio LINEAR 5 MKII 118 Sub HPA Subwoofer - Each - Black

Most powerful subwoofer in the LINEAR 5 MK II series with significantly more energy in the low-end range. PowerCon connections with link for easy cabling.

The standard bass-reflex subwoofers form the solid foundation of the new LINEAR 5 MK II systems with their uncompromising performance and dry, defined bass down to the lowest of the lows. Cardioid settings that can be simply selected via a preset give the user an enormously expanded range of options for system configuration and access to the professional class. 2.1 setups are simplified thanks to the stereo preamplifiers.

Specifications:

Max. SPL @ 10% THD    130 dB half space (36 Hz 100 Hz averaged)
Max. SPL peak @ 10 % THD    131 dB half space
Frequency response +/-3 dB    36 Hz X-over
Frequency response -10 dB    33 Hz X-over
Power amp output (rms/peak)    1,500 / 3,000 W
Amp type    Class D
LF driver    1x 18", 4" voice coil
Low-/mid speaker    -
HF driver    -
Horn directivity    -
Active crossover frequency    -
Maximum input level    +20 dBu
Analog inputs    2x XLR combo balanced
Analog thru    2x XLR balanced
DSP Out    1x XLR balanced
Network port    Ethercon RJ45, 1x In, 1x Thru
Filter presets    Front, Cardioid 1:1 vertical, Cardioid 2:1 vertical, Remote
Remote software    DSP CONTROL (Windows, Mac OS)
DSP functions    Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate    48 kHz
System latency    <= 2.6 ms
Mains connector    1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100240 V
Power consuption    2.5 A / 100240 V nominal according to EN 62368-1
Angels up (Monitor angle)    -
Pole mount    1x M20
Rigging points    -
Carrying handles    4x HK Audio MultiGrip
Housing    Birch multiplex
Finish    Black acrylic enamel
Front grille    2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)    60 x 60,8 x79 cm 23-5/8 x 23-15/16 x 31-7/64"
Weight    56,8 kg / 125,22 lbs
