HK Audio LINEAR 7 118 Sub A Subwoofer - Each - Black
The LINEAR 7 118 Sub A is an extremely powerful yet compact 18-inch subwoofer. Equipped with all the features of the network-compatible LINEAR 7 Series, it delivers phenomenal low-frequency performance in numerous applications.
THE LATEST IN AUDIO TECHNOLOGY
LINEAR 7 is intentionally based on the look and the proven robust mechanics of the LINEAR 5 series, with specific enhancements to the cabinet details. Both technically and acoustically, the LINEAR 7 speaker family represents a completely new development. The latest generation of high-performance speakers and drivers, specially designed horns, high-impulse Pascal Class-D power amplifiers, FIR filtering and the latest, exceptionally high-performance DSP platform with high-resolution converters all make the LINEAR 7 family an acoustically precise tool for demanding applications
CARDIOID IN PRACTICE
While medium and high frequencies are naturally directional, low frequencies are spherical. This often leads to an unpleasant excess of low bass on and behind the stage. An even more serious issue is that it is becoming increasingly common for event organizers to set precise specifications for sound distribution. In the bass range, this can only be achieved with cardioid technology. The 18 Linear 7 Subwoofer therefore meets all the requirements for quickly and easily implementing effective cardioid setups, both mechanically and with the available filter sets.
DSP CONTROL SOFTWARE
Extended remote controlling
Until recently, only the large touring system price category made it possible to control every mid/high unit, every bass and every stage monitor centrally from the FoH position. Now, with the LINEAR 7 range, this modern and highly efficient workflow can also be achieved in top-range professional point sound sources. Every single LINEAR 7 speaker on the network can be accessed centrally via Mac or PC, and its volume, EQ, limiting, delay and polarity can be controlled in detail.
Specifications:
Max. SPL @ 10% THD 129 dB half space (42 Hz 100 Hz averaged)
Max. SPL peak @ 10 % THD 131 dB half space
Frequency response +/-3 dB 42 Hz X-over
Frequency response -10 dB 38 Hz X-over
Power amp output (peak power) 2000 W
Amp type Class D
LF driver 1x 18", 4" voice coil
Maximum input level +20 dBu

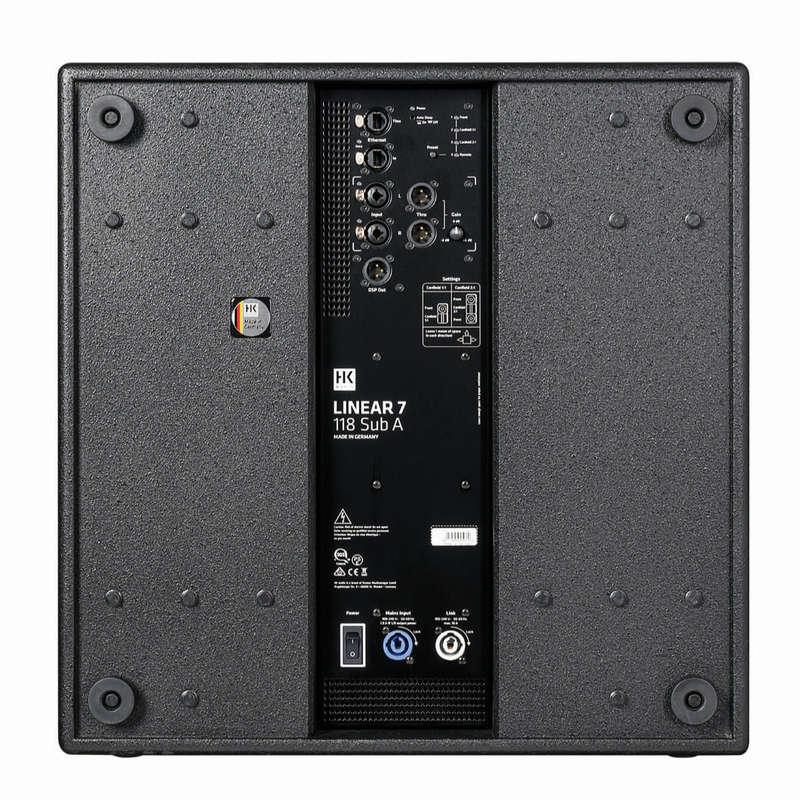

Analog inputs 2x XLR combo balanced
Analog thru 2x XLR balanced
DSP Out 1x XLR
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets Front, Cardioid 1:1, Cardioid 2:1, Remote
Remote software DSP CONTROL (Windows, Mac OS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.6 ms
Mains connector 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100240 V
Power consuption 1.9 A / 100240 V nominal according to EN 62368-1
Pole mount 1x M20

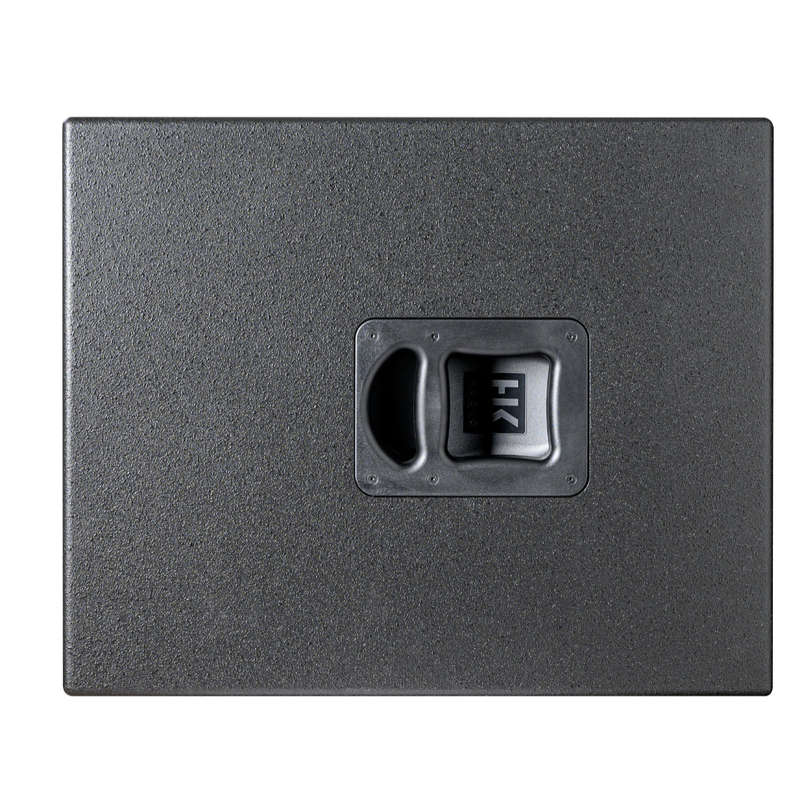

Carrying handles 2x MultiGrip
Housing Birch multiplex
Finish Black acrylic enamel

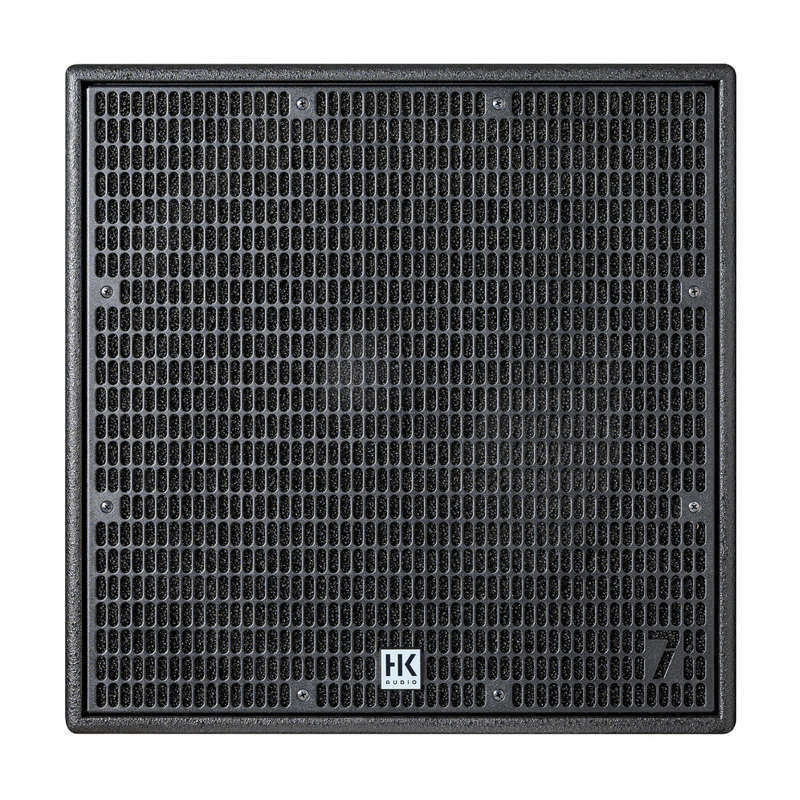

Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 55 x 56 x 69 cm 21-21/32 x 22-3/64 x 27-11/64"
Weight 41 kg / 90.4 lbs
