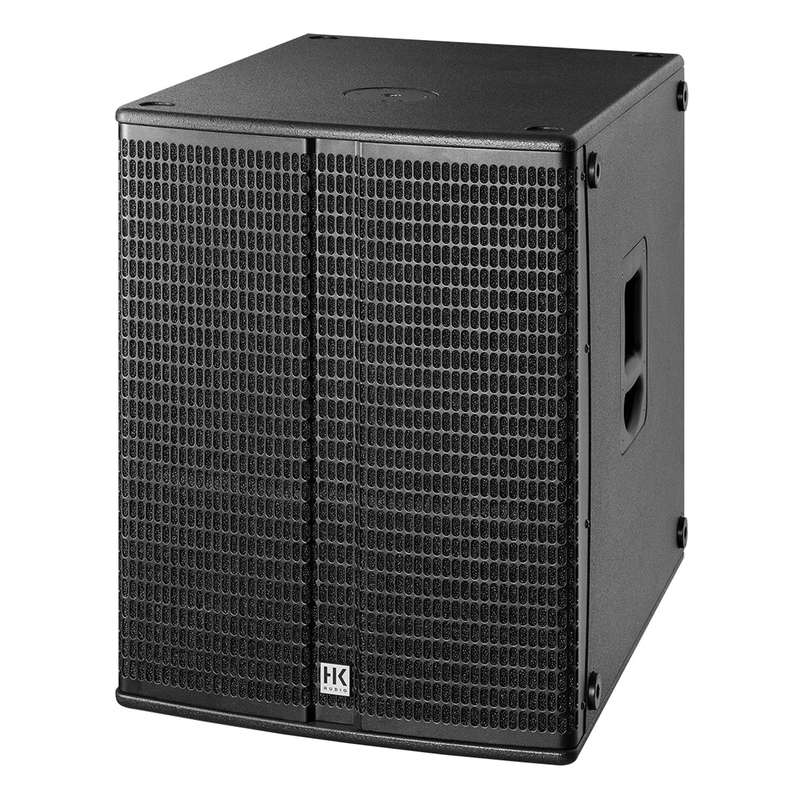

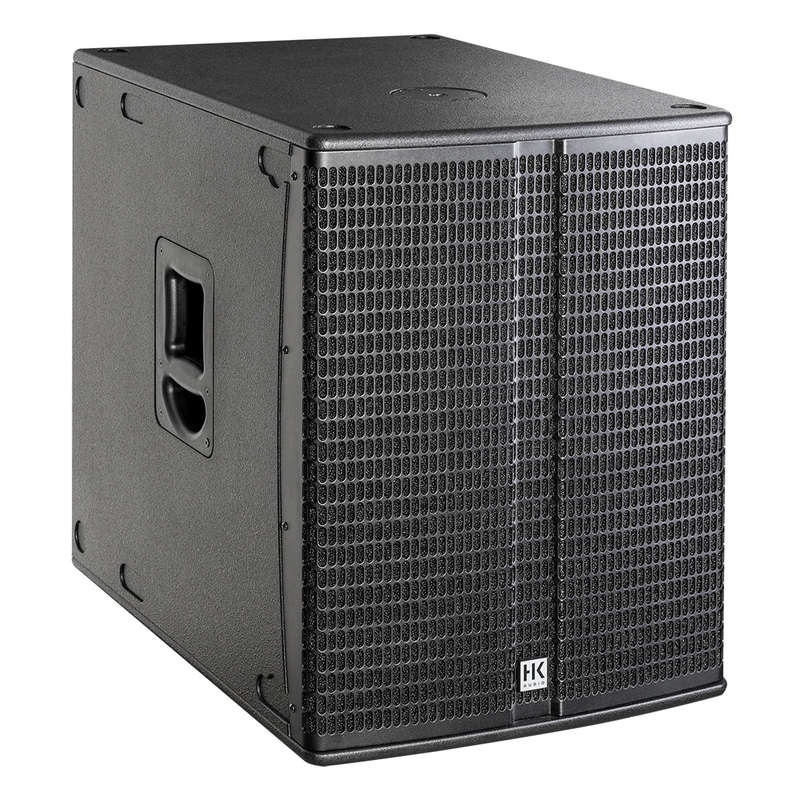

HK Audio LINEAR Sub 1800A Subwoofer - Each - Black
The L SUB 1800 A active 18 subwoofer is designed to be used with the LINEAR 3 mid/high units. It provides even more depth than the 15 version
Advanced DSP technology that can handle any situation with confidence.
No matter where you are or who your sound engineer is, you can achieve brilliant sound results at every performance! Thanks to its DSP filtering that is fine-tuned to listening habits, the LINEAR 3 active speaker system has you covered in a wide range of different performance conditions.
The system is easy to operate from the stage, meaning you can quickly get to grips with the acoustic conditions.
With filter presets, intelligent multiband limiting and FIR separation, you've got all the best prerequisites for getting the most out of your sound. High power reserves and superbly matched components make the robust LINEAR 3 speakers absolute high-end units.
And with its stylish slotted grille design, the LINEAR 3 active speaker series looks as good as it sounds.
Advanced DSP technology Multiband limiter with filter presets
The advanced DSP technology driving LINEAR 3 has one main purpose: to make the job of musicians and DJs easier! LINEAR 3 gives you the ultimate sound in any situation. And it's so simple to use!
An intelligent multiband limiter and filtering of the frequency response in the 'Contour' setting ensure a consistently sweet and assertive sound, from super quiet to really loud.
The multiband limiter monitors and controls the relevant frequency bands separately, only intervening when it is needed. HK Audio's engineers have developed, tested and fine-tuned all the components and options offered by LINEAR 3 for all the relevant applications, working with musicians to optimise them for practical use.
As a result, LINEAR 3 guarantees an impressively effective sound experience, even for semi-professional musicians and DJs who are not dedicated PA specialists.
This gives musicians on stage more room for musical creativity and a top performance.

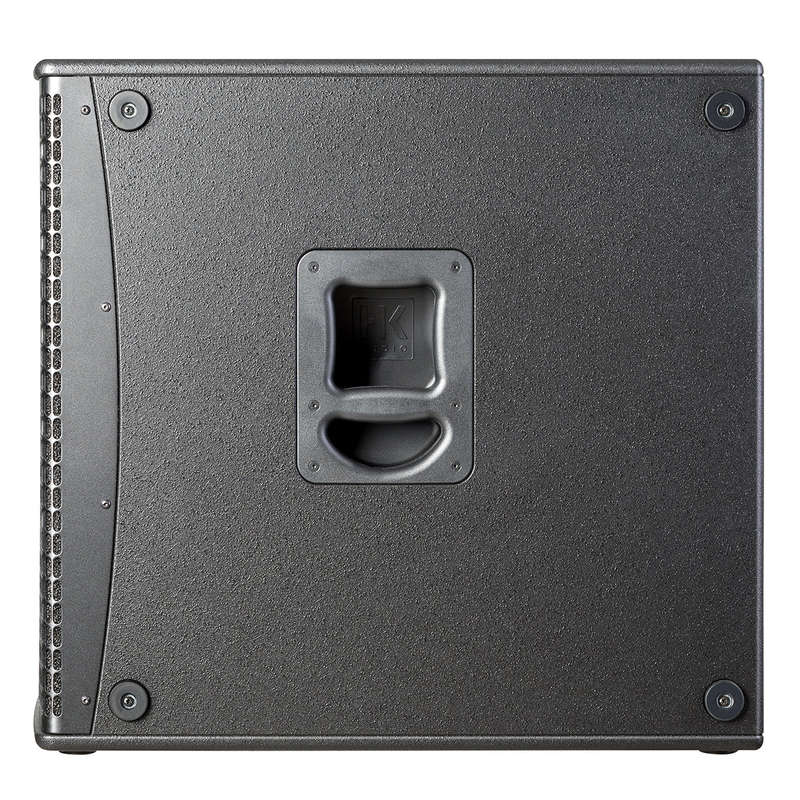

HK Audio MultiGrip
The built-in HK Audio MultiGrips make handling the speakers a breeze and ensure even more safety in every situation. They also allow for professional flying hardware to be fitted. The TB-45N or TB-45NQ tilt brackets can be mounted directly to the MultiGrips on the LINEAR 3 112 FA and LINEAR 3 115 FA models, making them ideal for professional rigging or installation. The models of the LINEAR 3 series have 4 x M8 mounting points and can be flown by mounting AP-8 attachment points, for example.
Specifications:
Max. SPL @ 10% THD 130 dB half space (40 Hz X-Over averaged)
Max. SPL peak @ 10 % THD 132 dB half space
Frequency response +/-3 dB 42 Hz X-Over
Frequency response -10 dB 38 Hz X-Over
Power amp output (peak power) 1200 W
Amp type Class D
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit-Protection, Overcurrent-Protection, Subsonic 24 dB/oct., Peak-Limiter
LF driver 1x 18", 3" voice coil
Active crossover frequency 100 Hz / 120 Hz variable with 24 dB/oct.

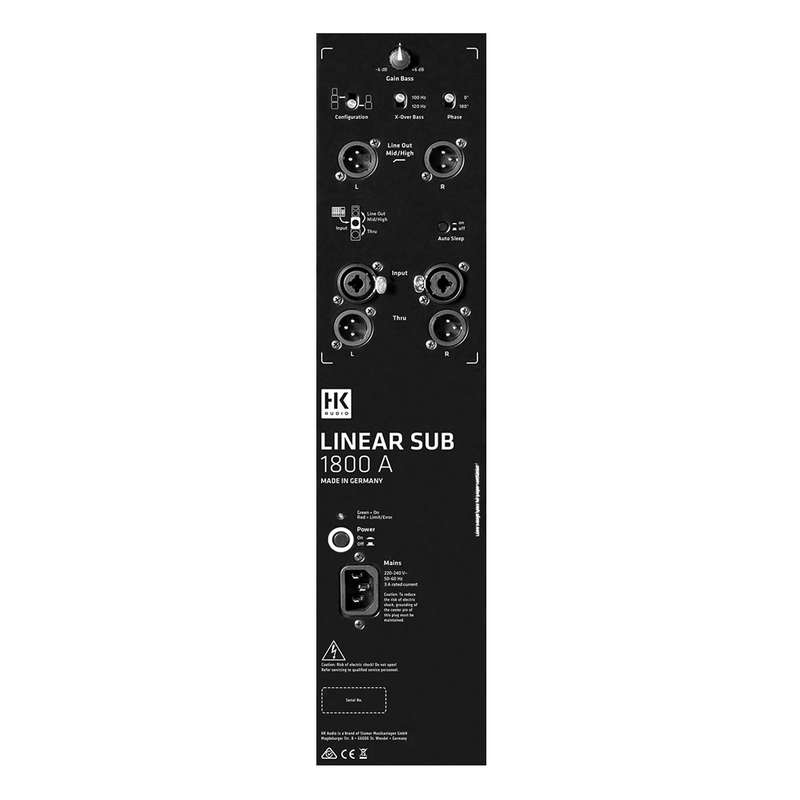

Analog inputs 2x XLR combo balanced
Analog outputs 2x XLR Thru balanced, 2x XLR Mid/High Out
Input sensitivity +4 dBu @ Gain center-notched
Mains connector 1x IEC socket with V-Lock cord retainer
Power consuption 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065
Pole mount 1x M20
Carrying handles 2x MultiGrip
Housing 16 mm MDF
Finish Black acrylic enamel

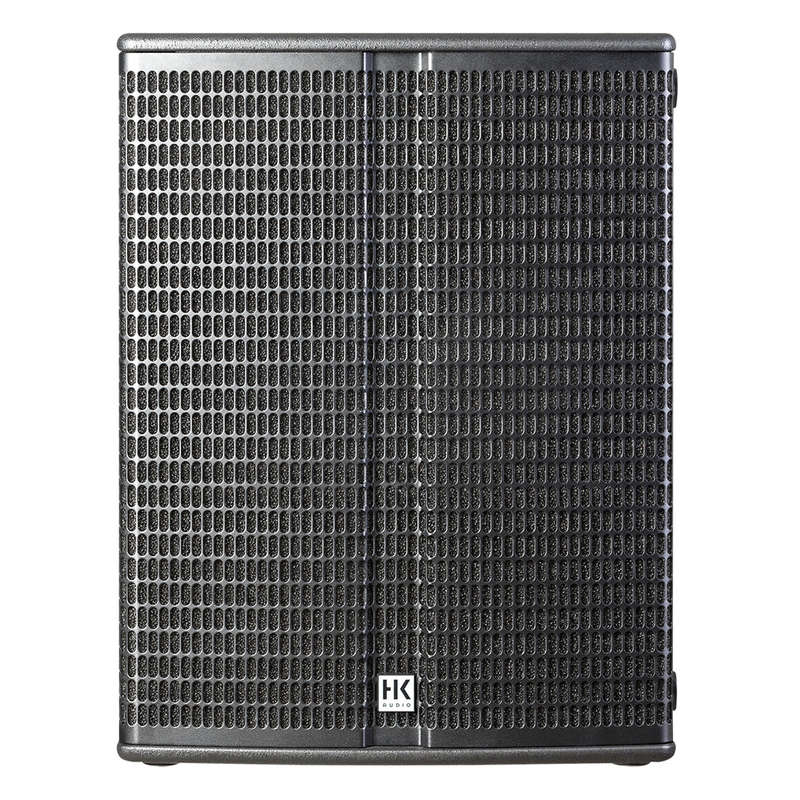

Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 51 x 67 x 72 cm 20-5/64 x 26-3/8 x 28-11/32"
Weight 42 kg / 92.6 lbs
